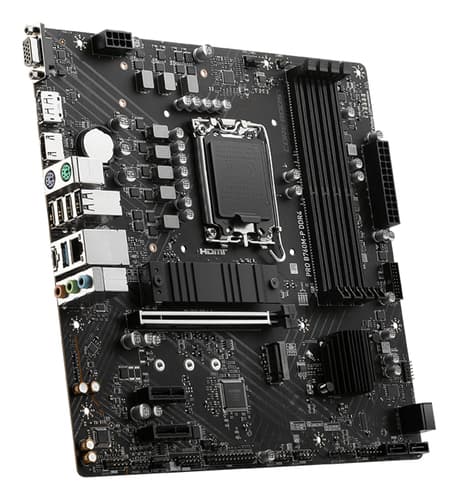

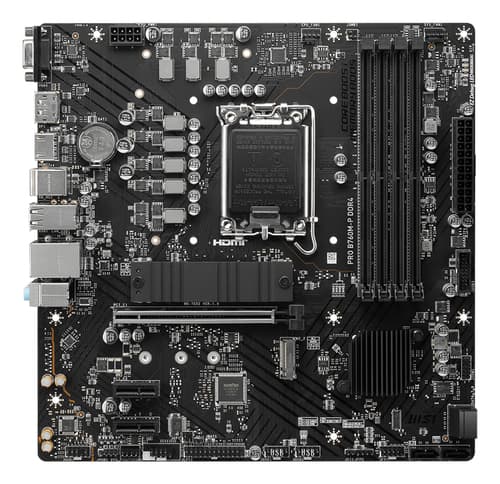

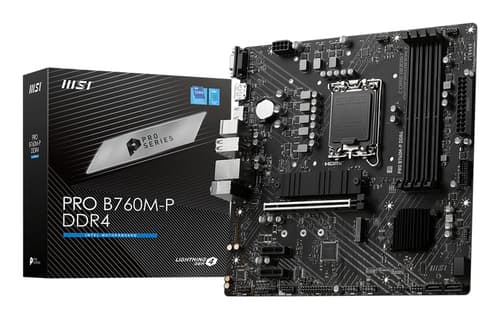

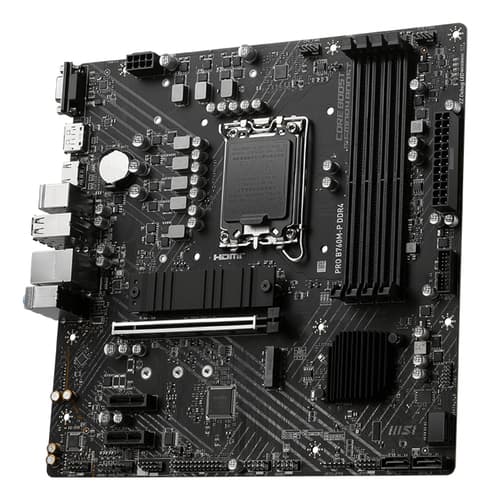

MSI MOBO MBA
- Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Similar Products
Overview
MSI PRO B760M-P DDR4, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, DDR4-SDRAM, 128 GB
Specifications
Internal I/O
- TPM connector
- Yes
- USB 2.0 connectors
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 0
- Number of SATA III connectors
- 4
- Number of SATA II connectors
- 0
- Number of SATA connectors
- 0
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- RGB LED pin header
- Yes
Features
- Motherboard chipset family
- Intel
- Component for
- PC
- Motherboard form factor
- micro ATX
- Motherboard chipset
- Intel B760
- Audio output channels
- 7.1 channels channels
- Audio chip
- Realtek ALC897
- Product colour
- Black
- Power source type
- ATX
- Windows operating systems supported
- Windows 10, Windows 11
Processor
- Processor manufacturer
- Intel
- Processor socket
- LGA 1700
- Compatible processor series
- Intel® Celeron®, Intel® Pentium® Gold
- Maximum number of SMP processors
- 1
- Supported processor sockets
- LGA 1700
Memory
- Supported memory types
- DDR4-SDRAM
- Number of memory slots
- 4
- Maximum internal memory
- 128 GB GB
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- Non-ECC
- Supported memory clock speeds
- 4800, 4600, 4400, 4266, 4200, 4000, 3800, 3733, 3600, 3466, 3400, 3333, 3200, 2933, 2666, 2400, 2133 MHz MHz
- Supported memory clock speed (max)
- 4800 MHz MHz
Storage controllers
- Supported storage drive interfaces
- M.2, SATA III
- RAID support
- Yes
- RAID levels
- 0, 1, 5, 10
Graphics
- On-board graphics card
- No
Rear panel I/O ports
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- VGA (D-Sub) ports quantity
- 0
- HDMI ports quantity
- 1
- DVI-D ports quantity
- 0
- HDMI version
- 1.4
- DisplayPorts quantity
- 1
- DisplayPort version
- 1.4
Network
- Wi-Fi
- No
- Ethernet LAN
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet
Expansion slots
- PCI Express x1 (Gen 3.x) slots
- 2
- PCI Express x16 slots
- 2
- Number of M.2 (M) slots
- 2
BIOS
- BIOS type
- UEFI AMI
- BIOS memory size
- 256 Mbit Mbit
- System Management BIOS (SMBIOS) version
- 3.5
Weight & dimensions
- Width
- 243.8 mm mm
- Depth
- 243.8 mm mm
Other features
- mSATA ports quantity
- 0
