MSI PRODUCTS BAREBONE CASE
- Up to Intel® CoreTM Ultra 7 processor 155H with Intel® AI Boost NPU

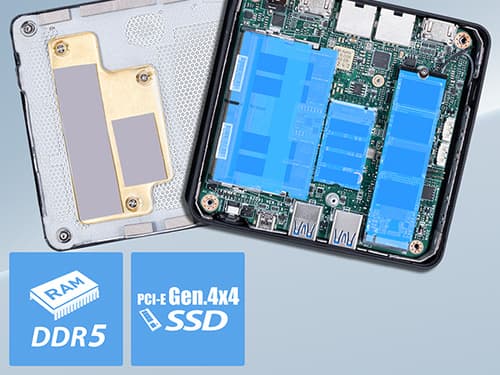

- Supports DDR5 5200MHz memory
- Supports 1x M.2 2280 SSD (PCIE, factory pre-installed), 1x M.2 2242 SSD (PCIE)

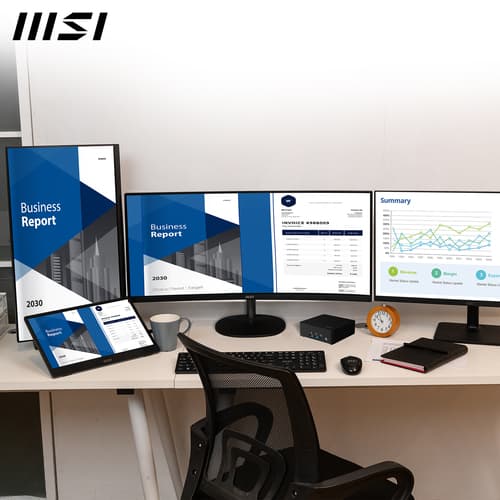

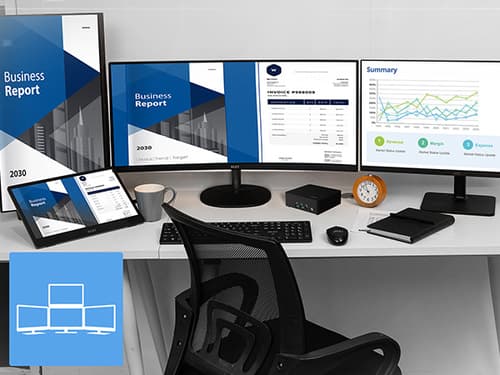

- Quadruple monitor support (Thunderbolt 4, HDMI 2.1)

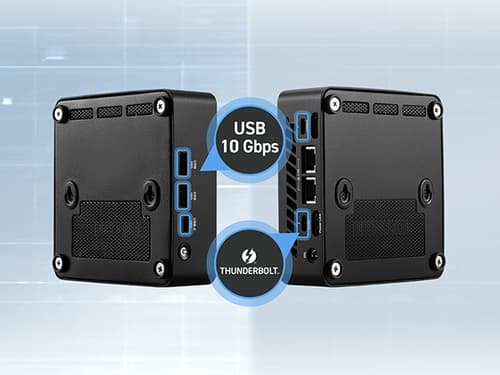

- 1 x USB 10GbpsType-C port front, 2 x USB 10GbpsType-A ports front

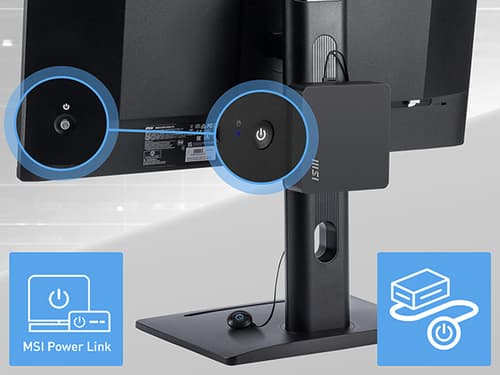

- MSI Power Link support

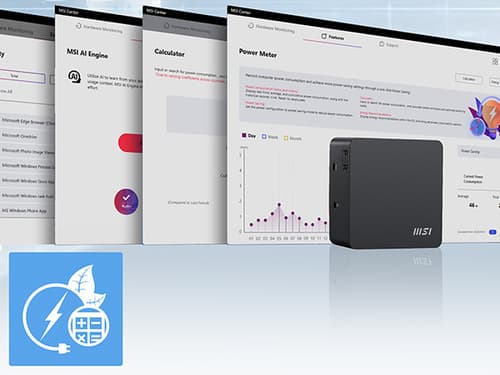

- MSI Power Meter software

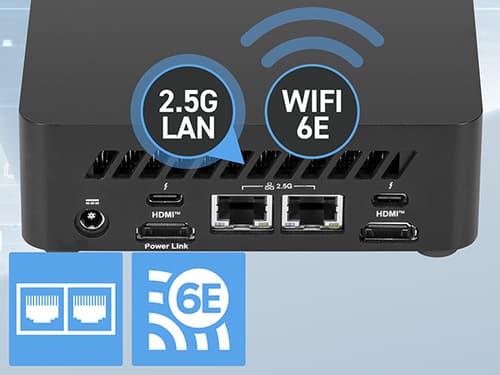

- Dual 2.5G LAN, Wi-fi 6E AX211 & BT 5.3
Similar Products
Overview

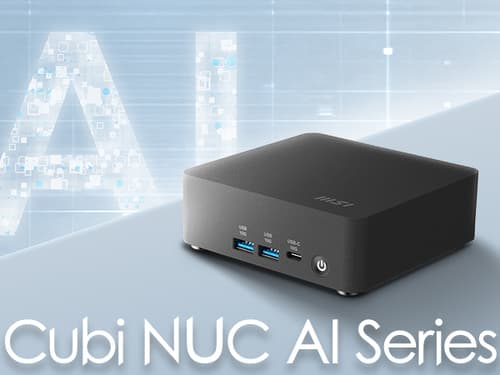

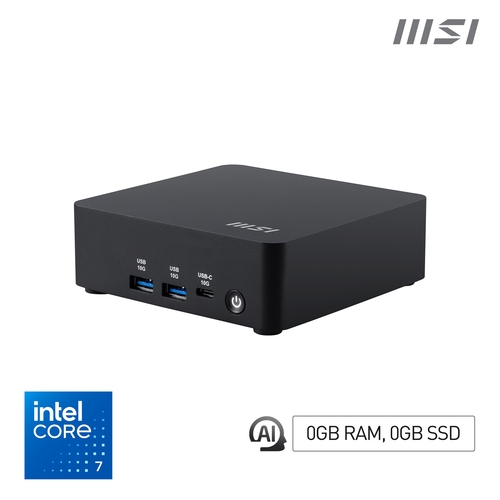

MSI Cubi NUC AI 1UMG Intel Core Ultra 7 155H, Barebone, NUC, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), Intel Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA, Cube, Mini PC barebone, BGA 2049, DDR5-SDRAM, PCI Express, 120 W
Specifications
Storage
- NVMe
- Yes
- Supported storage drive types
- SSD
- Storage drive sizes supported
- M.2 "
- Storage drive interface
- PCI Express
- Number of storage drives supported
- 2
- Card reader integrated
- No
Processor
- Built-in processor
- Yes
- Processor manufacturer
- Intel
- Processor family
- Intel Core Ultra 7
- Processor model
- 155H
- Processor cores
- 16
- Processor threads
- 22
- Processor boost frequency
- 4.8 GHz GHz
- Processor frequency
- 1.4 GHz GHz
- Performance cores
- 6
- Efficient cores
- 8
- Low Power Efficient-cores
- 2
- Performance-core Max Turbo Frequency
- 4.8 GHz GHz
- Efficient-core Max Turbo Frequency
- 3.8 GHz GHz
- Performance-core base frequency
- 1.4 GHz GHz
- Efficient-core base frequency
- 1 GHz GHz
- Low Power Efficient-core Base Frequency
- 800 MHz MHz
- Processor lithography
- 7 nm nm
- Processor cache
- 24 MB MB
- L2 cache
- 12 MB MB
- L3 cache
- 12 MB MB
- Thermal Design Power (TDP)
- 28 W W
- ECC supported by processor
- No
Memory
- Memory slots type
- SO-DIMM
- Number of memory slots
- 2
- Maximum internal memory
- 64 GB GB
- Supported memory clock speeds
- 5200 MHz MHz
- Supported memory types
- DDR5-SDRAM
- Memory channels
- Dual-channel
- Memory bandwidth (max)
- 64 GB/s GB/s
- ECC
- No
- Non-ECC
- No
Audio
- Built-in speaker(s)
- No
Network
- WLAN controller model
- Intel Wi-Fi 6E AX211
- LAN controller
- Intel I226-V
- Bluetooth
- Yes
- Bluetooth version
- 5.2
- Near Field Communication (NFC)
- No
- Bluetooth Low Energy (BLE)
- Yes
- Ethernet LAN
- Yes
- Wi-Fi
- Yes
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- Wi-Fi standards
- Wi-Fi 6E (802.11ax)
Ports & interfaces
- USB 2.0 ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 0
- HDMI ports quantity
- 2
- VGA (D-Sub) ports quantity
- 0
- Ethernet LAN (RJ-45) ports
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- HDMI version
- 2.1
- Thunderbolt ports quantity
- 2
- Thunderbolt 4 ports quantity
- 2
- DC-in jack
- No
Expansion slots
- Number of M.2 (M) slots
- 2
Design
- Chassis type
- Cube
- Product colour
- Black
- Cooling type
- Passive
- Product type
- Mini PC barebone
- On/off switch
- Yes
- VESA mounting
- Yes
- Panel mounting interface
- 100 x 100 mm mm
Performance
- Motherboard form factor
- NUC
- Processor socket
- BGA 2049
- Number of processors supported
- 1
- Supported processor frequency (max)
- 4.8 GHz GHz
- Trusted Platform Module (TPM) version
- 2.0
- Commodity Classification Automated Tracking System (CCATS)
- 740.17B1
- Export Control Classification Number (ECCN)
- 5A992.C
Processor special features
- Intel® vPro™ Platform Eligibility
- No
- Intel On-Demand Power Redundancy Technology
- No
- Intel® High Definition Audio (Intel® HD Audio)
- Yes
- Embedded options available
- No
- Intel Dual Display Capable Technology
- Yes
- Intel® Virtualization Technology (Intel® VT)
- Yes
- Intel Rapid Storage Technology
- Yes
- Intel® Anti-Theft Technology (Intel® AT)
- No
- Intel® AES New Instructions (Intel® AES-NI)
- Yes
- Intel® Quick Sync Video Technology
- Yes
- Intel® InTru™ 3D Technology
- No
- Intel® Insider™
- No
- Intel® Wireless Display (Intel® WiDi)
- No
- Intel FDI Technology
- No
- Intel® Clear Video HD Technology (Intel® CVT HD)
- Yes
- Intel® Turbo Boost Technology
- Yes
- Intel Virtualization Technology for Directed I/O (VT-d)
- Yes
- Intel VT-x with Extended Page Tables (EPT)
- Yes
- Intel 64
- Yes
- Intel® My WiFi Technology (Intel® MWT)
- No
- Idle States
- Yes
- Enhanced Intel SpeedStep Technology
- Yes
- Intel Demand Based Switching
- Yes
- Thermal Monitoring Technologies
- Yes
- Intel Fast Memory Access
- No
- Intel Flex Memory Access
- Yes
- Intel® Identity Protection Technology (Intel® IPT)
- Yes
- Intel Trusted Execution Technology
- No
- Execute Disable Bit
- Yes
- Intel® Smart Cache
- Yes
- Intel Visual BIOS
- No
- Intel Express BIOS update
- No
- Intel® Secure Key
- Yes
- Intel® Smart Response Technology
- No
- Intel Stable Image Platform Program (SIPP)
- No
- Intel® OS Guard
- Yes
- Intel® Hyper Threading Technology (Intel® HT Technology)
- Yes
- Intel TSX-NI
- No
- Intel® Matrix Storage Technology (Intel® MST)
- No
- Intel Smart Connect Technology
- No
- Intel® Hyper Threading Technology (Intel® HT Technology)
- Yes
- Intel® Small Business Advantage (Intel® SBA)
- No
- Intel Virtualization Technology for Directed I/O (VT-d)
- Yes
- Intel® Secure Key
- Yes
- Intel VT-x with Extended Page Tables (EPT)
- Yes
- Intel® Smart Response Technology
- No
- Intel 64
- Yes
- Intel Stable Image Platform Program (SIPP)
- No
- Intel® My WiFi Technology (Intel® MWT)
- No
- Intel® OS Guard
- Yes
- Idle States
- Yes
- Conflict-Free
- Yes
- Enhanced Intel SpeedStep Technology
- Yes
- Intel® Rapid Start Technology
- No
- Intel Demand Based Switching
- Yes
- Intel Advanced Management Technology
- No
- Thermal Monitoring Technologies
- Yes
- Intel Clear Video Technology
- Yes
- Intel Fast Memory Access
- No
- Intel® Unite™
- No
- Intel Flex Memory Access
- Yes
- Intel Unite installed
- No
- Intel® Identity Protection Technology (Intel® IPT)
- Yes
- Intel® Optane™ Memory Ready
- No
- Intel Trusted Execution Technology
- No
- Intel® Platform Trust Technology (Intel® PTT)
- Yes
- Execute Disable Bit
- Yes
- Intel Virtualization Technology (VT-x)
- Yes
- Intel® Smart Cache
- Yes
- Intel Visual BIOS
- No
- Intel Express BIOS update
- No
- Intel TSX-NI
- No
- Intel® Matrix Storage Technology (Intel® MST)
- No
- Intel Smart Connect Technology
- No
- Intel® Small Business Advantage (Intel® SBA)
- No
- Conflict-Free
- Yes
- Intel® Rapid Start Technology
- No
- Intel Advanced Management Technology
- No
- Intel Clear Video Technology
- Yes
- Intel® Unite™
- No
- Intel Unite installed
- No
- Intel® Optane™ Memory Ready
- No
- Intel® Platform Trust Technology (Intel® PTT)
- Yes
- Intel Virtualization Technology (VT-x)
- Yes
Power
- Power supply
- 120 W W
- Number of power supply units
- 1
- Power supply type
- External AC adapter
- AC input voltage
- 100 - 240 V V
- AC input frequency
- 50/60 Hz Hz
- Power supply type
- External AC adapter
- Power supply
- 120 W W
- Number of power supply units
- 1
- AC input voltage
- 100 - 240 V V
- AC input frequency
- 50/60 Hz Hz
Other features
- Country of origin
- China
- Introduction month
- June
- Introduction year
- 2025
- Warranty period
- 3 year(s) year(s)
- Introduction year
- 2025
- Warranty period
- 3 year(s) year(s)
- Country of origin
- China
- Introduction month
- June
Operational conditions
- Operating temperature (T-T)
- 0 - 35 °C °C
- Storage temperature (T-T)
- -20 - 60 °C °C
- Operating relative humidity (H-H)
- 0 - 85% %
- Operating temperature (T-T)
- 0 - 35 °C °C
- Storage temperature (T-T)
- -20 - 60 °C °C
- Operating relative humidity (H-H)
- 0 - 85% %
- Storage relative humidity (H-H)
- 0 - 90% %
- Storage relative humidity (H-H)
- 0 - 90% %
Packaging content
- Drivers included
- No
- Display included
- No
- Power cord included
- Yes
- AC adapter included
- No
- Quick start guide
- No
- Drivers included
- No
- Display included
- No
- Mouse included
- No
- Keyboard included
- No
- Quick start guide
- No
- Mouse included
- No
- Keyboard included
- No
- Power cord included
- Yes
- AC adapter included
- No
Technical details
- PSTI certified
- No
- Not classified as hazardous under GHS
- No
- PSTI certified
- No
- Not classified as hazardous under GHS
- No
Certificates
- Waste Electrical and Electronic Equipment (WEEE) compliance
- Yes
- Waste Electrical and Electronic Equipment (WEEE) compliance
- Yes
Software
- Windows operating systems supported
- Yes
- Linux operating systems supported
- Yes
- Operating system installed
- No
- Windows operating systems supported
- Yes
- Linux operating systems supported
- Yes
- Operating system installed
- No

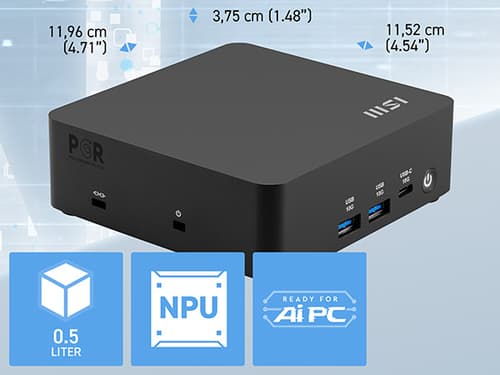

Weight & dimensions
- Width
- 119.6 mm mm
- Depth
- 115.2 mm mm
- Height
- 37.5 mm mm
- Package width
- 205 mm mm
- Package depth
- 220 mm mm
- Package height
- 94 mm mm
- Width
- 119.6 mm mm
- Depth
- 115.2 mm mm
- Height
- 37.5 mm mm
- Package width
- 205 mm mm
- Package depth
- 220 mm mm
- Package height
- 94 mm mm
What our clients say
Verified customer reviews
Collected independently on VouchRateKaydron is excellent!
Really starting to transform my business to where I want it to be 😄
Apaxon replied: Thank you so much for the fantastic review! 😄 It’s been a pleasure working with you and seeing the business take shape. I’m really glad we’re helping move things in the direction you’ve been aiming for, and there’s plenty more to come! Thanks again for your trust and support — it’s genuinely appreciated! — Kadron
Efficient and reliable
Purchased an Apple product, was cautious initially as not used this site before but it arrived the next day even though courier left it on door step. will definitely recommend Apaxon!
Apaxon replied: Thank you so much for your review! We completely understand being cautious when trying a new website, so it’s great to hear that we could make a good first impression. We’re delighted your Apple product arrived the next day and that you were happy with the service. We really appreciate your recommendation and hope to welcome you back to Apaxon again soon! 😊
Great Company to deal with.
Great job by Kadron and the team. Definitely recommend for IT services
Apaxon replied: Thank you for the fantastic review! It’s been a pleasure supporting Mitsiland. We really appreciate your trust in us and are always happy to help keep everything running smoothly. We look forward to continuing to support you and the team! 👍
Brilliant company
Apaxon Limited provide an excellent service to my business. Very knowledgeable and always responsive. Any IT issue that arises is always swiftly solved by the team at Apaxon
Apaxon replied: Thank you for this thoughtful review :-)
Apaxon®'s IT solutions have optimised our operations and significantly boosted our productivity. The team's reliable support and expertise have been genuinely invaluable to our business.
Apaxon®'s support has been excellent across every interaction. Their responsiveness and attention to detail make our daily operations much easier and more reliable to manage.
With Apaxon®'s help, our security posture and operational efficiency have greatly improved. We now have complete confidence in our IT infrastructure and the people behind it.
Apaxon®'s customer service has exceeded every expectation. Their prompt, professional support has been crucial for maintaining business continuity and keeping our team productive.
I approached Kadron after a friend recommended him, having used him for their own business. I'm so glad I did! 😃 He is simply transforming my business and taking it exactly where it needs to be. He's incredibly patient with me and all of my ideas 😂, really listens to what I want, and somehow manages to bring it all together. I couldn't recommend him highly enough!
via GoogleKadron is amazing, he has helped our business and done a full make over on our websites. Kadron has also shared his knowledge and provided the information I need in great detail, is always on standby to assist and is fast at acting upon any tasks I throw at him. It's been a great pleasure, and have built a lovely business relationship for all our needs.
Also for Just Fountainsvia Google
Kadron's service is second to none… I will forever be indebted to him for how he has gone above & beyond to help me with my website & business in general. Thank you Kadron.
via GoogleTestimonials from Apaxon® IT, web and support clients, including verbatim Google reviews. They describe our service, not this product.
Similar Products
We Don’t Just Sell ItWe Support the Business Around It
Most people who buy hardware from us never find out that the same team runs managed IT, cloud and security for UK businesses. That side is contracted work rather than a one-off call-out — so if you are fitting out a company rather than replacing a single laptop, it is worth a conversation.
Managed IT Services
Monitoring, patching and an SLA-backed helpdesk under a monthly contract. Remote first, with on-site support where the contract provides for it.
Learn moreCybersecurity Services
Hardening, firewall management and vulnerability scanning — plus Cyber Essentials certification support. We are certified ourselves.
Learn moreManaged Cloud Services
Microsoft 365 and Azure provisioning, migration and management, with hybrid architecture where keeping hardware on site makes sense.
Learn moreProfessional Services
IT strategy, infrastructure reviews, procurement strategy and project management — the work that decides what to buy, and in what order, before anyone buys it.
Learn moreStay Up to Datewith the Latest Thinking
Expert guides, sector insights and technology news from the Apaxon® team.
“Will It Fit?” Why AR Sells Large Products Better Than Photos
There is one question a product photograph cannot answer, and it is the question that stops people buying expe...
Read Article
What Augmented Reality Actually Costs a Business
Most quotes for augmented reality are hard to compare because they bundle three different things together. It ...
Read Article
Adding a 3D and AR Product Viewer to the Website You Already Have
The two assumptions that stop most businesses looking at augmented reality are that customers would need an ap...
Read Article
From CAD to Web 3D: Using STEP, SolidWorks and Revit Files for AR
The cost of augmented reality is not the software or the website work. It is producing a 3D model of each prod...
Read Article
