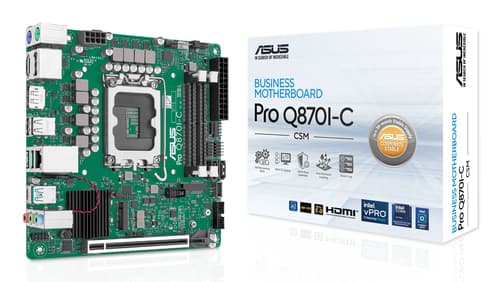

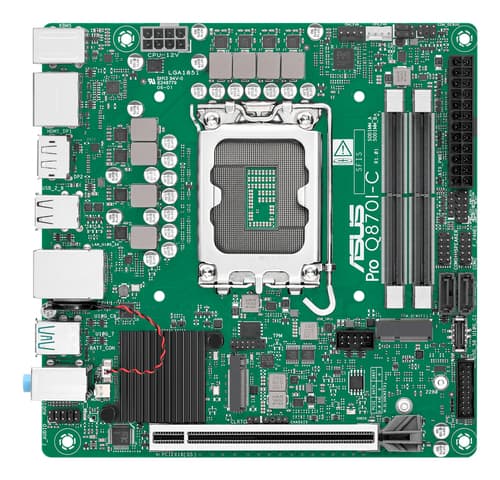

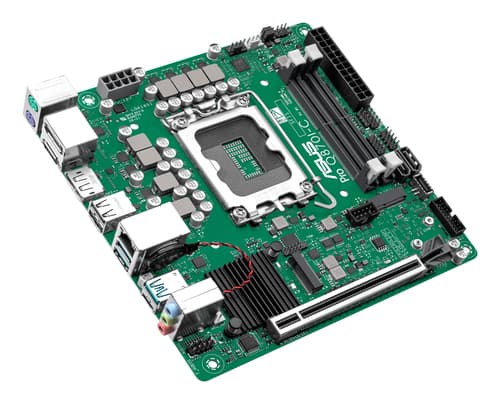

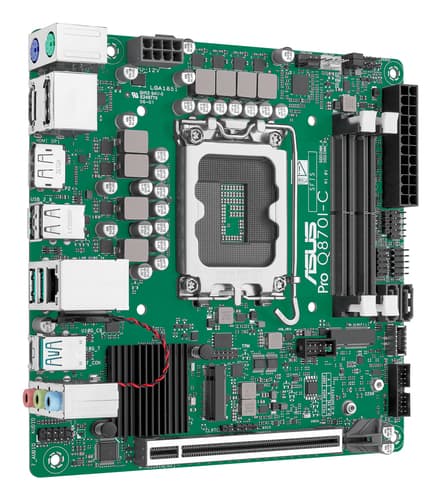

PRO Q870I-C-CSM
- Efficient Management and Customization: An event log and commercial BIOS kit to enable easy maintenance
- Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Better Serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
- DIY Friendly Design: SafeSlot, Dual DIMM clips, Box headers
- ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- Consistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (Series 2)
- Enhanced System Security: Boot defender with NIST SP800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
- Ultrafast Connectivity: PCIe 5.0, DDR5 SO-DIMM slots , rear and front USB 10Gbps Type-C®
Similar Products
Overview
ASUS PRO Q870I-C-CSM, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), DDR5-SDRAM, 128 GB, SO-DIMM
Specifications
Internal I/O
- USB 2.0 connectors
- 1
- EPS power connector (8-pin)
- Yes
- Number of chassis fan connectors
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- Number of SATA III connectors
- 2
- Front panel audio connector
- Yes
- 12V power connector
- Yes
- Number of CPU fan connectors
- 1
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Number of COM connectors
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
Network
- Wi-Fi
- No
- Ethernet LAN
- Yes
- Ethernet interface type
- Fast Ethernet, Gigabit Ethernet
- LAN controller
- Intel WGI219LM
Features
- Motherboard chipset family
- Intel
- Motherboard chipset
- Intel® Q870
- Component for
- PC
- Motherboard form factor
- mini ITX
- Audio output channels
- 7.1 channels channels
- Windows operating systems supported
- Windows 10 x64, Windows 11
- Product colour
- Multicolour
Packaging data
- Package weight
- 640 g g
- Package width
- 230 mm mm
- Package depth
- 185 mm mm
- Package height
- 60 mm mm
BIOS
- BIOS memory size
- 256 Mbit Mbit
Weight & dimensions
- Height
- 50 mm mm
- Width
- 170 mm mm
- Depth
- 170 mm mm
Other features
- Weight
- 405 g g
Expansion slots
- PCI Express x16 (Gen 5.x) slots
- 1
- Number of M.2 (M) slots
- 1
Memory
- ECC сompatibility
- Non-ECC
- Number of memory slots
- 2
- Maximum internal memory
- 128 GB GB
- Unbuffered memory
- Yes
- Supported memory types
- DDR5-SDRAM
- Supported memory clock speed (max)
- 6400 MHz MHz
- Memory slots type
- SO-DIMM
- Memory channels
- Dual-channel
Storage controllers
- Supported storage drive interfaces
- M.2, SATA III
- Number of storage drives supported
- 3
- Number of HDDs supported
- 2
- Supported storage drive types
- HDD & SSD
Graphics
- Parallel processing technology support
- Not supported
Processor
- Processor socket
- LGA 1851 (Socket V1)
- Compatible processor series
- Intel Core Ultra (Series 2)
- Processor manufacturer
- Intel
Rear panel I/O ports
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 0
- PS/2 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 3
- Microphone in
- Yes
- USB 2.0 ports quantity
- 2
- DVI-D ports quantity
- 0
- DisplayPorts quantity
- 2
- VGA (D-Sub) ports quantity
- 0
- HDMI ports quantity
- 1
