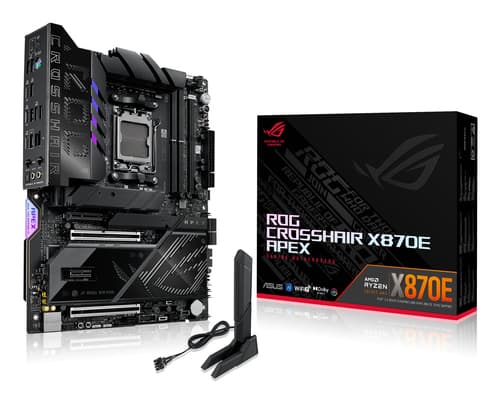

ASUS ROG CROSSHAIR X870E APEX - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB4, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2 - Wi-Fi 7, Bluetooth, 5 Gigabit Ethernet - onboard graphics (CPU required) - HD Audio (8-channel)
Thumbnail 0

ASUS ROG CROSSHAIR X870E APEX - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB4, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2 - Wi-Fi 7, Bluetooth, 5 Gigabit Ethernet - onboard graphics (CPU required) - HD Audio (8-channel)

Manuf P/N: 90MB1KR0-M0EAY0
APAXON#: 11783519
EAN: 4711387890240
ASUS ROG CROSSHAIR X870E APEX - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB4, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2 - Wi-Fi 7, Bluetooth, 5 Gigabit Ethernet - onboard graphics (CPU required) - HD Audio (8-channel)
  • AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • PC ATX AMD X870E 7.1 channels
  • DDR5-SDRAM 2 DIMM Maximum internal memory: 128 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 9
  • BIOS type: UEFI AMI 512 Mbit
  • 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Stock10
Price £507.22
Quantity
|

Product Summary

ASUS ROG CROSSHAIR X870E APEX AMD X870E Socket AM5 ATX

Extended Specification

Group 1382
Processor manufacturer
AMD
Processor socket
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets
Socket AM5
Group 1020
Supported memory types
DDR5-SDRAM
Number of memory slots
2
Maximum internal memory
128 GB
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC
Unbuffered memory
Yes
Group 27949
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of storage drives supported
9
RAID support
Yes
RAID levels
0, 1, 5, 10
Group 11085
Parallel processing technology support
Not supported
On-board graphics card
No
Group 2207
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
USB 3.2 Gen 2x2 connectors
2
Number of SATA II connectors
0
Number of SATA connectors
0
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
2
EPS power connector (8-pin)
Yes
12V power connector
Yes
RGB LED pin header
Yes
Number of RGB LED pin headers
3
Group 2206
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
1
VGA (D-Sub) ports quantity
0
HDMI ports quantity
0
DVI-D ports quantity
0
USB4 Gen 3x2 ports quantity
2
PS/2 ports quantity
1
S/PDIF out port
Yes
WiFi-AP antenna jack
1
Group 2764
Wi-Fi
Yes
Ethernet LAN
Yes
Ethernet interface type
5 Gigabit Ethernet
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be)
Bluetooth
Yes
Bluetooth version
5.4
Group 13324
Component for
PC
Motherboard form factor
ATX
Motherboard chipset family
AMD
Motherboard chipset
AMD X870E
Audio output channels
7.1 channels
Product colour
Black
Windows operating systems supported
Windows 11
Group 4189
PCI Express x1 (Gen 3.x) slots
1
PCI Express x4 (Gen 4.x) slots
1
PCI Express x16 (Gen 4.x) slots
2
PCI Express x16 (Gen 5.x) slots
2
Number of M.2 (M) slots
5
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
2280
2nd M.2 highest PCI Express generation
5.0
3rd M.2 largest key size
2280
3rd M.2 highest PCI Express generation
5.0
4th M.2 largest key size
22110
4th M.2 highest PCI Express generation
4.0
5th M.2 largest key size
22110
5th M.2 highest PCI Express generation
4.0
Group 4754
BIOS type
UEFI AMI
BIOS memory size
512 Mbit
Group 72243
Package width
370 mm
Package depth
312 mm
Package height
108 mm
Package weight
4.16 kg
Group 1019
Width
305 mm
Depth
244 mm
Group 4753
Cables included
SATA
Antenna included
Yes
Screws included
Yes
Drivers included
Yes
Group 7333
mSATA ports quantity
0
