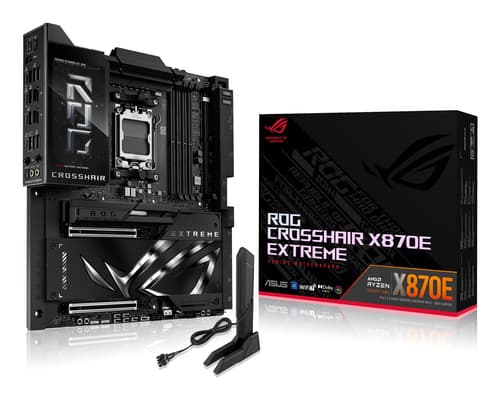

ROG CROSSHAIR X870E EXTREME
Manuf P/N: 90MB1LB0-M0EAY0
APAXON#: 11783526
EAN: 4711387984963
ROG CROSSHAIR X870E EXTREME
- AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- PC Extended ATX AMD X870E Realtek ALC4082 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
- HDD & SSD M.2, SATA III, SlimSAS RAID support Number of storage drives supported: 10
- BIOS type: UEFI AMI 512 Mbit
- 5 Gigabit Ethernet, 10 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Stock20
Price £0.00
Quantity
|
Similar Products
ROG CROSSHAIR X870E EXTREME
Your Choice
English
United Kingdom
1
Personal computer
M.2, SATA III, SlimSAS
Stock
20
£0.00

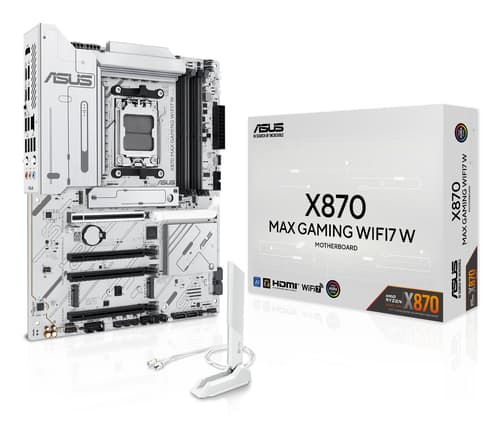

X870 MAX GAMING WIFI7 W
Better
English
United Kingdom
1
Personal computer
PCI Express 4.0, PCI Express 5.0, SATA III
Stock
0
£0.00
Product Summary
ASUS ROG CROSSHAIR X870E EXTREME AMD X870E Socket AM5 Extended ATX
Extended Specification
Group 1382
Processor manufacturer
AMD
Processor socket
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets
Socket AM5
Group 1020
Supported memory types
DDR5-SDRAM
Number of memory slots
4
Maximum internal memory
256 GB
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC
Unbuffered memory
Yes
Group 27949
Supported storage drive interfaces
M.2, SATA III, SlimSAS
Supported storage drive types
HDD & SSD
Number of storage drives supported
10
RAID support
Yes
RAID levels
0, 1, 5, 10
Group 11085
Parallel processing technology support
Not supported
Group 2207
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Number of SATA III connectors
4
USB 3.2 Gen 2x2 connectors
1
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
2
EPS power connector (8-pin)
Yes
12V power connector
Yes
RGB LED pin header
Yes
Group 2206
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
8
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
Ethernet LAN (RJ-45) ports
2
VGA (D-Sub) ports quantity
0
HDMI ports quantity
1
DVI-D ports quantity
0
USB4 Gen 3x2 ports quantity
2
PS/2 ports quantity
1
S/PDIF out port
Yes
WiFi-AP antenna jack
1
Group 2764
Wi-Fi
Yes
Ethernet LAN
Yes
Ethernet interface type
5 Gigabit Ethernet, 10 Gigabit Ethernet
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be)
Bluetooth
Yes
Bluetooth version
5.4
Group 13324
Component for
PC
Motherboard form factor
Extended ATX
Motherboard chipset family
AMD
Motherboard chipset
AMD X870E
Audio output channels
7.1 channels
Audio chip
Realtek ALC4082
Windows operating systems supported
Windows 11
Group 4189
PCI Express x16 (Gen 4.x) slots
2
PCI Express x16 (Gen 5.x) slots
2
Number of M.2 (M) slots
5
1st M.2 largest key size
22110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
2280
2nd M.2 highest PCI Express generation
5.0
3rd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
5.0
4th M.2 largest key size
22110
4th M.2 highest PCI Express generation
4.0
5th M.2 largest key size
22110
5th M.2 highest PCI Express generation
4.0
Group 4754
BIOS type
UEFI AMI
BIOS memory size
512 Mbit
Group 72243
Package width
380 mm
Package depth
320 mm
Package height
125 mm
Package weight
5.66 kg
Group 1019
Width
305 mm
Depth
277 mm
Group 4753
Cables included
SATA
Antenna included
Yes
Drivers included
Yes
