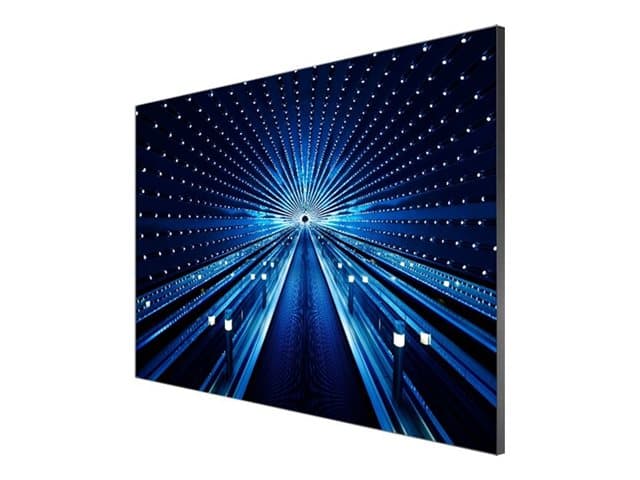

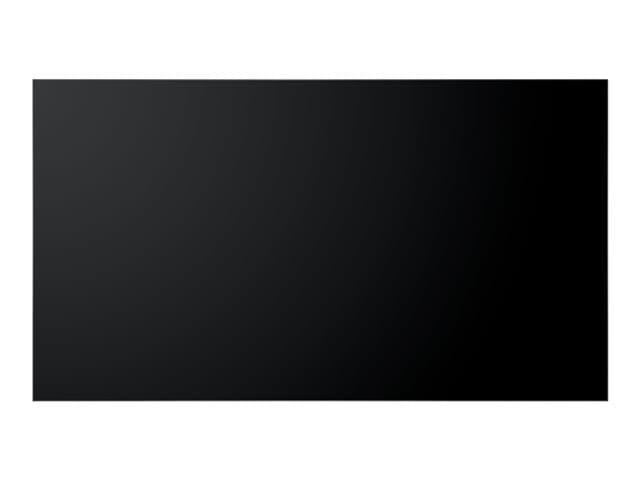

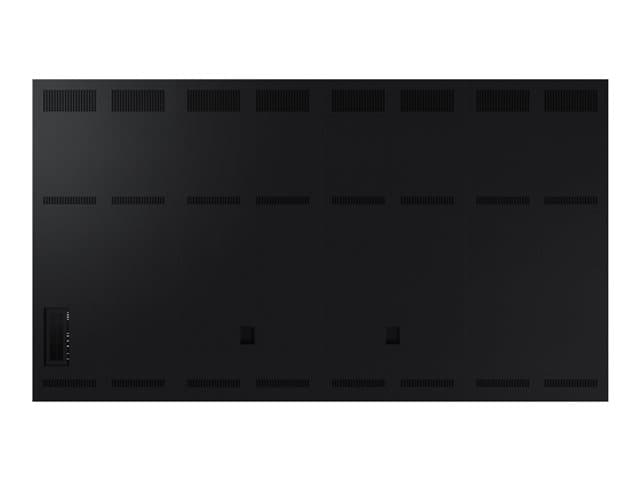

Samsung The Wall All-In-One IAB 146 4K IAB Series LED video wall - for digital signage
IAB Series LED video wall
digital signage
Tizen OS
3840 x 2160 146"
Flip-chip RGB LED
HDR
Weight: 400.00 KG
- Deeper black color and contrast
- Vivid, vibrant color purity
- AI optimized visuals
- Accurate color mapping and grayscale expression
- Advanced picture refinement and dynamic range
- Smooth, judder-free visuals
- Installation within 2 hours for 2 people
- Auto configuration setup
Similar Products
Samsung SH37C - 37" Diagonal Class SHC Series LED-backlit LCD display - digital signage - Tizen OS 1920 x 540 - black
Samsung QB50C - 50" Diagonal Class QBC Series LED-backlit LCD display - digital signage - Tizen OS - 4K UHD (2160p) 3840 x 2160
Samsung QB65C - 65" Diagonal Class QBC Series LED-backlit LCD display - digital signage - Tizen OS - 4K UHD (2160p) 3840 x 2160
Samsung QM43C QMC Series - 43" LED-backlit LCD display - Crystal UHD - 4K - for digital signage
Overview
Innovation is never static. To strive for perfection requires a constant pursuit of greatness. To inspire and captivate with unrivaled experiences. The Wall is the epitome of innovation. It constantly delivers new avenues to create unparalleled visual statements. Redefining the LED paradigm once again, The Wall now solves the biggest industry challenge, drastically improving installation. The Wall, let it transform your business.
Main Specifications
- TV Tuner
- No tuner
- Picture Enhancements
- Dynamic Peaking Technology, AI Picture, Black Seal Technology, Ultra Chroma Technology
- Speaker System
- 2 channel
- Video Wall Display Unit
- Flip-chip RGB LED
- USB
- 2 ports
- Included Accessories
- Remote control, frame kit, decor frame, 18 modules, T-Con, SMPS
- Voltage
- AC 100-240 V (50/60 Hz)
- Dimensions (WxDxH)
- 322.56 cm x 4.9 cm x 181.44 cm
- Weight
- 168 kg
- Product Description
- Samsung The Wall All-In-One IAB 146 4K IAB Series LED video wall - for digital signage
- Product Type
- LED video wall
- Diagonal Size
- 146"
- Commercial Use
- Yes - digital signage
- Video Wall Configuration
- 16x12
- Platform
- Tizen OS
- Video Wall Resolution
- 3840 x 2160
- HDR Format
- HDR10, HDR10+
- HDR Technology
- LED HDR, Micro HDR
- Frame Rate & Enhancement Technology
- 100 Hz Refresh Rate, 120 Hz Refresh Rate, 3840 Hz Refresh Rate, 50-60 Hz Refresh Rate, Micro Motion
- Video Interface
- HDMI
- HDMI Ports Qty
- 3 ports
- Connectivity
- Wi-Fi, LAN, Bluetooth
- PC Interface
- DisplayPort
Associated Documents
Product Features
Black Seal technology
A deep black background blankets the screen with accurate uniformity, creating a seamless canvas for purer black levels with enhanced depth that delivers unparalleled contrast and immaculate detail.
Ultra Chroma technology
Colors leap to life with spectacular vibrancy to recreate scenes as if you were there in real life. Narrower wavelengths produce RGB colors two times purer and more accurate than conventional LEDs.
Built-in control box
Time-consuming configuration between control box and cabinet is no longer needed. The Wall All-In-One integrates the control box so it's built-into the display, eliminating a cumbersome configuration process to get the display up and running faster.
No extra peripherals needed
The Wall All-In-One includes everything you need to begin using the display - from the control box and wall brackets to speakers and deco bezels. No additional purchases or components are required, allowing you to focus on getting your display up and running fast.
20bit processing
The Wall All-In-One offers 20bit processing to present accurate color mapping with faultless accuracy. Deeper bit depth at low grayscale also delivers extraordinary contrast ratio and smooth, natural tones.
Linear grayscale
A precise linear grayscale showcases intricacies in every scene, delivering textures, volume, and continuous shadow details. The elevated continuity pulls you further into your content for unbroken immersion.
Instant AI optimization
Every second of content is instantly analyzed and optimized for perfect picture quality. The powerful AI processor delivers superior visuals, enhancing contrast and removing noise.
Dazzling dynamic range
Reimagine the limits of conventional screens with advanced picture refinement - HDR10/10+ and LED HDR - to illuminate ideal peak brightness and contrast in every scene for precise, true-to-life imagery.
Smooth, seamless motion
Every motion becomes sharper, with greater clarity. The Wall All-In-One automatically converts standard 60Hz signals to 120Hz, removing motion judder in fast-paced action for smoother streams and a seamless viewing experience, every time.
What's in the box
Samsung The Wall All-In-One IAB 146 4K, Remote control, Frame kit, decor frame, 18 modules, T-Con, SMPS
Specifications
Display
- Display technology
- LED
- Pixel pitch
- 0.84 x 0.84 mm
- Display brightness
- 1600 cd/m²
- Display diagonal
- 3.71 m (146")
- Display resolution
- 3840 x 2160 pixels
- HD type
- 4K Ultra HD
- Colour temperature (min)
- 2800 K
- Colour temperature (max)
- 10000 K
- Contrast ratio (typical)
- 24000:1
- Native refresh rate
- 3840 Hz
- High Dynamic Range (HDR) supported
- Yes
- High Dynamic Range (HDR) technology
- High Dynamic Range 10 (HDR10)
- Viewing angle, horizontal
- 170°
- Viewing angle, vertical
- 155°
- Colour depth
- 16 bit
- Panel life
- 150000 h
Design
- Placement supported
- Indoor
- Orientation
- Horizontal
- International Protection (IP) code
- IP20
- Product colour
- Black
- Operating system installed
- Tizen 6.0

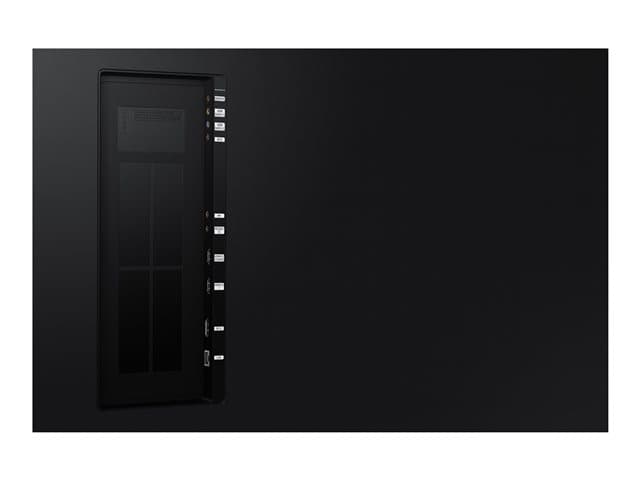

Ports & interfaces
- HDMI ports quantity
- 3
- DisplayPorts quantity
- 1
- Wi-Fi
- Yes
- Bluetooth
- Yes
- USB port
- Yes
- USB ports quantity
- 2
Power
- Power consumption (typical)
- 1100 W
- AC input voltage
- 100-240 V
- AC input frequency
- 50-60 Hz
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 45 °C
- Operating relative humidity (H-H)
- 10 - 80%
- Storage relative humidity (H-H)
- 5 - 95%
Sustainability
- Certification
- TÜV Low Blue Light, 62368-1, 60950-1, EMV
Weight & dimensions
- Width
- 3225 mm
- Depth
- 49.5 mm
- Height
- 1814.4 mm
- Weight
- 168 kg
Packaging data
- Package width
- 2000 mm
- Package depth
- 1000 mm
- Package height
- 2162 mm
- Package weight
- 301 kg
