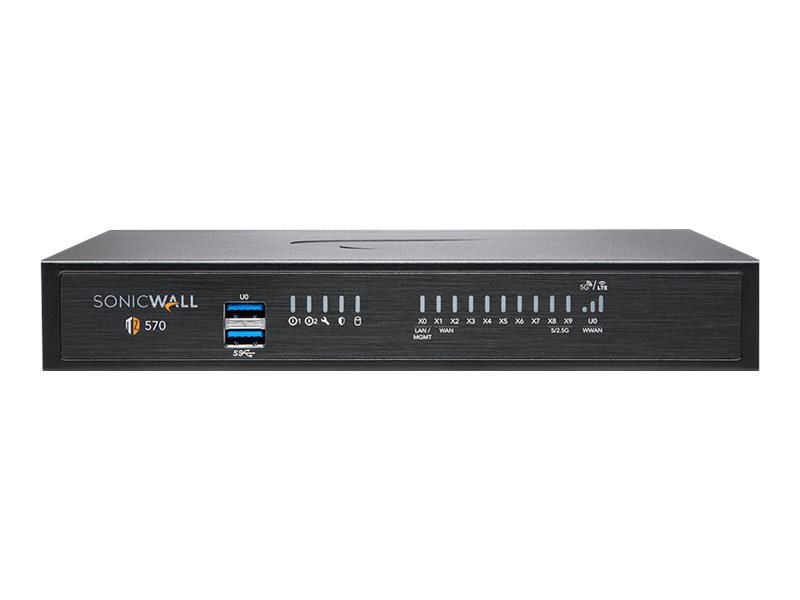

SonicWall TZ Series (Gen 7) TZ570
Security appliance
with 3 years Essential Protection Service Suite and Cloud Secure Edge for 1 year SIA-Basic (20 users) and 1 year SPA-Advanced (6 users)
1GbE, 5GbE
SonicWall Promotional Tradeup
desktop
Weight: 1.82 KG
- SD-Branch ready
- Secure SD-WAN capability
- Zero-touch deployment
- Single-pane-of-glass-management through cloud or firewall
- Built-in and expandable storage
- Redundant power
- High port density
- Cellular failover
- TLS 1.3 support
- Groundbreaking performance
- High connection count
- Fast DPI performance
- Low TCO
Overview
Designed for small to mid-sized organizations and distributed enterprise with SD-Branch locations, the TZ570 series deliver industry-validated security effectiveness with great price-performance.
Main Specifications
- Bundled Services
- 3 years Essential Protection Service Suite and Cloud Secure Edge for 1 year SIA-Basic (20 users) and 1 year SPA-Advanced (6 users)
- Form Factor
- Desktop
- Data Link Protocol
- Gigabit Ethernet, 5 Gigabit Ethernet
- Performance
- Firewall throughput: 4 Gbps ¦ Threat prevention throughput: 2 Gbps ¦ Application throughput: 2.5 Gbps ¦ IPS throughput: 2.5 Gbps ¦ Anti-malware throughput: 2 Gbps ¦ TLS/SSL inspection and decryption throughput: 750 Mbps ¦ VPN throughput (IPSec): 1.8 Gbps ¦ Connection rate: 16000 connections per second
- Capacity
- Virtual interfaces (VLANs): 256 ¦ SSL VPN licences: 2 (maximum 200) ¦ VPN tunnels (site-to-site): 200 ¦ IPSec VPN clients: 10 (maximum 500) ¦ SPI connections: 1250000 ¦ DPI connections: 400000 ¦ DPI SSL connections: 50000 ¦ Single Sign-On (SSO) users: 2500 ¦ Manageable access points: 32
- VoIP Protocols
- SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5
- Power
- AC 100-240 V (50/60 Hz)
- Power Redundancy
- Optional
- Pricing Type
- SonicWall Promotional Tradeup
- Dimensions (WxDxH)
- 22.5 cm x 15 cm x 3.5 cm
- Weight
- 970 g
- Manufacturer Warranty
- 1-year warranty
- Product Description
- SonicWall TZ Series (Gen 7) TZ570 - security appliance - with 3 years Essential Protection Service Suite and Cloud Secure Edge for 1 year SIA-Basic (20 users) and 1 year SPA-Advanced (6 users)
- Device Type
- Security appliance
Product Features
Reliable performance
The SonicWall TZ570 delivers an impressive firewall throughput of 1. 8 Gbps, along with 4 Gbps application throughput, ensuring smooth operation even under heavy load.
High-capacity connections
With a connection rate of 16,000 connections per second, this device handles large volumes of data efficiently, catering to the needs of a busy network.
Extensive security protocols
Equipped with support for multiple security features including stateful packet inspection (SPI) and DoS attack prevention, the TZ570 protects your network from various threats.
Flexible networking options
The device supports VLAN trunking and SD-WAN capabilities, allowing for effective network management and resource allocation across diverse environments.
Adaptable environmental conditions
Operating within a temperature range of 0 °C to 40 °C and a humidity level of 5 to 95%, the TZ570 is designed to function reliably in various environments.
What's in the box
SonicWall TZ Series (Gen 7) TZ570, External power adapter
Specifications
General
- Height
- 3.5 cm
- Depth
- 15 cm
- Width
- 22.5 cm
- Weight
- 970 g
- Device Type
- Security appliance
- Bundled Services
- 3 years Essential Protection Service Suite and Cloud Secure Edge for 1 year SIA-Basic (20 users) and 1 year SPA-Advanced (6 users)
Connections & Expansion
- Interfaces
- 6 x 1000Base-T - RJ-45, 2 x 1000Base-T - RJ-45 (WAN), 2 x 5Gb Ethernet - SFP+, 2 x USB 3.0 - Type A, 1 x console - RJ-45, 1 x console - micro-USB
Manufacturer Warranty
- Service & Support
- Limited warranty - 1 year
Networking
- Form Factor
- Desktop
- Connectivity Technology
- Wired
- Network / Transport Protocol
- TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP
- Encryption Algorithm
- DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES
- Routing Protocol
- OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR)
- Data Link Protocol
- Gigabit Ethernet, 5 Gigabit Ethernet
- Authentication Method
- RADIUS, LDAP, XAUTH authentication
- Performance
- Firewall throughput: 4 Gbps, Threat prevention throughput: 2 Gbps, Application throughput: 2.5 Gbps, IPS throughput: 2.5 Gbps, Anti-malware throughput: 2 Gbps, TLS/SSL inspection and decryption throughput: 750 Mbps, VPN throughput (IPSec): 1.8 Gbps, Connection rate: 16000 connections per second
- Capacity
- Virtual interfaces (VLANs): 256, SSL VPN licences: 2 (maximum 200), VPN tunnels (site-to-site): 200, IPSec VPN clients: 10 (maximum 500), SPI connections: 1250000, DPI connections: 400000, DPI SSL connections: 50000, Single Sign-On (SSO) users: 2500, Manageable access points: 32
- Remote Management Protocol
- SNMP 2, SNMP 3, HTTP, HTTPS, CLI, SSH
- Status Indicators
- Link/activity, power, secure, SSD activity, test mode
- Features
- SD-WAN support, VLAN support, firewall protection, VPN support, NAT support, Quality of Service (QoS), DHCP server, DHCP relay, Deep Packet Inspection (DPI), content filtering, antivirus analysis, anti-spam protection, Stateful Packet Inspection (SPI), DoS attack prevention, IPv4 support, IPv6 support, Jumbo Frames support, VLAN trunking, port mirroring, bandwidth control, Common Access Card (CAC) reader support, NetFlow, PAT support, 5G USB Dongle Support, Single Sign-On (SSO) support, Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), DDos attack prevention
Miscellaneous
- Pricing Type
- SonicWall Promotional Tradeup
- MTBF
- 26.1 years
- Compliant Standards
- FIPS 140-2 Level 2, ICSA Firewall certified, ICSA Antivirus, Common Criteria, FCC Class B certified, ICES Class B, EMC, LVD, RoHS, C-Tick, VCCI Class B, UL, cUL, TUV GS, CB, WEEE, REACH, BSMI, KCC, MSIP, ANATEL
Power
- Power Redundancy
- Optional
- Power Provided
- 60 Watt
- Power Device
- External power adapter
- Voltage Required
- AC 100-240 V (50/60 Hz)
Software / System Requirements
- OS Provided
- SonicOS 7.0
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
Dimensions & Weight (Shipping)
- Shipping Weight
- 1.93 kg
IP Telephony
- VoIP Protocols
- SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5
