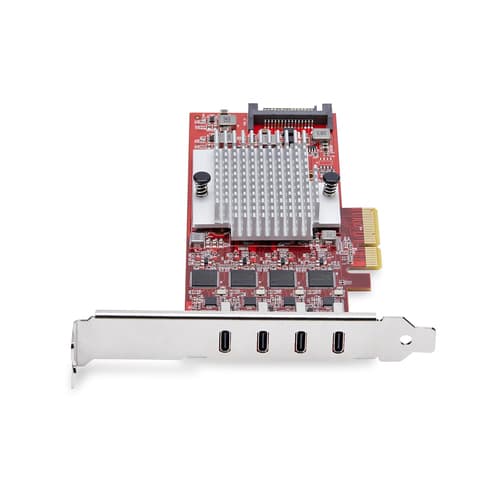

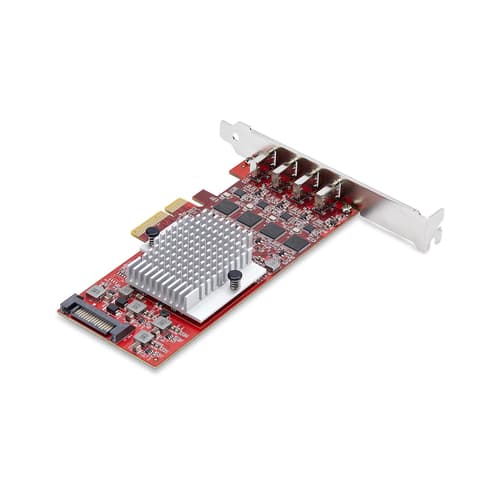

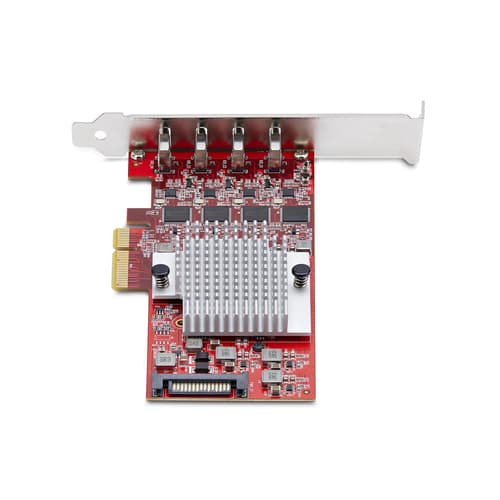

StarTech.com 4-Port USB Type-C PCIe Card, USB-C 10Gb, 4x Controllers, TAA

Manuf P/N: P10Q4C-USB-CARD
APAXON#: 11830260
EAN: 0065030911436
StarTech.com 4-Port USB Type-C PCIe Card, USB-C 10Gb, 4x Controllers, TAA
USB adapter
PCIe 3.0 x4
USB-C 3.2 Gen 2 x 4
TAA Compliant
Weight: 0.18 KG
  • Four USB-C 3.2 Gen 2 ports for versatile connectivity
  • Data transfer rates up to 10 Gbps

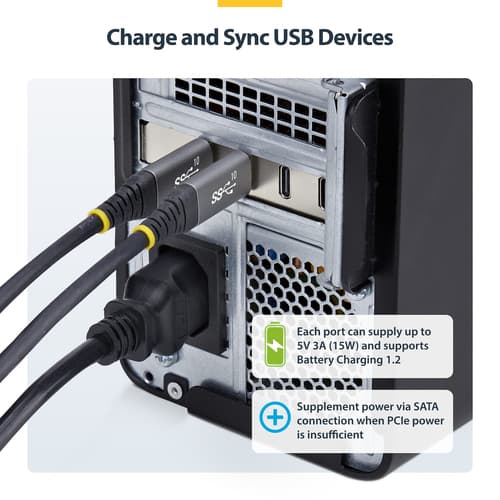

  • Built-in SATA power connector to support additional power needs
  • PCI Express 3.0 x4 interface for optimal performance
  • TAA-compliant for assured quality and performance standards
Stock5
Price £315.47
Quantity
|

Product Summary

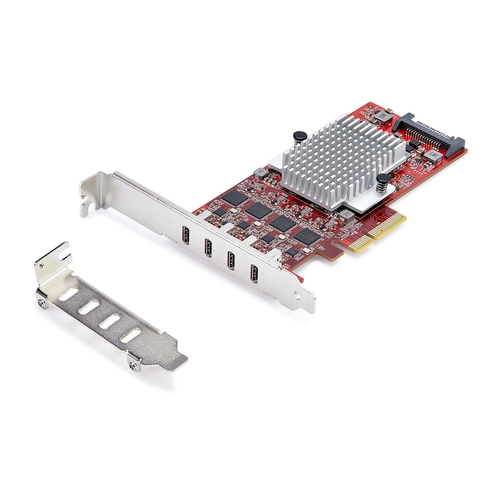

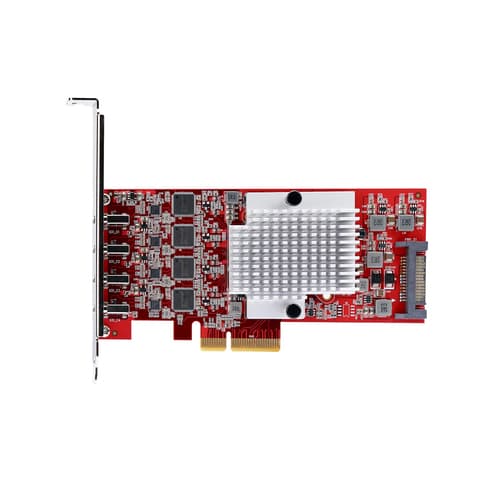

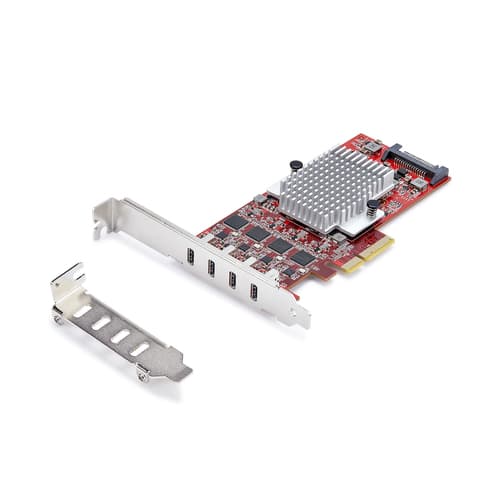

The StarTech.com 4-Port USB Type-C PCIe Card enhances connectivity options for users with multiple USB-C devices. This plug-in card offers four USB-C 3.2 Gen 2 ports, allowing for high-speed data transfer rates of up to 10 Gbps. Built to meet various standards, including USB 1.1 through USB 3.2, this card ensures compatibility with a wide range of peripherals and enhances system flexibility. Equipped with a built-in SATA power connector, it supports additional power needs, making it an efficient choice for users handling power-intensive applications. With robust operating temperature capabilities ranging from 0°C to 85°C and a humidity range of 20% to 80% RH, it is designed for durability and reliability in different environments. The card is also compliant with TAA.

Extended Specification

Ports & interfaces
Host interface
PCIe
Output interface
USB Type-C
Expansion card standard
PCI 3.0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
4
Internal SATA ports quantity
1
Design
Internal
Yes
Product colour
Red
Features
Chipset
ASMedia - ASM3142 x4, ASMedia - ASM1543 x4, ASMedia - ASM2812X
Data transfer rate (max)
10 Gbit/s Gbit/s
Operational conditions
Operating temperature (T-T)
0 - 85 °C °C
Storage temperature (T-T)
-25 - 85 °C °C
Operating relative humidity (H-H)
20 - 80% %
System requirements
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Linux operating systems supported
Yes
Server operating systems supported
Windows Server 2019, Windows Server 2022

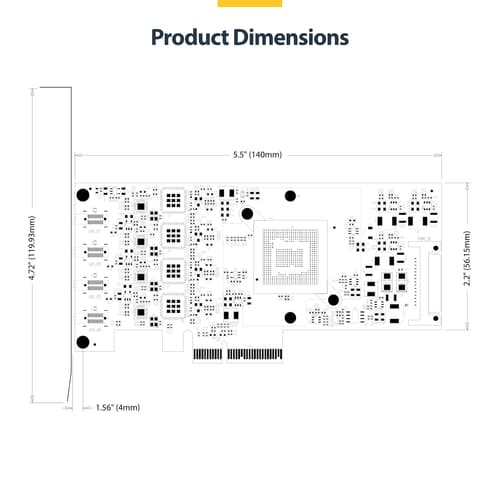

Weight & dimensions
Width
56.2 mm mm
Depth
140 mm mm
Height
119.9 mm mm
Weight
120 g g
Packaging data

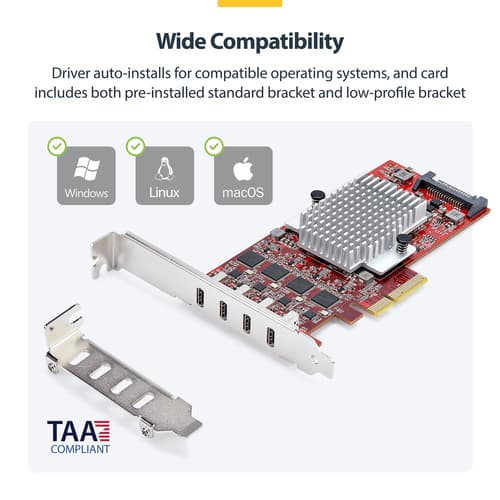

Mounting brackets included
Yes
Quick installation guide
Yes
Package width
142 mm mm
Package depth
170 mm mm
Package height
30 mm mm
Package weight
160 g g
Logistics data
Products per master (outer) case
60 pc(s) pc(s)
Master (outer) case width
380 mm mm
Master (outer) case length
310 mm mm
Master (outer) case height
500 mm mm
StarTech.com 4-Port USB Type-C PCIe Card, USB-C 10Gb, 4x Controllers, TAA
