StarTech.com 5-Port Unmanaged Industrial Ethernet Switch
IP30
TAA
Switch
unmanaged
5 x 10/100/1000Base-T
DIN rail mountable, wall-mountable
DC
TAA Compliant
Weight: 0.31 KG
- UNMANAGED 5-PORT GIGABIT SWITCH: Expand network connectivity with simple plug-and-play setup; 5x 10/100/1000Mbps RJ45 ports; Auto-negotiates speed; Level 4 ESD Protection; 3-Pin Terminal Block Power Input (9-60V DC); Fanless silent design; TAA Compliant
- DESIGNED FOR HARSH ENVIRONMENTS: IP30 Rated Unmanaged Industrial Ethernet Switch with Over Current Protection auto-negotiates speed; Rugged metal enclosure rated for an extended operating temp range: -40°F-167°F (40°C-75°C)
- ENHANCED NETWORK PERFORMANCE: Switching capacity of 10Gbps; 9K Jumbo Frame for reduced packet overhead; Quality of Service (QoS)/Broadcast Storm Protection (BSP) improves network performance; Front-facing diagnostic link/activity LEDs on each RJ45 port

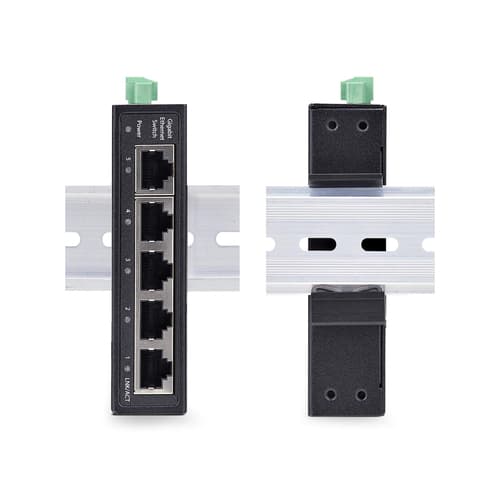

- VERSATILE MOUNTING OPTIONS: Compact case design uses minimal space when installed on or under a work surface; Wall or DIN Rail mountable using the included Mounting Ears or DIN Rail Mounting Kit
- INDUSTRIAL APPLICATIONS: Designed for demanding environments, including industrial settings & centralized control stations where device reliability is essential; Compact form factor makes it an ideal solution for Industrial Automation and IP Surveillance
Similar Products
Overview
The 5-Port Unmanaged Industrial Ethernet Switch from StarTech.com is designed for rugged environments, supporting a wide range of operating temperatures from -40°C to 75°C. With five 1000Base-T ports, this switch facilitates reliable connectivity for industrial applications requiring robust networking capabilities. The switch features a fanless design and is built with a metal housing, ensuring durability and longevity in harsh conditions. It is compliant with various standards including FCC, RoHS, and TAA, making it suitable for diverse deployment scenarios. Equipped with Wake On LAN (WOL), Automatic Media-Dependent Interface Crossover (MDIX), and a MAC Address Table Size of 9K entries, this switch ensures efficient data management and network performance. The status indicators for power and link/activity provide immediate feedback on the device’s operational status. Furthermore, its ability to be wall or DIN rail mounted adds versatility to installation options, making it an ideal choice for industries needing reliable Ethernet solutions.
Specifications
Network
- Ethernet LAN data rates
- 10,100,1000 Mbit/s Mbit/s
- Networking standards
- IEEE 802.1p, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- 10G support
- No
- Copper ethernet cabling technology
- 100BASE-TX, 1000BASE-T
- Full duplex
- Yes
- Auto MDI/MDI-X
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
Performance
- Mean time between failures (MTBF)
- 556710 h h
- Mean time between failures (MTBF)
- 556710 h
Power
- Input voltage
- 9 - 60 V V
- Power supply included
- Yes
- Voltage Required
- DC 9-60 V
Operational conditions
- Operating temperature (T-T)
- -40 - 75 °C °C
- Storage temperature (T-T)
- -40 - 85 °C °C
- Operating relative humidity (H-H)
- 5 - 95% %
- Operating temperature (T-T)
- -40 - 75 °C
- Storage temperature (T-T)
- -40 - 85 °C
- Operating relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 60 mm mm
- Depth
- 100 mm mm
- Height
- 26 mm mm
- Weight
- 221.7 g g
- Width
- 60 mm
- Depth
- 100 mm
- Height
- 26 mm
- Weight
- 221.7 g
Packaging data
- Package width
- 107 mm mm
- Package depth
- 159 mm mm
- Package height
- 55 mm mm
- Package weight
- 293.7 g g
- Terminal block included
- Yes
- Mounting brackets included
- Yes
- DIN rail included
- Yes
- Package width
- 107 mm
- Package depth
- 159 mm
- Package height
- 55 mm
- Package weight
- 293.7 g
Logistics data
- Master (outer) case width
- 355 mm mm
- Master (outer) case length
- 295 mm mm
- Master (outer) case height
- 335 mm mm
- Products per master (outer) case
- 30 pc(s) pc(s)
- Master (outer) case width
- 355 mm
- Master (outer) case length
- 295 mm
- Master (outer) case height
- 335 mm
- Products per master (outer) case
- 30 pc(s)
Management features
- Switch type
- Unmanaged
- Quality of Service (QoS) support
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Installed SFP modules quantity
- 0
- Installed SFP+ modules quantity
- 0
- Gigabit Ethernet (copper) ports quantity
- 5
- Power connector
- Terminal block (3-pin)
Data transmission
- Store-and-forward
- Yes
- Jumbo frames support
- Yes
- Jumbo frames
- 9000
Design
- Product colour
- Black
- Housing material
- Metal
- LED indicators
- Yes
- International Protection (IP) code
- IP30
- Wall mountable
- Yes
- DIN rail mounting
- Yes
Packaging content
- Quick start guide
- Yes
Certificates
- Compliance certificates
- RoHS, Trade Agreements Act (TAA)
General
- Subtype
- Gigabit Ethernet
- Device Type
- Switch - 5 ports - unmanaged
- Status Indicators
- Power, link/activity
- Enclosure Type
- DIN rail mountable, wall-mountable
- MAC Address Table Size
- 9K entries
- Ports
- 5 x 10/100/1000Base-T
- Features
- Security slot (Kensington security lock compatible), LED status indicator, WOL, Auto MDIX, full duplex mode, PXE support, store and forward, metal housing, fanless, rugged
