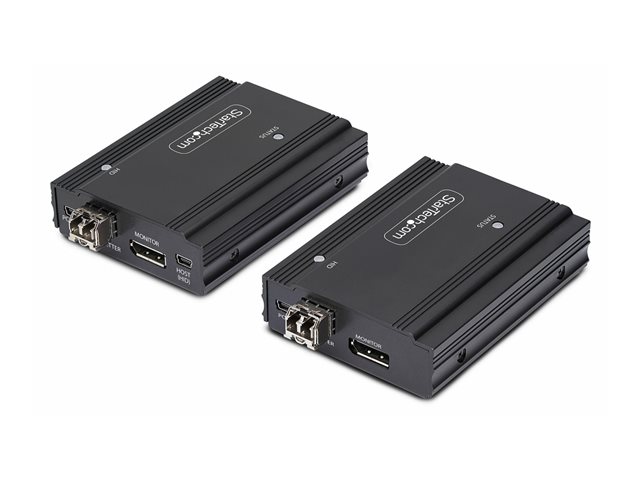

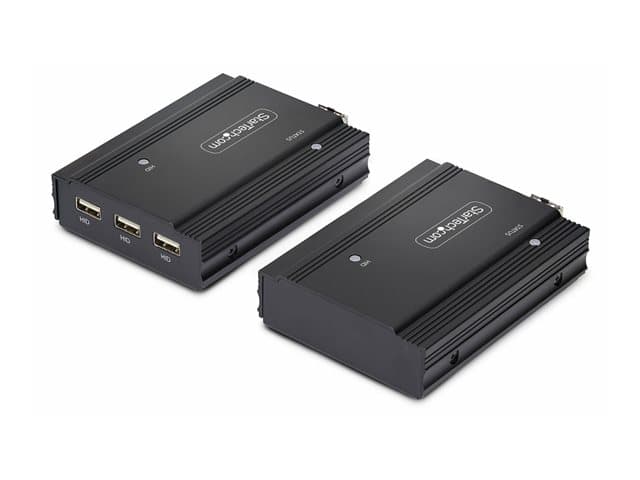

StarTech.com DisplayPort KVM Console Extender Over Fiber Optic, 4K 60Hz - Video/audio/USB extender - DisplayPort - up to 300 m - TAA Compliant
Video/audio/USB extender
DisplayPort
up to 300 m
TAA Compliant
Weight: 1.04 KG
- 4K 60Hz resolution support for crystal-clear images
- Extends signals up to 300 m over fiber optic cables
- Supports 4:4:4 chroma subsampling for true-to-life color reproduction
- Steel housing for enhanced durability
- EMI protection to ensure signal integrity in challenging environments
Similar Products
Overview
The StarTech.com DisplayPort KVM Console Extender Over Fiber Optic, 4K 60Hz, is designed to meet the needs of users requiring high-resolution video and audio signal extension over long distances. With support for 4K resolution at 60Hz, users can enjoy vibrant, detailed visuals across extended distances without compromising on quality. The extender's robust connectivity options, including DisplayPort, USB HID, and power connections, offer flexibility for various setups. Designed for durability, the extender features a steel housing that ensures reliable performance in diverse operating conditions. It also boasts features such as 4:4:4 chroma subsampling support and EDID Pass-Through, enhancing compatibility with a wide range of devices and delivering a true-to-life visual experience. With the ability to extend signals up to 300 m over fiber optic cables, this console extender is perfect for large-scale installations in educational institutions, corporate environments, and entertainment venues.
Main Specifications
- Product Description
- StarTech.com DisplayPort KVM Console Extender Over Fiber Optic, 4K 60Hz - video/audio/USB extender - DisplayPort - TAA Compliant
- Device Type
- Video/audio/USB extender
- Form Factor
- External
- Data Link Protocol
- DisplayPort
- Max Transfer Distance
- 300 m
- Power
- AC 100-240 V
- Dimensions (WxDxH)
- 7.8 cm x 11.4 cm x 2.8 cm
- Weight
- 500 g
- TAA Compliant
- Yes
- Manufacturer Warranty
- 2-year warranty
Product Features
High-resolution support
Experience visual quality with support for 4K resolution at 60Hz, ensuring crisp, detailed images and vibrant colors for an immersive viewing experience.
Robust connectivity
Featuring a wide range of inputs including DisplayPort, USB HID, and power connections, this extender offers versatile connectivity options to meet various user needs.
Extended reach
With the ability to extend video, audio, and USB signals up to 300 m over fiber optic cables, this console extender ensures high-quality, long-distance transmission without signal degradation.
Durable design
Constructed with a steel housing, the extender is designed for durability and reliability, ensuring long-term performance in diverse operating environments.
Enhanced compatibility
Supports 4:4:4 chroma subsampling and EDID Pass-Through, enhancing compatibility with a wide range of devices and delivering a true-to-life visual experience.
Specifications
Environmental Parameters
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 0 - 80% RH (non-condensing)
- Min Operating Temperature
- 0 °C
Weight & dimensions
- Height
- 2.8 cm
- Depth
- 11.4 cm
- Width
- 7.8 cm
- Weight
- 500 g
Dimensions & Weight (Shipping)
- Shipping Width
- 30.6 cm
- Shipping Depth
- 17.5 cm
- Shipping Weight
- 1 kg
- Shipping Height
- 7 cm
General
- Colour
- Black
- Form Factor
- External
- Device Type
- Video/audio/USB extender

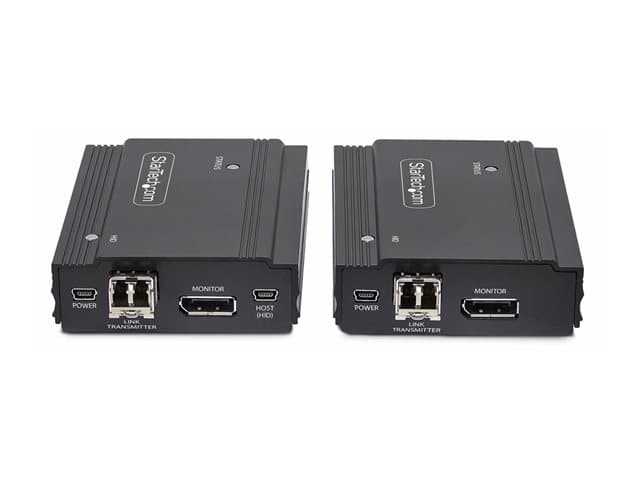

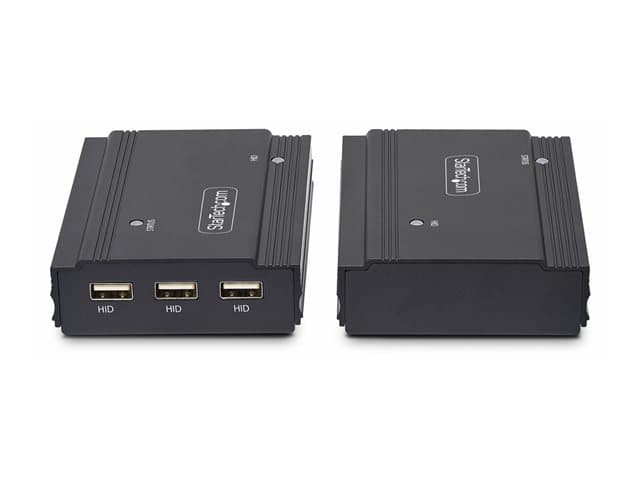

Connections & Expansion
- Interfaces

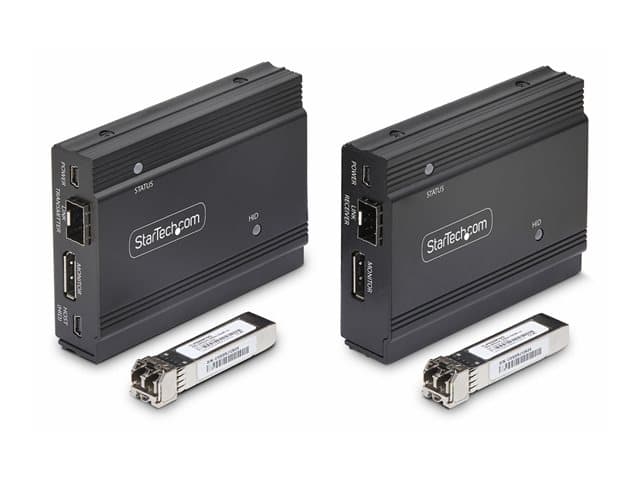

- 1 x - SFP+ female, 3 x USB HID (input) female, 1 x DisplayPort (input), 1 x power - micro-USB Type B, 1 x DisplayPort, 1 x - micro-USB Type B, 1 x power - micro-USB Type B
Networking
- Service & Support
- Limited warranty - 2 years
- Max Transfer Distance
- 300 m
- Connectivity Technology
- Wired
- Data Link Protocol
- DisplayPort
- Max Resolution
- 3840 x 2160

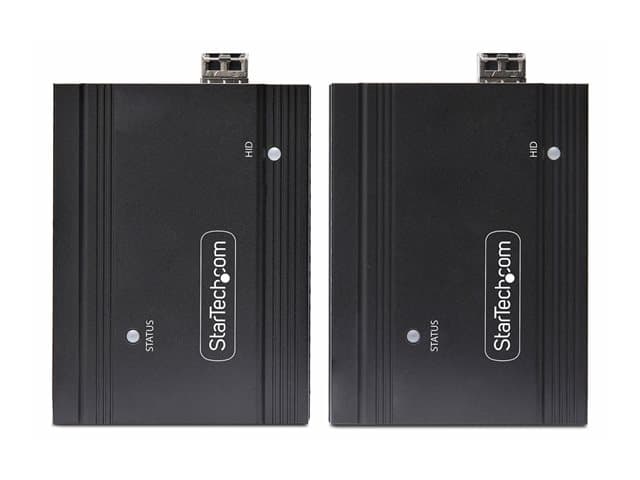

- Status Indicators
- Status, USB HID 2
- Features
- 4K resolution support, EDID Pass-Through, wide screen supported, steel housing, EMI protection, 4:4:4 chroma subsampling support
Miscellaneous
- TAA Compliant
- Yes

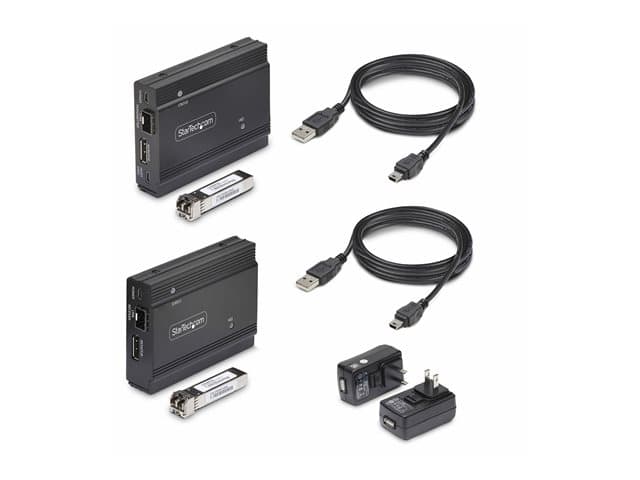

- Cables Included
- 1 x USB power cable
- Included Accessories
- 2 power adapters
- MTBF
- 156,000 hours
- Compliant Standards
- RoHS, FCC, MSA
Power
- Power Consumption Operational
- 10 Watt
- Voltage Required
- AC 100-240 V
- Power Device
- External power adapter
