StarTech.com Serial to Ethernet Adapter, IP LAN to RS232 DB9 Converter - Device server - 100Mb LAN, RS-232 - wall / DIN rail mountable - TAA Compliant

Manuf P/N: I13-SERIAL-ETHERNET
APAXON#: 10411373
EAN: 0065030905978
StarTech.com Serial to Ethernet Adapter, IP LAN to RS232 DB9 Converter - Device server - 100Mb LAN, RS-232 - wall / DIN rail mountable - TAA Compliant
  • SINGLE PORT SERIAL TO IP CONVERTER: Connect different RS232 serial devices remotely over an IP-based network; Use for POS systems, barcode readers, sensors, weighing systems, CNC controllers & PLCs; DB9 serial port supports up to 921.6Kbps; TAA Compliant
  • UNIFIED ECOSYSTEM EXPERIENCE: All our device servers share the same management software and Web UI; View/manage individual devices with a common UI on any OS; Windows software to set up virtual com ports and view/manage all device servers on the network
  • VERSATILE CONFIGURATIONS: RJ45 LAN to RS232 converter support TCP client/server mode to enable serial tunneling between two device servers over a LAN; Export/import settings, custom naming / location, admin password protection, and upgradeable firmware
  • ETHERNET AND POWER OPTIONS: Single 10/100Mbps RJ45 port w/auto-negotiation; Serial device server operates over Telnet (RFC2217)/UDP/TCP; Serial to LAN converter includes a power adapter & supports 5V over pin 9 for serial devices

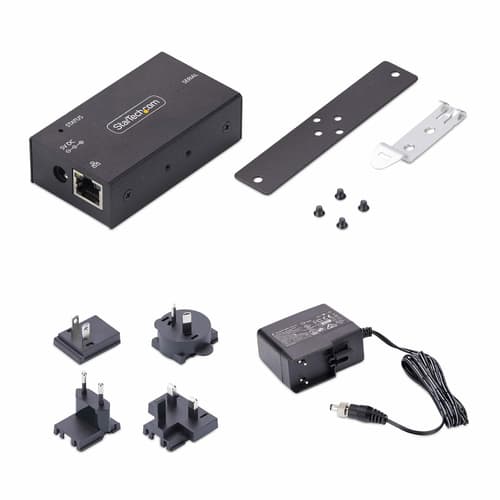

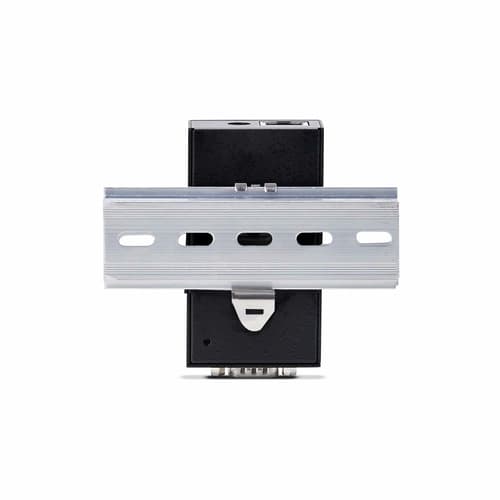

  • RUGGED AND MOUNTABLE ENCLOSURE: All-metal housing ensures durability in harsh conditions; Supports Level-4 ESD protection (15kV air/8kV contact); Includes the necessary wall and DIN rail mounting hardware; Dimensions 1.8x1x3.2in (46.1x 25x 81.9mm)
  • SERIAL TO IP CONVERTER OPTIONS: Our family of device servers includes the following options: I13-SERIAL-ETHERNET (1 Port), I13P-SERIAL-ETHERNET (1 Port w/ PoE), I23-SERIAL-ETHERNET (2 Port), and I43-SERIAL-ETHERNET (4 Port)
Stock0
Price £125.08
Quantity
|

Similar Products

Product Summary

The StarTech.com Serial to Ethernet Adapter is a versatile, high-performance device designed to integrate RS232 serial devices into an IP-based Ethernet network. This adapter features a robust design that includes a DB-9 connector for RS-232 serial connection and an RJ-45 port for 100Base-TX Ethernet connection, making it ideal for a variety of industrial and commercial applications. With its wide operating temperature range (0°C to 60°C) and humidity tolerance (5 - 95% RH, non-condensing), it's built to perform reliably in challenging environments. The adapter is engineered with advanced protection against electrostatic discharge, including 15 KV and 8 KV protection, ensuring the safety and longevity of your network equipment. It also boasts a comprehensive set of networking features, such as adjustable parity, auto-negotiation, and full duplex capability, enhancing its functionality and integration capabilities. Furthermore, its compliance with key industry standards, including EIA/TIA-232 and IEEE 802.3, ensures compatibility with a wide range of devices and networks. Whether you're looking to connect serial devices to an Ethernet network for remote management or integrate legacy equipment into modern infrastructures, this adapter offers a reliable, efficient solution.

Extended Specification

Network
Networking standards
IEEE 802.3i, IEEE 802.3u
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Full duplex
Yes
Technical details
Host interface
RS-232
Output interface
RJ-45
Connector 1
DB-9
Connector 2
RJ-45
Connector gender
Female/Female
Mounting
Wall/DIN
Baud rate
921.6 Kbit/s
Product colour
Black
Data bits
7, 8
Parity bit
Even, Mark, No, Odd, Space
Stop bits
1, 2
Compliance certificates
Trade Agreements Act (TAA)
Flow Control type
No, RTS/CTS, XON/XOFF
Electrostatic Discharge (ESD) protection (air)
15 kV
Electrostatic Discharge (ESD) protection (contact)
8 kV
Baud rate
921.6 Kbit/s Kbit/s
Electrostatic Discharge (ESD) protection (air)
15 kV kV
Electrostatic Discharge (ESD) protection (contact)
8 kV kV
Operational conditions
Operating temperature (T-T)
0 - 60 °C
Storage temperature (T-T)
-20 - 75 °C
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 60 °C °C
Storage temperature (T-T)
-20 - 75 °C °C
Operating relative humidity (H-H)
5 - 95% %
Weight & dimensions
Width
82 mm
Depth
46 mm
Height
25 mm
Weight
155 g
Package width
166 mm
Package depth
242 mm
Package height
55 mm
Package weight
5 kg
Width
82 mm mm
Depth
46 mm mm
Height
25 mm mm
Weight
155 g g
Package width
166 mm mm
Package depth
242 mm mm
Package height
55 mm mm
Package weight
5 kg kg
Power
Input voltage
100 - 240 V
Input current
0.48 A
Output voltage
5 V
Output current
3 A
Power consumption (typical)
15 W
Input voltage
100 - 240 V V
Input current
0.48 A A
Output voltage
5 V V
Output current
3 A A
Power consumption (typical)
15 W W
Material
Housing material
Steel
Indication
LED indicators
Yes
Packaging content
Mounting brackets included
Yes
Number of screws included
4 pc(s)
AC adapter included
Yes
DIN rail included
Yes
Number of screws included
4 pc(s) pc(s)
Packaging data
Manual
Yes
Software
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Logistics data
Products per master (outer) case
15 pc(s)
Master (outer) case length
420 mm
Master (outer) case width
410 mm
Master (outer) case height
280 mm
Products per master (outer) case
15 pc(s) pc(s)
Master (outer) case height
280 mm mm
Master (outer) case length
420 mm mm
Master (outer) case width
410 mm mm
StarTech.com Serial to Ethernet Adapter, IP LAN to RS232 DB9 Converter - Device server - 100Mb LAN, RS-232 - wall / DIN rail mountable - TAA Compliant
