StarTech.com Serial to Ethernet Adapter, IP LAN to RS232 DB9 Converter - Device server - PoE - 100Mb LAN, RS-232 - wall / DIN rail mountable - TAA Compliant
Manuf P/N: I13P-SERIAL-ETHERNET
APAXON#: 10411370
EAN: 0065030906005
StarTech.com Serial to Ethernet Adapter, IP LAN to RS232 DB9 Converter - Device server - PoE - 100Mb LAN, RS-232 - wall / DIN rail mountable - TAA Compliant
- SINGLE PORT SERIAL TO IP CONVERTER: Connect different RS232 serial devices remotely over an IP-based network; Use for POS systems, barcode readers, sensors, weighing systems, CNC controllers & PLCs; DB9 serial port supports up to 921.6Kbps; TAA Compliant
- UNIFIED ECOSYSTEM EXPERIENCE: All our device servers share the same management software and Web UI; View/manage individual devices with a common UI on any OS; Windows software to set up virtual com ports and view/manage all device servers on the network
- VERSATILE CONFIGURATIONS: PoE powered converter support TCP client/server mode to enable serial tunneling between two device servers over a LAN; Export/import settings, custom naming / location, admin password protection, and upgradeable firmware
- ETHERNET AND POWER OPTIONS: Single 10/100Mbps RJ45 port w/auto-negotiation; Serial device server operates over Telnet (RFC2217)/UDP/TCP; Serial to LAN converter

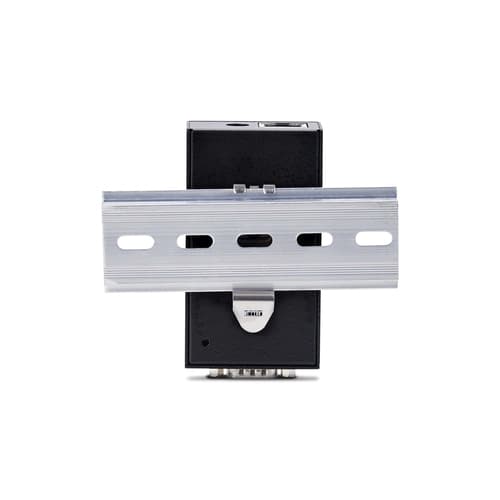

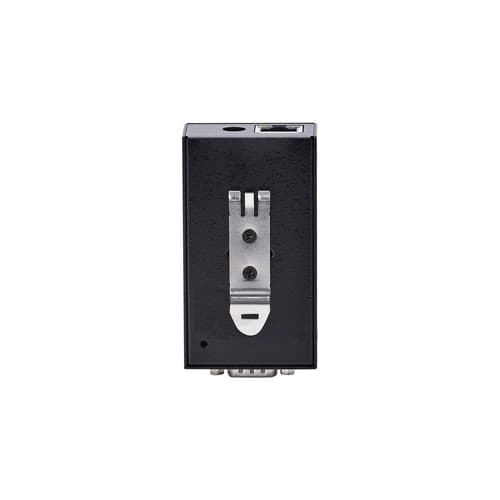

- RUGGED AND MOUNTABLE ENCLOSURE: All-metal housing ensures durability in harsh conditions; Supports Level-4 ESD protection (15kV air/8kV contact); Includes the necessary wall and DIN rail mounting hardware; Dimensions 1.8x1x3.2in (46.1x 25x 81.9mm)
- SERIAL TO IP CONVERTER OPTIONS: Our family of device servers includes the following options: I13-SERIAL-ETHERNET (1 Port), I13P-SERIAL-ETHERNET (1 Port w/ PoE), I23-SERIAL-ETHERNET (2 Port), and I43-SERIAL-ETHERNET (4 Port)
Stock2
Price £166.81
Quantity
|
Similar Products
Product Summary
The StarTech.com Serial to Ethernet Adapter is a versatile connectivity solution designed to bridge the gap between RS232 DB9 devices and IP-based networks. With its robust metal housing and advanced electrostatic discharge protection, it offers reliability and durability in various operational environments, from industrial settings to office spaces. The adapter supports Power over Ethernet (PoE), allowing for a cleaner setup with fewer cables and no need for external power supplies. It features a comprehensive suite of network functionalities including auto-negotiation, full duplex capability, and static IP routing, ensuring efficient and manageable network integration. Furthermore, the device is equipped with remote management capabilities, enabling secure and straightforward configuration and monitoring over the network. Whether it's for connecting surveillance cameras, point of sale systems, or industrial equipment, the StarTech.com Serial to Ethernet Adapter provides a reliable, efficient, and secure way to extend your network connectivity.
Extended Specification
Technical details
Baud rate
921.6 Kbit/s Kbit/s
Electrostatic Discharge (ESD) protection (air)
15 kV kV
Electrostatic Discharge (ESD) protection (contact)
8 kV kV
Host interface
RS-232
Output interface
RJ-45
Connector 1
DB-25S
Connector 2
RJ-45
Connector gender
Female/Female
Mounting
Wall/DIN
Baud rate
921.6 Kbit/s
Product colour
Black
Data bits
7, 8
Parity bit
Even, Mark, No, Odd, Space
Stop bits
1, 2
Compliance certificates
Trade Agreements Act (TAA)
Flow Control type
No, RTS/CTS, XON/XOFF
Electrostatic Discharge (ESD) protection (air)
15 kV
Electrostatic Discharge (ESD) protection (contact)
8 kV
Operational conditions
Operating temperature (T-T)
0 - 60 °C °C
Storage temperature (T-T)
-20 - 75 °C °C
Operating relative humidity (H-H)
5 - 95% %
Operating temperature (T-T)
0 - 60 °C
Storage temperature (T-T)
-20 - 75 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
82 mm mm
Depth
46 mm mm
Height
25 mm mm
Weight
155 g g
Package width
144 mm mm
Package depth
207 mm mm
Package height
30 mm mm
Package weight
1.2 kg kg
Width
82 mm
Depth
46 mm
Height
25 mm
Weight
155 g
Package width
144 mm
Package depth
207 mm
Package height
30 mm
Package weight
1.2 kg

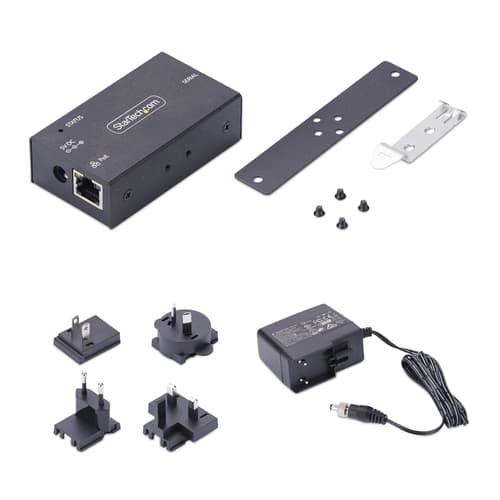

Packaging content
Number of screws included
4 pc(s) pc(s)
Mounting brackets included
Yes
Number of screws included
4 pc(s)
AC adapter included
Yes
DIN rail included
Yes
Logistics data
Products per master (outer) case
40 pc(s) pc(s)
Master (outer) case length
515 mm mm
Master (outer) case width
390 mm mm
Master (outer) case height
313 mm mm
Products per master (outer) case
40 pc(s)
Master (outer) case length
515 mm
Master (outer) case width
390 mm
Master (outer) case height
313 mm
Network
Networking standards
IEEE 802.3af, IEEE 802.3i, IEEE 802.3u
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Full duplex
Yes
Material
Housing material
Steel
Indication
LED indicators
Yes
Packaging data
Manual
Yes
Software
Windows operating systems supported
Windows 11 Enterprise x64, Windows 7 Professional x64, Windows Vista Enterprise x64, Windows 10, Windows 11 Home, Windows 7 Starter, Windows Vista Home Basic, Windows 10 Education, Windows 11 Pro, Windows 7 Starter x64, Windows 10 Education x64, Windows 11 x64, Windows 7 Ultimate, Windows Vista Home Premium, Windows 10 Enterprise, Windows 7 Ultimate x64, Windows Vista Home Premium x64, Windows 10 Enterprise x64, Windows 7 x64, Windows Vista Ultimate, Windows 10 Home, Windows 8, Windows Vista Ultimate x64, Windows 10 Home x64, Windows 7, Windows 8 Enterprise, Windows 10 IOT Core, Windows 7 Enterprise, Windows 8 Enterprise x64, Windows XP, Windows 10 IoT Enterprise, Windows 7 Enterprise x64, Windows 8 Pro, Windows XP Home, Windows 10 Pro, Windows 7 Home Basic, Windows 8 Pro x64, Windows XP Home x64, Windows 10 Pro x64, Windows 7 Home Basic x64, Windows 8 x64, Windows Vista, Windows XP Professional, Windows 10 x64, Windows 7 Home Premium, Windows Vista Business, Windows XP Professional x64, Windows 11, Windows 7 Home Premium x64, Windows Vista Business x64, Windows 11 Enterprise, Windows 7 Professional, Windows Vista Enterprise
