ViewSonic LS630W - DLP projector - laser/phosphor - 4500 ANSI lumens - WXGA (1280 x 800) - 16:10

Manuf P/N: LS630W

APAXON#: 11527560

ViewSonic LS630W - DLP projector - laser/phosphor - 4500 ANSI lumens - WXGA (1280 x 800) - 16:10
  • 3rd generation laser phosphor technology with a lifespan up to 30,000 hours
  • 4,500 ANSI Lumens with WXGA resolution offering clear images in any environment
  • High native contrast ratio powered by a 0.65” DMD chip and DLP technology
  • Up to a 300" ultra-large screen with a lower cost-per-inch
  • Installation flexibility: 1.3x optical zoom, H/V keystone, and 360° projection
  • Centralized LAN control for efficient management

Similar Products

Compare All

Viewsonic LS630W, 4500 ANSI lumens, DMD, WXGA (1280x800), 3000000:1, 762 - 7620 mm (30 - 300"), 0.77 - 9.98 m

Projector

Projection technology
DMD
Vertical synchronization (min)
0.024 kHz kHz
Vertical synchronization (max)
0.12 kHz kHz
Screen size (max)
7.62 m (300") m
Number of colours
1.07 billion colours
Keystone correction, vertical
+-30° °
Contrast ratio (typical)
3000000:1
Smart projector
No
Projection distance
0.77 - 9.98 m m
Horizontal synchronization (max)
102 kHz kHz
Projector brightness
4500 ANSI lumens ANSI lumens
Matrix size
1.63 cm (0.64") cm
Projector native resolution
WXGA (1280x800)
Screen size compatibility
762 - 7620 mm (30 - 300") mm
Keystone correction, horizontal
+-30° °
Matrix type
MLA
Horizontal synchronization (min)
15 kHz kHz

Packaging content

Cables included
AC

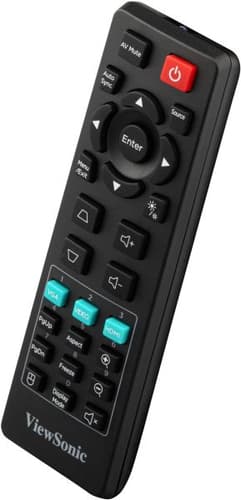

Remote control included
Yes
Warranty card
Yes

Logistics data

Pallet gross width
122 cm cm
Pallet gross height
2.16 m m
Quantity per pack
1 pc(s) pc(s)
Pallet gross length
102 cm cm
Products per master (outer) case
1 pc(s) pc(s)
Harmonized System (HS) code
8528620000

Technical details

Image lag time
25 ms ms

Weight & dimensions

Height
129 mm mm
Package width
440 mm mm
Package height
340 mm mm
Package weight
4.4 kg kg
Weight
3.1 kg kg
Width
286 mm mm
Depth
216 mm mm
Package depth
185 mm mm

Video

3D
No
Supported graphics resolutions
640 x 480 (VGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Supported video modes
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Full HD
Yes

Lens system

Focal length range
16.9 - 21.61 mm mm
Offset
124% %
Optical zoom
1.3x x
Vertical lens shift range
0 - 60% %
Aperture range (F-F)
2.43 - 2.78
Throw ratio
1.18 - 1.54
Zoom capability
Yes
Digital zoom
2x x

Ports & interfaces

Audio (L/R) in
0
VGA (D-Sub) ports quantity
0
HDMI ports quantity
2
Serial interface type
RS-232
HDMI connector type
Full-size
HDMI version
1.4
Component video (YPbPr/YCbCr) in
0
DVI port
No
USB 2.0 Type-A ports quantity
1
PC Audio out
Yes
Composite video in
0

Light source

Service life of light source
20000 h h
Service life of light source (economic mode)
30000 h h
Light source brightness
5500 lm lm
Light source type
Laser

Network

Ethernet LAN
Yes
Smart TV
No
Wi-Fi
No
Ethernet LAN (RJ-45) ports
1

Features

Noise level
32 dB dB
On Screen Display (OSD)
Yes
HDCP
Yes
HDCP version
1.4
Noise level (economic mode)
27 dB dB
On Screen Display (OSD) languages
Multi

Display

Built-in display
No

Power

Power source
AC
AC input voltage
100 - 240 V V
AC adapter output voltage
19.5 V V
Power consumption (typical)
175 W W
Power consumption (standby)
0.5 W W

Design

Cable lock slot
Yes
Market positioning
Education
Product type
Standard throw projector
Product colour
White

Storage

Card reader integrated
No

Operational conditions

Operating temperature (T-T)
0 - 40 °C °C

Multimedia

Built-in speaker(s)
Yes
RMS rated power
15 W W

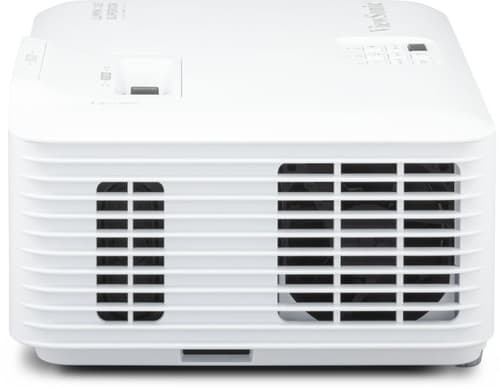

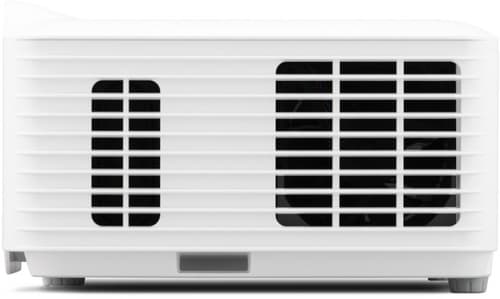

ViewSonic LS630W - DLP projector - laser/phosphor - 4500 ANSI lumens - WXGA (1280 x 800) - 16:10 — image 1
