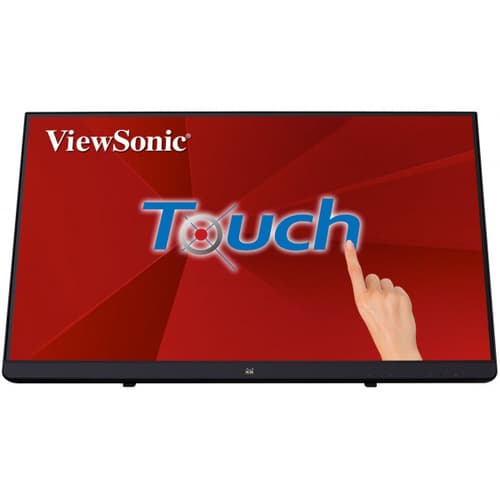

ViewSonic TD2230 - LED monitor - 22" (21.5" viewable) - touchscreen - 1920 x 1080 Full HD (1080p) - ADS-IPS - 250 cd/m� - 1000:1 - 5 ms - HDMI, VGA, DisplayPort - speakers
- Touchscreen 54.6 cm (21.5") LCD ADS
- Full HD 1920 x 1080 pixels
- 76 Hz 5 ms 1000:1
- F 19 kWh 25 W
Similar Products
Overview
Viewsonic TD2230 computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LCD Touchscreen Multi-user Black
Specifications
Display
- Display diagonal
- 54.6 cm (21.5")
- Display resolution
- 1920 x 1080 pixels
- Display technology
- LCD
- Touchscreen
- Yes
- HD type
- Full HD
- Panel type
- ADS
- Response time
- 5 ms
- Screen shape
- Flat
- Contrast ratio (typical)
- 1000:1
- Maximum refresh rate
- 76 Hz
- Touchscreen type
- Multi-user
- Touchscreen technology
- Projected capacitive system
- Touch technology
- Multi-touch
- Number of simultaneous touchpoints
- 10
- Display brightness
- 250 cd/m²
- Supported graphics resolutions
- 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
- Contrast ratio (dynamic)
- 50000000:1
- Viewing angle, horizontal
- 178°
- Viewing angle, vertical
- 178°
- Pixel pitch
- 0.24825 x 0.24825 mm
- Horizontal scan range
- 24 - 82 kHz
- Vertical scan range
- 50 - 76 Hz
- Display diagonal (metric)
- 54.6 cm
Performance
- NVIDIA G-SYNC
- No
- AMD FreeSync
- No
- Windows operating systems supported
- Windows 10, Windows 7, Windows 8, Windows 8.1
- Mac operating systems supported
- Yes
- Linux operating systems supported
- Yes
- Other operating systems supported
- Android
Multimedia
- Built-in speaker(s)
- Yes
- Built-in camera
- No
- Number of speakers
- 2
- RMS rated power
- 6 W
- Built-in microphone
- No
Design
- Product colour
- Black
Ports & interfaces
- Built-in USB hub
- Yes
- HDMI
- Yes
- USB hub version
- 3.2 Gen 1 (3.1 Gen 1)
- USB upstream port type
- USB Type-B
- Number of upstream ports
- 1
- Number of USB Type-B upstream ports quantity
- 1
- USB Type-A downstream ports quantity
- 2
- HDMI ports quantity
- 1
- HDMI version
- 1.4
- DisplayPorts quantity
- 1
- DisplayPort version
- 1.2
- Audio input
- 1
- Audio output
- 1
Ergonomics
- VESA mounting
- Yes
- Panel mounting interface
- 100 x 100 mm
- Wall mountable
- Yes
- Tilt adjustment
- Yes
- Tilt angle range
- 20 - 70°
- On Screen Display (OSD)
- Yes
- Number of OSD languages
- 12
Power
- Energy efficiency class (SDR)
- F
- Energy consumption (SDR) per 1000 hours
- 19 kWh
- Power consumption (typical)
- 25 W
- AC input voltage
- 100-240 V
- AC input frequency
- 50 - 60 Hz
- Power supply type
- AC
- European Product Registry for Energy Labelling (EPREL) code
- 389769
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 20 - 90%
- Storage relative humidity (H-H)
- 5 - 90%
Weight & dimensions
- Width (with stand)
- 490 mm
- Depth (with stand)
- 47 mm
- Height (with stand)
- 299 mm
- Weight (with stand)
- 3.58 kg
Packaging data
- Package width
- 550 mm
- Package depth
- 114 mm
- Package height
- 371 mm
- Package weight
- 4.7 kg
Packaging content
- Cables included
- AC, Audio (3.5mm), HDMI, USB
Sustainability
- Sustainability certificates
- EPEAT Bronze, ErP
Other features
- Display viewable area (HxV)
- 476.64 x 268.11 mm
- Compliance certificates
- CE, REACH, RoHS
- Certification
- cULus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BIS, CCC, China RoHS, China Energy Label, CECP
Logistics data
- Harmonized System (HS) code
- 85285210
