120MM FAN P12 PRO A-RGB DYN PWM WT

Manuf P/N: ACFAN00325A

EAN: 4895265000706

ARCTIC Freezer P12 Pro Reverse A-RGB (White) - 120 mm A-RGB PWM Fan with Cable Splitter. Type: Fan, Fan diameter: 12 cm, Airflow: 124 m³/h, Bearing type: Fluid Dynamic Bearing (FDB). Product colour: White

Similar Products

Compare All

ARCTIC Freezer P12 Pro Reverse A-RGB (White) - 120 mm A-RGB PWM Fan with Cable Splitter, Fan, 12 cm, 124 m³/h, White

Performance

Fan static pressure
4.5 mmH2O mmH2O
Operating temperature (T-T)
0 - 40 °C °C
Suitable location
Computer case
Type
Fan
Fan diameter
12 cm cm
Maximum airflow
73 cfm cfm
Airflow
124 m³/h m³/h
Pulse-width modulation (PWM) support
Yes
Bearing type
Fluid Dynamic Bearing (FDB)
Quantity per pack
1 pc(s) pc(s)
Fan speed (min)
500 RPM RPM
Fan speed (max)
3000 RPM RPM

Design

Number of fans
1 fan(s) fan(s)
Number of fan blades
5
Illumination LED
Yes
Illumination colour
Multi
LED connector type
3-pin + 3-pin
Fan connector
4-pin + 4-pin
Product colour
White

Power

Starting voltage
3.5 V V
LED voltage
5 V V
Fan voltage
12 V V
Fan current
0.4 A A

Weight & dimensions

Fan dimensions (W x D x H)
120 x 120 x 27 mm mm
Fan weight
172 g g
Cable length
0.48 m m
Package width
125 mm mm
Package depth
127 mm mm
Package height
32 mm mm
Package weight
210 g g

Technical details

Warranty period
6 year(s) year(s)

Packaging content

Package type
Box
Screws included
Yes
Number of screws
4

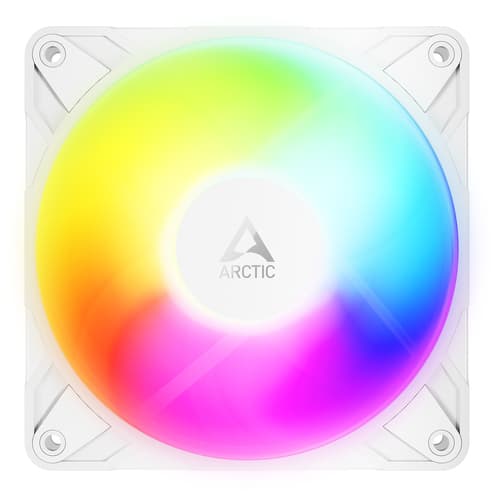

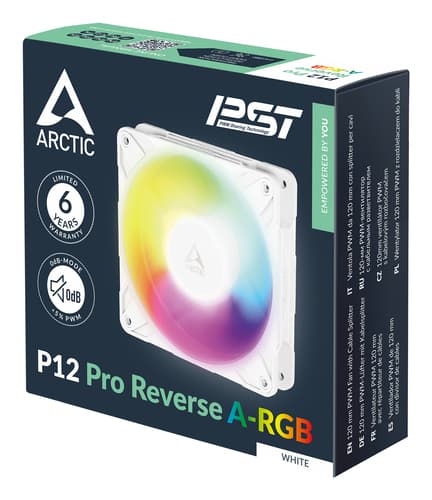

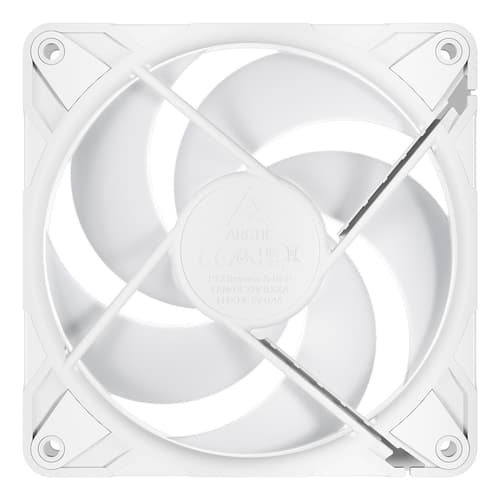

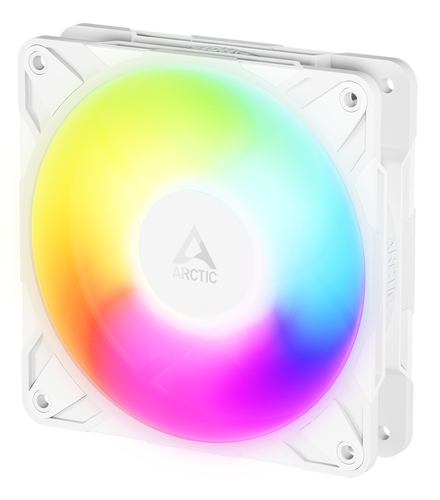

120MM FAN P12 PRO A-RGB DYN PWM WT — image 1
Reversed Airflow

Reversed Airflow

The P12 Pro Reverse is specifically designed for air intake from the back side. It's particularly suitable when conventional fans would compromise the aesthetics. Fan Speed 500–3000 rpm Static Pressure 4.50 mm H2O Bearing Fluid Dynamic Bearing Airflow 73 cfm | 124.03 m³/h
Optimized Airflow Design

Optimized Airflow Design

The trumpet-shaped intake and teardrop-shaped spokes direct the airflow with reduced flow losses. This reduces air resistance, minimising turbulence and aerodynamic noise.
SOTA Microcontroller

SOTA Microcontroller

Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.
More Power – Less Noise

More Power – Less Noise

An automated measuring and balancing process ensures smooth performance by applying the balancing compound with pinpoint accuracy.
Minimum Gap Dimensions for Maximum Efficiency

Minimum Gap Dimensions for Maximum Efficiency

Enables higher static pressure and maximum airflow efficiency.
PST – Easy Cable Management and Synchronized PWM Control

PST – Easy Cable Management and Synchronized PWM Control

Thanks to the additional PWM connector, multiple fans can be daisy-chained and controlled simultaneously through a single header.
Optimized FDB Bearing-Shaft Design

Optimized FDB Bearing-Shaft Design

A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.
6-Year Warranty – Because Satisfaction Matters

6-Year Warranty – Because Satisfaction Matters

Our products are tested under extreme conditions. The 6-year warranty isn’t just a promise – it’s a testament to our confidence in their durability.
