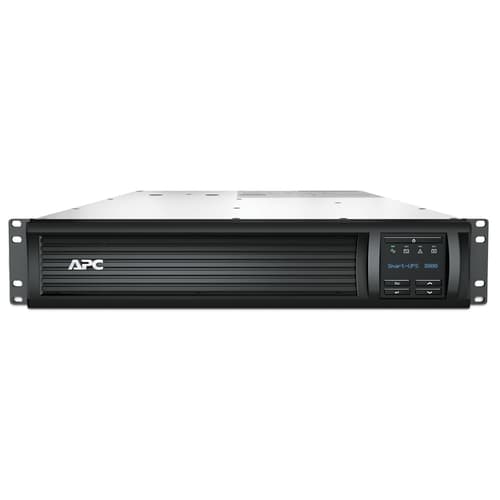

APC Smart-UPS 3000VA LCD RM
UPS (rack-mountable)
AC 230 V
2700 Watt
3000 VA
Ethernet, RS-232, USB
output connectors: 9
2U
black
with APC UPS Network Management Card
for P/N: AR3105W, AR3140G, AR3155W, AR3305W, AR3340G, AR3355W, AR4038IX432, NBWL0356A
Weight: 60.12 KG
- Line-Interactive
- 3 kVA 2700 W
- Waveform: Sine
- 9 AC outlet(s)
- Sealed Lead Acid (VRLA) 547 Ah
- Rackmount Black
Similar Products
Overview
APC Smart-UPS protects your data by supplying reliable, network-grade power in either traditional Tower or Rack-optimized form factors for space constrained business critical applications. Award winning APC Smart-UPS is the perfect UPS for protecting business critical fileservers (Intel or UNIX based), minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATMs. Rack Mount versions are the choice for rack optimized servers, server appliances, blade servers, other blade devices and rack-mounted network switches and hubs.
Specifications
Features
- Output power capacity
- 3 kVA kVA
- Output power
- 2700 W W
- Input operation voltage (min)
- 151 V V
- Input operation voltage (max)
- 302 V V
- Input frequency
- 50/60 Hz Hz
- Output operation voltage (min)
- 220 V V
- Output operation voltage (max)
- 240 V V
- Output frequency
- 50/60 Hz Hz
- Surge energy rating
- 320 J J
- Response time
- 4 ms ms
- Noise level
- 55 dB dB
- UPS topology
- Line-Interactive
- Output power capacity
- 3 kVA
- Output power
- 2700 W
- Waveform
- Sine
- Input operation voltage (min)
- 151 V
- Input operation voltage (max)
- 302 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 220 V
- Output operation voltage (max)
- 240 V
- Output frequency
- 50/60 Hz
- Surge energy rating
- 320 J
- Response time
- 4 ms
- Emergency Power Off (EPO)
- O
- Noise level
- 55 dB
- Surge protection
- Yes
- Audible alarm(s)
- Yes
- Web-based management
- Yes
- Audible alarm modes
- Battery replacement
- Auto-restart
- Yes
Ports & interfaces
- AC outlets quantity
- 9 AC outlet(s) AC outlet(s)
- AC outlet types
- C13 coupler, C19 coupler, C20 coupler
- Power plug
- C20 coupler
- AC outlets quantity
- 9 AC outlet(s)
- USB 2.0 ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 0
Battery
- Battery capacity
- 547 Ah Ah
- Battery recharge time
- 3 h h
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 547 Ah
- Battery recharge time
- 3 h
- Hot-swap battery
- Yes
- Automatic battery test
- Yes
- Cold start
- Yes
Design
- Cable length
- 2 m m
- Form factor
- Rackmount
- Product colour
- Black
- Rack capacity
- 2U
- Cable length
- 2 m
- Display type
- LCD
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C °C
- Storage temperature (T-T)
- -15 - 45 °C °C
- Operating relative humidity (H-H)
- 0 - 95% %
- Storage relative humidity (H-H)
- 0 - 95% %
- Operating altitude
- 0 - 3000 m m
- Non-operating altitude
- 0 - 15000 m m
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Weight & dimensions
- Width
- 480 mm mm
- Depth
- 683 mm mm
- Height
- 86 mm mm
- Weight
- 44.2 kg kg
- Width
- 480 mm
- Depth
- 683 mm
- Height
- 86 mm
- Weight
- 44.2 kg
Packaging data
- Package width
- 600 mm mm
- Package depth
- 980 mm mm
- Package height
- 254 mm mm
- Package weight
- 51.6 kg kg
- Resource CD
- Yes
- Package width
- 600 mm
- Package depth
- 980 mm
- Package height
- 254 mm
- Package weight
- 51.6 kg
Logistics data
- Products per pallet
- 8 pc(s) pc(s)
- Products per pallet
- 8 pc(s)
- Harmonized System (HS) code
- 85078000
- Total carbon footprint (kg of CO2e)
- 2958.37
Other features
- Output voltage
- 230 V V
- Output voltage
- 230 V
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE
Packaging content
- Rack mount kit
- Yes
- Cables included
- Input power cable, USB cable
- Quick installation guide
- Yes
Sustainability
- Sustainability certificates
- Green Premium
Power Device
- Input Voltage
- AC 230 V
- Input Voltage Range (Adjustable)
- AC 151 - 302 V
- Power Capacity
- 2700 Watt / 3000 VA
General
- Device Type
- UPS - rack-mountable
