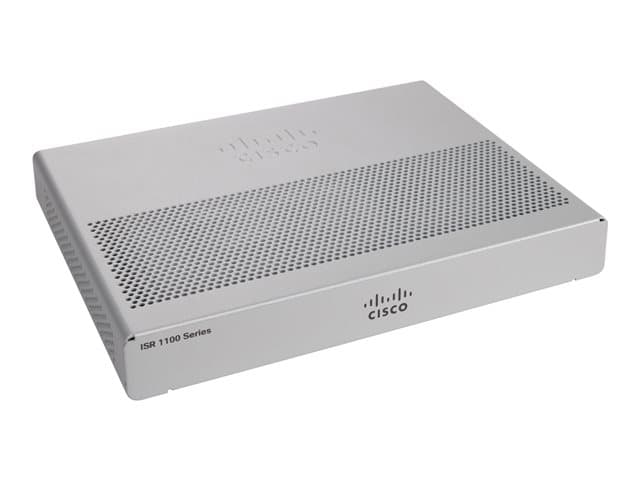

Cisco Integrated Services Router 1101 - router - rack-mountable
Router 4-port switch
1GbE
rack-mountable
Weight: 1.64 KG
- Perfect connectivity
- Increased performance
- Integrated enterprise-class security
- Advanced wireless LAN
Similar Products
Cisco WAN Interface Card (WIC) - 1 x T1/E1 Network - For Voice, Wide Area Network
Overview
The Cisco C1101-4P Integrated Services Router with Cisco IOS XE Software combines wired and wireless internet connectivity and comprehensive security in a single, high-performance device. Lightweight and compact with low power consumption, this business router is an excellent choice for environments where space, heat dissipation and low power consumption are critical factors.
Main Specifications
- Product Description
- Cisco Integrated Services Router 1101 - router - rack-mountable
- Device Type
- Router - 4-port switch (integrated)
- WAN Ports Qty
- 1
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Performance
- Encryption throughput: 350 Mbps
- Weight
- 1.76 kg
- Network / Transport Protocol
- IPSec, PPPoE, DHCP, DNS, L2TPv3
- Routing Protocol
- OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP
- Remote Management Protocol
- SNMP, RMON, CLI, TR-069
- Features
- CBWFQ, WRED, ACL support, QoS, DMVPN, NetFlow, MRC, IPFIX, CSD, LISP, packet aggregation A-MPDU, packet aggregation A-MSDU, MIB II, AVC, AAA, DFS, ERSPAN, EEM
- Compliant Standards
- IEEE 802.1Q, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.11r
- Power
- AC 100-240 V (50/60 Hz)
- Dimensions (WxDxH)
- 19.05 cm x 15.24 cm x 2.79 cm
- Manufacturer Warranty
- 1-year warranty
Associated Documents
Product Features
PORT COUNT
4-port managed Gigabit Ethernet switch
CONNECTIVITY
Gigabit WAN port with integrated USB 3. 0 console
SECURITY
Multi-layer, robust security and high-performance VPNs encrypt all data from the WAN edge to the cloud
PERFORMANCE
Business router designed for broadband network speeds while running secure, concurrent data, voice, video and wireless services
PEACE OF MIND
1-year limited hardware warranty with 10-day advanced replacement
What's in the box
C1101-4P Router, Power Supply and Power Cable, Product Documentation
Specifications
General
- Routing Protocol
- OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP
- Remote Management Protocol
- SNMP, RMON, CLI, TR-069
- Encryption Algorithm
- DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA
- Features
- CBWFQ, WRED, ACL support, QoS, DMVPN, NetFlow, MRC, IPFIX, CSD, LISP, packet aggregation A-MPDU, packet aggregation A-MSDU, MIB II, AVC, AAA, DFS, ERSPAN, EEM
- Compliant Standards
- IEEE 802.1Q, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.11r, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1, EN 60950-1, VCCI V-3, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, EN 300 386, IEC 60950-1 First Edition, CAN/CSA-C22.2 No. 60950-1, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13
- Device Type
- Router - 4-port switch (integrated)
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Flash Memory
- 4 GB
- Authentication Method
- RADIUS
- Connectivity Technology
- Wired
- RAM
- 4 GB
- Network / Transport Protocol
- IPSec, PPPoE, DHCP, DNS, L2TPv3
Manufacturer Warranty
- Service & Support
- Limited warranty - advance parts replacement - 1 year - response time: 10 days
Connections & Expansion
- Interfaces
- WAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP, LAN: 4 x 1000Base-T - RJ-45, USB 3.0: 1 x
Power
- Voltage Required
- AC 100-240 V (50/60 Hz)
- Power Device
- External power adapter - 30 watt
- Power Consumption Operational
- 30 watt
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 85% (non-condensing)
Weight & dimensions
- Width
- 19.05 cm
- Depth
- 15.24 cm
- Weight
- 1.76 kg
- Height
- 2.79 cm
Miscellaneous
- Rack Mounting Kit
- Optional
