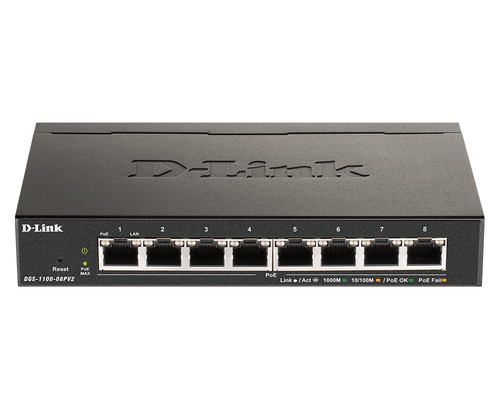

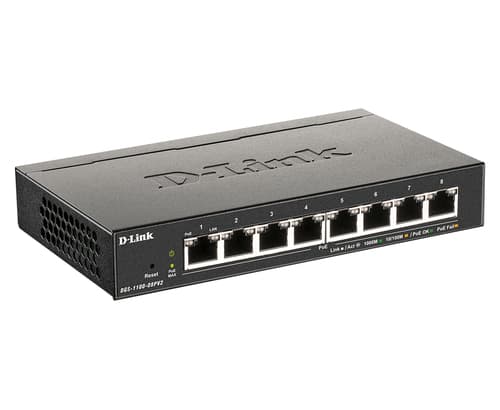

D-Link DGS 1100-08PV2
Thumbnail 0
Thumbnail 1
Thumbnail 2

D-Link DGS 1100-08PV2

Manuf P/N: DGS-1100-08PV2/B
APAXON#: 8169796
EAN: 790069469046
D-Link DGS 1100-08PV2
Switch
smart
8 x 10/100/1000 (PoE)
desktop
PoE (64 W)
Weight: 1.22 KG
  • Managed L2/L3 Web-based management
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Compact design for convenient placement
  • Fanless design for silent operation
  • Innovative D-Link Green energy saving features
  • Complete web interface for comprehensive switch management
UK Stock3
ConditionNew
Price £ 64.52
Price inc. VAT
£ 77.42
Quantity
|

Sales & Technical Enquiries

Product Summary

The D-Link DGS 1100-08PV2 switch is engineered to meet the demands of modern networks, offering robust performance, enhanced connectivity, and advanced network management features. With its 16 Gbps switching capacity and 11.9 Mpps forwarding performance, it efficiently manages network traffic, ensuring smooth and reliable data transmission. The switch features 8 PoE ports, providing a convenient and cost-effective solution for powering IP cameras, VoIP phones, and other PoE devices, while its total PoE budget of 64 W accommodates various deployment scenarios. Designed for durability and reliability, the D-Link DGS 1100-08PV2 operates within a wide range of environmental conditions and boasts a fanless design for silent operation, making it ideal for noise-sensitive environments. Its comprehensive suite of network management features, including VLAN support and Quality of Service (QoS), allows for efficient traffic prioritization and enhanced network security. Additionally, the inclusion of D-Link Green technology underscores a commitment to energy efficiency, automatically optimizing power usage and contributing to significant energy savings. Whether for small businesses or enterprise applications, this switch is a versatile and eco-friendly solution for modern networking needs.

Extended Specification

Management features
Switch type
Managed
Switch layer
L2/L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Gigabit Ethernet (copper) ports quantity
8
Network
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring
Yes
Full duplex
Yes
Half duplex
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
VLAN support
Yes
Virtual LAN features
Port-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs
4094
Ethernet LAN data rates
10,100,1000 Mbit/s Mbit/s
Data transmission
MAC address table
4096 entries
Switching capacity
16 Gbit/s
Forwarding rate
11.9 Mpps
Number of queues
4
Jumbo frames support
Yes
Jumbo frames
9216
MAC address table
4096 entries entries
Switching capacity
16 Gbit/s Gbit/s
Forwarding rate
11.9 Mpps Mpps
Security
IGMP snooping
Yes
Loop protection
Yes
Queue scheduling algorithms
SP, Weighted Round Robin (WRR)
Multicast features
Multicast support
Yes
Design
Rack mounting
No
Product colour
Black
LED indicators
Yes
Performance
Flash memory
2 MB
Fanless
Yes
Mean time between failures (MTBF)
786841 h
Flash memory
2 MB MB
Mean time between failures (MTBF)
786841 h h
Power
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
77.9 W
Voltage Required
100 - 240 V V
Power consumption (max)
77.9 W W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
64 W
Power over Ethernet (PoE) power per port
30 W W
Total Power over Ethernet (PoE) budget
64 W W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 95%
Heat dissipation
265.85 BTU/h
Operating temperature (T-T)
0 - 40 °C °C
Storage temperature (T-T)
-40 - 70 °C °C
Operating relative humidity (H-H)
0 - 90% %
Storage relative humidity (H-H)
0 - 95% %
Heat dissipation
265.85 BTU/h BTU/h
Weight & dimensions
Width
171 mm
Depth
97.8 mm
Height
28.6 mm
Weight
430 g
Width
171 mm mm
Depth
97.8 mm mm
Height
28.6 mm mm
Weight
430 g g
Certificates
Compliance certificates
CE, RoHS
Certification
FCC Class B, CE Class B, VCCI Class B, BSMI cUL, CE LVD, CB, BSMI
Logistics data
Harmonized System (HS) code
85176990
Sustainability
Sustainability compliance
Yes
General
Enclosure Type
Desktop
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 (PoE)
Device Type
Switch - 8 ports - smart
Performance
Switching capacity: 16 Gbps, Forwarding performance: 11.9 Mpps
Features
Flow control, Layer 2 switching, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, QoS, Cable Diagnostics Function, bandwidth control, D-Link Green Technology, fanless, 1.5MB packet buffer, WRR, loopback detection, DSCP based QoS
D-Link DGS 1100-08PV2

Disclaimers

  • Product data is provided by CNET, we do not warrant the accuracy and completeness of the material contained in this data sheet
