D-Link DGS 1024D
Thumbnail 0
Thumbnail 1
Thumbnail 2
Thumbnail 3

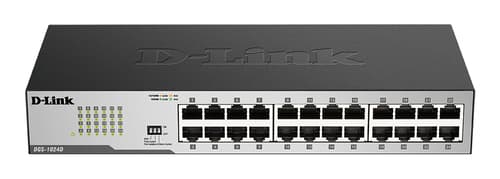

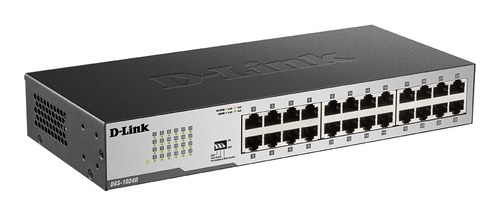

D-Link DGS 1024D

Manuf P/N: DGS-1024D/B
APAXON#: 2421340
EAN: 790069269929
D-Link 24-port 10/100/1000 Gigabit Desktop Switch
Weight: 2.38 KG
  • The DGS-1024D switches bring the speed of Gigabit Ethernet to all ports for a truly high-speed network. If your network has a mix of legacy and modern connection interfaces, each port allows for standard Ethernet, Fast Ethernet, or Gigabit Ethernet connections. You have the latest technology available to every computer and device connected to your network
  • The DGS-1024D switches incorporate several advanced features to help simplify and improve network management and efficiency. Flow Control throttles connections to ensure reliability during heavy usage periods by reducing packet loss and wasteful data re-transmission. In addition, Storm Control and Port Isolation mitigate the effects of broadcast storms caused by rogue software and malware, which can propagate across the network and bring communication to a standstill
  • The DGS-1024D feature a durable, compact metal case alongside a fanless design allowing for improved heat dissipation while maintaining silent operation. The 24-Port Gigabit Unmanaged Switch series is small, lightweight, wall-mountable, and is ideal for any business with demanding requirements and a small budget
  • The 24-Port Gigabit Unmanaged Switch series helps you conserve energy automatically through several methods. Link status detection automatically powers down ports that have no link, allowing the switches to save substantial amounts of power by cutting power usage for unused ports or any ports connected to computers that have been shut down
UK Stock1
ConditionNew
Price £ 64.80
Price inc. VAT
£ 77.76
Quantity
|

Sales & Technical Enquiries

Product Summary

This desktop switch offers an inexpensive alternative to fiber optics for the SOHO and small and medium business (SMB). Increasing network loads can be handled with the increased bandwidth of Gigabit Ethernet. The switch provides 24 Gigabit ports in the commonly used Ethernet format, so it works seamlessly with existing network cables (Cat5 or higher). Up to 2000 Mbps can be achieved in full-duplex mode, giving workstations bottleneck-free access to server data. The latest hardware revision of the switch (C1) introduces the first ever energy-saving features in the networking arena. By sensing whether attached devices are ON or OFF and estimating the cable length, the switch is able to adjust its power consumption, for a total saving of up to 25%. Figure based on a scenario assuming that PCs are used for 10 hours a day, powered off 14 hours a day and connected to the switch using 20m cables. This product is customized for use in the UK and Ireland.

Extended Specification

Data transmission
MAC address table
8000 entries entries
Maximum data transfer rate
1 Gbit/s Gbit/s
Packet buffer memory
0.5 MB MB
MAC address table
8000 entries
Maximum data transfer rate
1 Gbit/s
Packet buffer memory
0.5 MB
Power
Power consumption (typical)
27.5 W W
Power consumption (typical)
27.5 W
Other features
Dimensions (WxDxH)
280 x 180 x 44 mm mm
Dimensions (WxDxH)
280 x 180 x 44 mm
I/O ports
10BASE-T, 100BASE-TX & 1000BASE-T
Operational conditions
Storage temperature (T-T)
-10 - 55 °C °C
Operating relative humidity (H-H)
0 - 40% %
Storage temperature (T-T)
-10 - 55 °C
Operating relative humidity (H-H)
0 - 40%
Weight & dimensions
Weight
1.81 kg kg
Weight
1.81 kg
Packaging data
Package width
262 mm mm
Package depth
391 mm mm
Package height
102 mm mm
Package weight
2.5 kg kg
Package width
262 mm
Package depth
391 mm
Package height
102 mm
Package weight
2.5 kg
Technical details
Shipping (inner) case height
43.1 cm cm
Shipping (inner) case width
28.4 cm cm
Shipping (inner) case length
54.3 cm cm
Shipping (inner) case net weight
8.84 kg kg
Products per shipping (inner) case
5 pc(s) pc(s)
Pallet gross weight (air)
447.3 kg kg
Master (outer) cases per pallet (air)
32 pc(s) pc(s)
Products per pallet (air)
160 pc(s) pc(s)
Pallet gross length
110 cm cm
Pallet gross width
120 cm cm
Pallet height (air)
185.9 cm cm
Pallet gross weight (sea)
447.3 kg kg
Master (outer) cases per pallet (sea)
32 pc(s) pc(s)
Products per pallet (sea)
160 pc(s) pc(s)
Pallet height (sea)
185.9 cm cm
Shipping (inner) case gross weight
13.4 kg kg
Shipping (inner) case height
43.1 cm
Shipping (inner) case width
28.4 cm
Shipping (inner) case length
54.3 cm
Shipping (inner) case net weight
8.84 kg
Products per shipping (inner) case
5 pc(s)
Pallet gross weight (air)
447.3 kg
Master (outer) cases per pallet (air)
32 pc(s)
Products per pallet (air)
160 pc(s)
Pallet gross length
110 cm
Pallet gross width
120 cm
Pallet height (air)
185.9 cm
Pallet gross weight (sea)
447.3 kg
Master (outer) cases per pallet (sea)
32 pc(s)
Products per pallet (sea)
160 pc(s)
Pallet height (sea)
185.9 cm
Shipping (inner) case gross weight
13.4 kg
Management features
Switch type
Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Design
Rack mounting
Yes
Stackable
No
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Logistics data
Harmonized System (HS) code
85176990
General
Enclosure Type
Desktop
Built-in Devices
Led panel
Subtype
Gigabit Ethernet
Features
Flow control, full duplex capability, auto-sensing per device, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward
Ports
24 x 10/100/1000
Device Type
Switch - 24 ports - unmanaged
Status Indicators
Port transmission speed, power, link/activity
D-Link DGS 1024D
