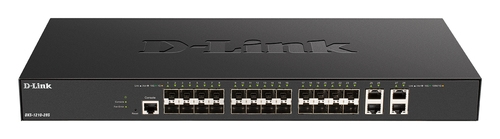

D-Link DXS 1210-28S

Name: D-Link DXS 1210-28S
Brand: D-Link
SKU: DXS-1210-28S
Price: 1259.88 GBP
Availability: InStock

Manuf P/N: DXS-1210-28S

APAXON#: 6176191

EAN: 790069456817

D-Link DXS 1210-28S
Switch
smart
24 x 10GBase-X + 4 x 10Gb Ethernet
rack-mountable
Weight: 4.56 KG

Managed L2/L3 Web-based management SNMP v1/v2c/v3
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 4 Console port: RJ-45
Cat6, Cat6a, Cat7 10G support
MAC address table: 32000 entries Switching capacity: 560 Gbit/s

UK Stock1

ConditionNew

Price £ 1,259.88

Price inc. VAT

£ 1,511.86

Quantity

Notify me when available.

Sales & Technical Enquiries

Phone: 0161 464 9941Email: sales@apaxon.co.uk

Product Summary

The D-Link DXS-1210-28S 10 Gigabit Ethernet smart managed switch is a cost-effective capable for a range of network needs in any business environment. Supporting a combination of 10GBase-T and SFP ports, this switch provides connection flexibility across a network allowing for easier network integration. With high performance and low latency, the DXS-1210-28S fulfills the needs for virtualization, cloud services, and server-to-server applications.

Extended Specification

Data transmission

MAC address table

32000 entries entries

Switching capacity

560 Gbit/s Gbit/s

Throughput

416.64 Mpps Mpps

MAC address table

32000 entries

Switching capacity

560 Gbit/s

Throughput

416.64 Mpps

Store-and-forward

Yes

Jumbo frames support

Yes

Jumbo frames

9000

Design

Number of fans

2 fan(s) fan(s)

Rack mounting

Yes

Stackable

Form factor

Product colour

Black

LED indicators

Activity, Link, Speed

Number of fans

2 fan(s)

Power

Voltage Required

AC 120/230 V (50/60 Hz) V

Power consumption (max)

85.7 W W

Power consumption (max)

85.7 W

Operational conditions

Operating temperature (T-T)

-5 - 50 °C °C

Storage temperature (T-T)

-20 - 70 °C °C

Operating relative humidity (H-H)

0 - 95% %

Storage relative humidity (H-H)

0 - 95% %

Operating temperature (T-T)

-5 - 50 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Weight & dimensions

Width

441 mm mm

Depth

209.5 mm mm

Height

44 mm mm

Weight

3.27 kg kg

Width

441 mm

Depth

209.5 mm

Height

44 mm

Weight

3.27 kg

Management features

Switch type

Managed

Switch layer

L2/L3

Quality of Service (QoS) support

Yes

Web-based management

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

10G Ethernet (100/1000/10000)

10G Ethernet (copper) ports quantity

SFP+ module slots quantity

Console port

RJ-45

Network

Networking standards

IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z

10G support

Yes

Cable types supported

Cat6, Cat6a, Cat7

Port mirroring

Yes

Flow control support

Yes

Link aggregation

Yes

Auto MDI/MDI-X

Yes

Spanning tree protocol

Yes

VLAN support

Yes

Number of VLANs

4094

Security

Access Control List (ACL)

Yes

Access Control List (ACL) rules

256

IGMP snooping

Yes

Protocols

Management protocols

SNMP v1/v2c/v3

GARP VLAN Registration Protocol (GVRP)

Yes

Power over Ethernet (PoE)

Packaging content

Manual

Yes

Certificates

Certification

CE Class A FCC Class A VCCI Class A IC BSMI

Logistics data

Harmonized System (HS) code

85176990

General

Flash Memory

64 MB

RAM

256 MB

Enclosure Type

Rack-mountable

Subtype

10 Gigabit Ethernet

Routing Protocol

Static IPv4 routing, static IPv6 routing

Device Type

Switch - 28 ports - smart

Ports

24 x 10GBase-X + 4 x 10Gb Ethernet

Performance

Switching capacity: 560 Gbps Forwarding performance: 416,64 Mpps

Capacity

VLAN IDs: 4094 IPv4 routes (static): 128 IPv6 routes (static): 64 Static ARP entries: 384

Processor

X ARM Cortex-A9 + Cortex-R5

Authentication Method

Secure Shell v.2 (SSH2), RADIUS, Extensible Authentication Protocol (EAP)

Remote Management Protocol

SNMP 1, SNMP 3, SNMP 2c, CLI, Telnet, TFTP, HTTP, RMON 1, RMON 2

Status Indicators

Link/activity/speed, power, fan

Encryption Algorithm

TLS 1.0, TLS 1.1, TLS 1.2, PEAP, TTLS

Features

BOOTP support, DHCP client, TFTP client, auto-uplink (auto MDI/MDI-X), SNTP support, DHCP relay, system log, Cable Diagnostics Function, ACL support, DHCP snooping, IP source guard, Safeguard Engine, DoS attack prevention, DAI, Broadcast Storm Control, Port Security, Multicast Storm Control, Unicast Storm Control, CoS, QoS, DWRR, WRR queuing, DRR, ToS, MLD snooping, MSTP support, RSTP support, STP support, store and forward, ERPS, flow control, VLAN support, IGMP snooping, D-Link Green Technology, bandwidth control, port based access control, host based access control, GVRP, LLDP support, static routing, port mirroring, IP-MAC binding, DHCP server, 4MB packet buffer, Smart Fans
