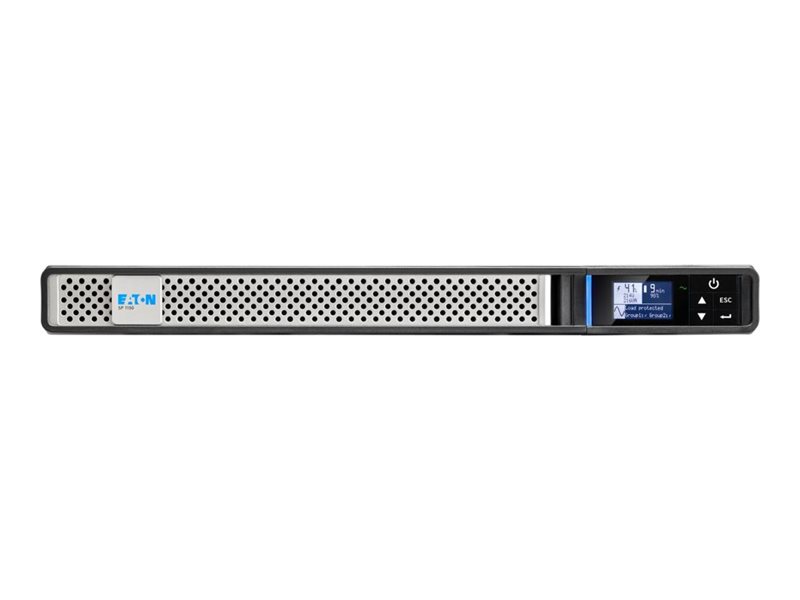

Eaton 5P 1150i - Gen 2 - UPS (rack-mountable)
Thumbnail 0
Thumbnail 1

Eaton 5P 1150i - Gen 2 - UPS (rack-mountable)

Manuf P/N: 5P1150IRNG2BS
APAXON#: 10444542
EAN: 3553340710513
Eaton 5P 1150i
Gen 2
UPS (rack-mountable)
AC 200/208/220/230/240 V
920 Watt
1150 VA
1-phase
9 Ah
RS-232, USB, RJ-45
output connectors: 6
1U
19"
black, silver
Weight: 19.50 KG
  • Manageability
  • Performance and efficiency
  • Pure sinewave output
  • Adjustable tolerance and sensitivity
  • Stronger, longer battery life
  • Flexibility
UK Stock15
ConditionNew
Price £ 956.33
Price inc. VAT
£ 1,147.60
Quantity
|

Sales & Technical Enquiries

Product Summary

Eaton 5P is an energy efficient line-interactive UPS with advanced LCD and energy metering features. The graphical LCD display provides clear information on the UPS's status and measurements on a single screen. Enhanced configuration capabilities are also available with easy-to-use navigation keys.

Extended Specification

General
Rack Size
19"
Colour
Black, silver
Device Type
UPS - rack-mountable
Height (Rack Units)
1U
Connections & Expansion
Expansion Slots
1 (total) / 0 (free) x Communication slot
Interfaces
1 x management (RS-232) - RJ-45, 1 x management (USB), 1 x remote power (on/off) - mini terminal block, Dry contact
Manufacturer Warranty
Service & Support
Limited warranty - electronics - 3 years, Limited warranty - batteries - 2 years
Network
Remote Management Interface
RS-232, USB, RJ-45
Miscellaneous
Rack Mounting Kit
Included
Cables Included
USB cable - external, 2 x power cable (IEC) - external, AC input cable (BS 1363) - external
Features
LVD, CB, EMC, RoHS, WEEE, IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, UL 1778, CAN/CSA-C22.2, UKCA, CM, UKR, KCC, cTUVus, BIS
Included Accessories
Cable locking system, network management card
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Sound Emission
35 dB
Humidity Range Operating
0 - 90% (non-condensing)
Battery
Quantity
4
Technology
Lead Acid
Capacity
9 Ah
Voltage Provided
6 V
Features
Maintenance free
Power Device
Frequency Provided
50/60 Hz
Input Voltage
AC 200/208/220/230/240 V
UPS Technology
Line interactive
Output Waveform
Sinewave
Input Voltage Range
AC 160 - 294 V
Input Voltage Range (Adjustable)
AC 150 - 294 V
Frequency Required
47 - 70 Hz
Efficiency
98.2%
Output Voltage
AC 200/208/220/230/240 V + 6% / - 10% - 50/60 Hz
Input Wiring
1-phase
Input Connectors
1 x power IEC 60320 C14
Power Output Connectors Details
6 x power IEC 60320 C13
Power Capacity
920 Watt / 1150 VA
Weight & Dimensions
Width
43.8 cm
Depth
50.9 cm
Height
4.32 cm
Weight
14.54 kg
Eaton 5P 1150i - Gen 2 - UPS (rack-mountable)

Disclaimers

  • Actual configuration might differ from illustration
