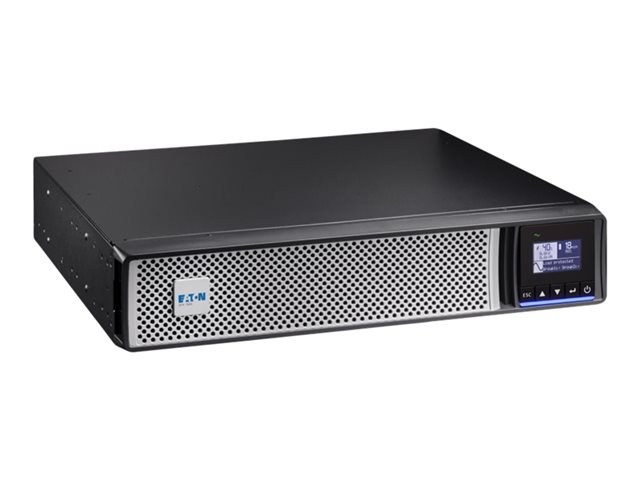

Eaton 5PX G2
Thumbnail 0

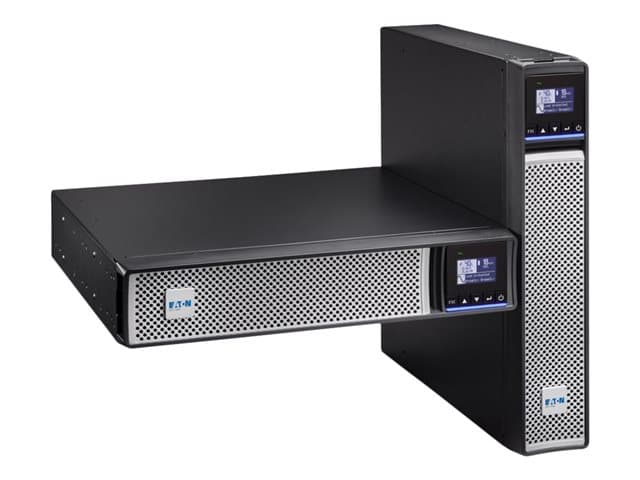

Thumbnail 1

Eaton 5PX G2

Manuf P/N: 5PX3000IRTNG2BS
APAXON#: 6996530
EAN: 3553340620935
Eaton 5PX G2
Netpack
UPS (rack-mountable / external)
AC 200/208/220/230/240 V
3000 Watt
3000 VA
1-phase
9 Ah
RS-232, USB, Ethernet 10/100/1000
output connectors: 10
2U
black, silver
Weight: 39.30 KG
UK Stock20
ConditionNew
Price £ 2,074.51
Price inc. VAT
£ 2,489.41
Quantity
|

Sales & Technical Enquiries

Product Summary

The Eaton 5PX UPS provides line-interactive, backup power and scalable runtimes for servers, storage systems, VoIP gear and network equipment. Designed with multiple managed outlet segments, you can monitor energy consumption and view it on the new LCD screen. It was also designed to provide more available power, has an efficiency rating of up to 99% and offers additional runtime with extended battery modules.

Extended Specification

General
Colour
Black, silver
Height (Rack Units)
2U
Device Type
UPS - rack-mountable / external
Connections & Expansion
Expansion Slots
1 (total) / 0 (free) x Expansion Slot
Interfaces
1 x management (RS-232) - 9 pin D-Sub (DB-9), 1 x management (USB) - 4 pin USB Type B, 1 x remote power (on/off) - mini terminal block, 1 x remote power off - mini terminal block, 1 x relay output - mini terminal block, 1 x management (Gigabit Ethernet) - RJ-45, 1 x USB - 4 pin USB Type A, 1 x management (USB) - Micro-USB Type B
Manufacturer Warranty
Service & Support
Limited warranty - 3 years, Limited warranty - batteries - 2 years
Network
Remote Management Interface
RS-232, USB, Ethernet 10/100/1000
Remote Management Protocol
SNMP 1, SNMP 3, HTTP, HTTPS, SSH, CLI, SMTP, NTP, SMTPS, DHCP, IPv4, IPv6
Miscellaneous
Rack Mounting Kit
Included
Included Accessories
Tower stand
Cables Included
3 x power cable - external, USB cable - external, Serial cable - external
Features
Advance Battery Management (ABM), LCD display, Automatic Voltage Regulation (AVR), deep discharge protection, automatic shut down, automatic self-test
Compliant Standards
UL 1778, IEC 62040-3, IEC 62040-2, RoHS, KCC, cTUVus, REACH, CSA 22.2, EN 62040-2, EAC, EN 62040-3, IEC 62040-1, EN 62040-1, CM, UKCA
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Sound Emission
40 dB
Humidity Range Operating
0 - 90% (non-condensing)
Battery
Quantity
6
Technology
Lead Acid
Voltage Provided
12 V
Capacity
9 Ah
Type
Expandable
Features
Maintenance free
Run Time (Up To)
68 min at 300 Watts, 39 min at 500 Watts, 23 min at 800 Watts, 13 min at 1200 Watts, 7 min at 1800 Watts, 4 min at 2500 Watts
Power Device
Input Voltage
AC 200/208/220/230/240 V
UPS Technology
Line interactive
Output Waveform
Sinewave
Input Voltage Range
AC 160 - 294 V
Input Voltage Range (Adjustable)
AC 150 - 294 V
Frequency Required
40 - 70 Hz
Input Connectors
1 x power BS
Output Voltage
AC 200/208/220/230/240 V 50/60 Hz
Input Wiring
1-phase
Power Capacity
3000 Watt / 3000 VA
Frequency Provided
50/60 Hz ± 0.1Hz
Power Output Connectors Details
8 x power IEC 60320 C13, 2 x power IEC 60320 C19
Weight & Dimensions
Depth
60.3 cm
Width
43.8 cm
Height
8.55 cm
Weight
32.68 kg
Sustainability
ENERGY STAR
Yes
Eaton 5PX G2

Disclaimers

  • Actual configuration might differ from illustration

Similar Products

Compare
Eaton 5PX G2

Eaton 5PX G2

Your Choice
Stock20
£2074.51
Eaton 3P Ellipse 1700 USB IEC

Eaton 3P Ellipse 1700 USB IEC

Cheaper
Stock122
£265.48
Eaton 5P 1150i - Gen 2 - UPS (rack-mountable)

Eaton 5P 1150i - Gen 2 - UPS (rack-mountable)

Cheaper
Stock15
£956.33

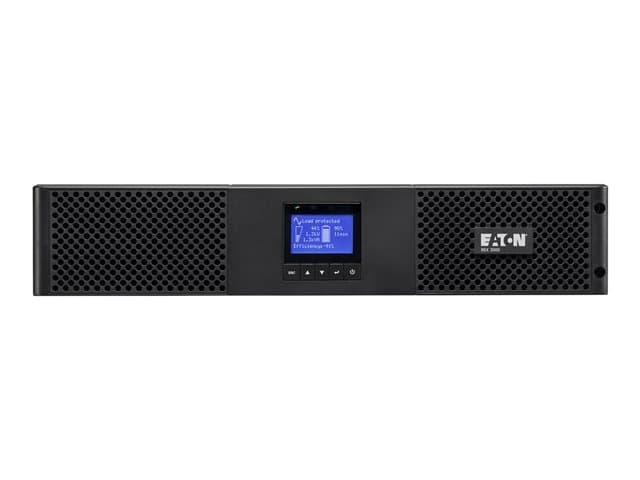

Eaton 9SX 9SX1500IRBS - UPS (rack-mountable)
