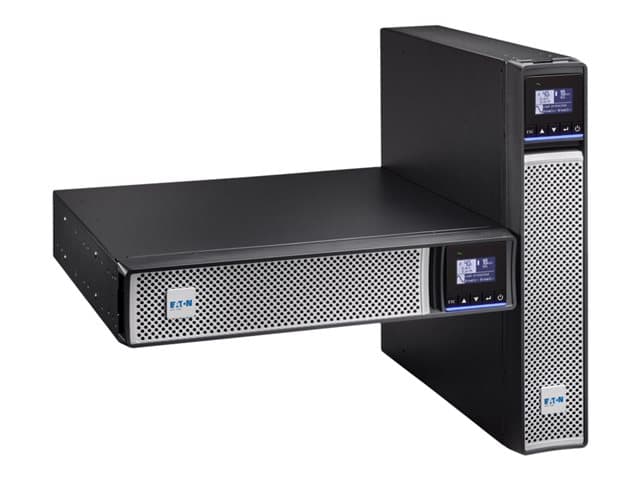

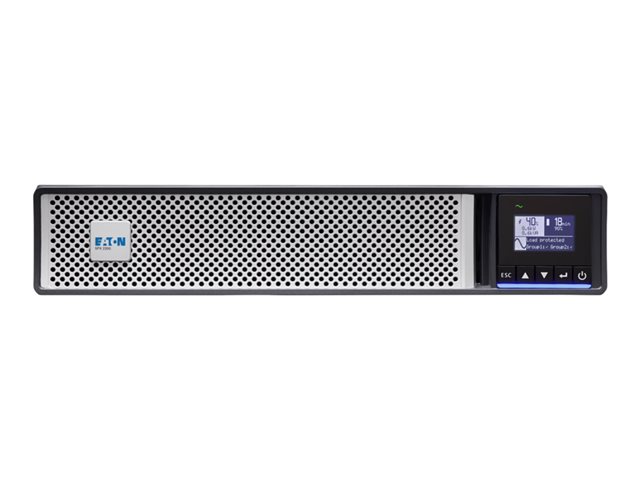

Eaton 5PX G2 - Netpack - UPS (rack-mountable / external)
Thumbnail 0
Thumbnail 1

Eaton 5PX G2 - Netpack - UPS (rack-mountable / external)

Manuf P/N: 5PX2200IRTNG2BS
APAXON#: 6996526
EAN: 3553340620928
Eaton 5PX G2
Netpack
UPS (rack-mountable / external)
AC 150
294 V
2200 Watt
2200 VA
1-phase
7 Ah
RS-232, USB, Ethernet 10/100/1000
output connectors: 10
2U
black, silver
Weight: 35.68 KG
UK Stock11
ConditionNew
Price £ 1,435.78
Price inc. VAT
£ 1,722.94
Quantity
|

Sales & Technical Enquiries

Product Summary

The Eaton 5PX UPS provides line-interactive, backup power and scalable runtimes for servers, storage systems, VoIP gear and network equipment. Designed with multiple managed outlet segments, you can monitor energy consumption and view it on the new LCD screen. It was also designed to provide more available power, has an efficiency rating of up to 99% and offers additional runtime with extended battery modules.

Extended Specification

General
Colour
Black, silver
Height (Rack Units)
2U
Device Type
UPS - rack-mountable / external
Connections & Expansion
Expansion Slots
1 (total) / 0 (free) x Expansion Slot
Interfaces
1 x management (RS-232) - RJ-45, 1 x management (USB) - 4 pin USB Type B, 1 x management (Gigabit Ethernet) - RJ-45, Remote power (on/off) - mini terminal block, Relay output - mini terminal block
Manufacturer Warranty
Service & Support
Limited warranty - electrical components and functions - 3 years, Limited warranty - batteries - 2 years
Network
Remote Management Protocol
SNMP
Remote Management Interface
RS-232, USB, Ethernet 10/100/1000
Miscellaneous
Rack Mounting Kit
Included
Included Accessories
Tower stand
Cables Included
2 x power cable (IEC), Power cable 1.8 m
Features
Advance Battery Management (ABM), LCD display, Automatic Voltage Regulation (AVR)
Compliant Standards
UL 1778, IEC 62040-3, IEC 62040-2, RoHS, cTUVus, REACH, EN 62040-2, EAC, EN 62040-3, IEC 62040-1, EN 62040-1, CAN/CSA C22.2, CM, UKCA
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 90% (non-condensing)
Battery
Technology
Lead Acid
Voltage Provided
12 V
Capacity
7 Ah
Features
Maintenance free
Quantity
6 (supported)
Power Device
Frequency Provided
50/60 Hz
UPS Technology
Line interactive
Output Waveform
Sinewave
Input Voltage Range
AC 160 - 294 V
Input Voltage
AC 150 - 294 V
Input Voltage Range (Adjustable)
AC 150 - 294 V
Frequency Required
47 - 70 Hz
Output Voltage
AC 200/208/220/230/240 V + 6% / - 10% - 50/60 Hz
Input Wiring
1-phase
Power Capacity
2200 Watt / 2200 VA
Power Output Connectors Details
8 x power IEC 60320 C13, 2 x power IEC 60320 C19
Input Connectors
1 x power IEC 60320 C20
Weight & Dimensions
Height
24 cm
Depth
77 cm
Width
58.8 cm
Weight
28.68 kg
Sustainability
ENERGY STAR
Yes
Eaton 5PX G2 - Netpack - UPS (rack-mountable / external)

Disclaimers

  • Actual configuration might differ from illustration

Similar Products

Compare
Eaton 5PX G2 - Netpack - UPS (rack-mountable / external)

Eaton 5PX G2 - Netpack - UPS (rack-mountable / external)

Your Choice
Stock11
£1435.78

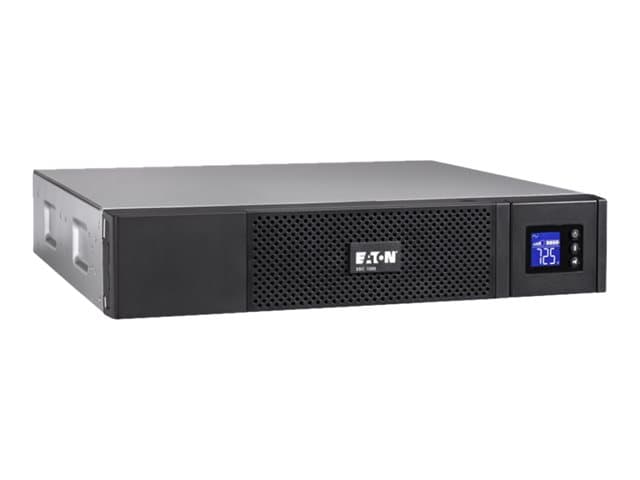

Eaton 5SC 1000iR
