Eaton Ellipse PRO 1200
UPS
AC 230 V
750 Watt
1200 VA
7 Ah
USB
output connectors: 8
2U
19"
Weight: 10.90 KG
Similar Products
Overview

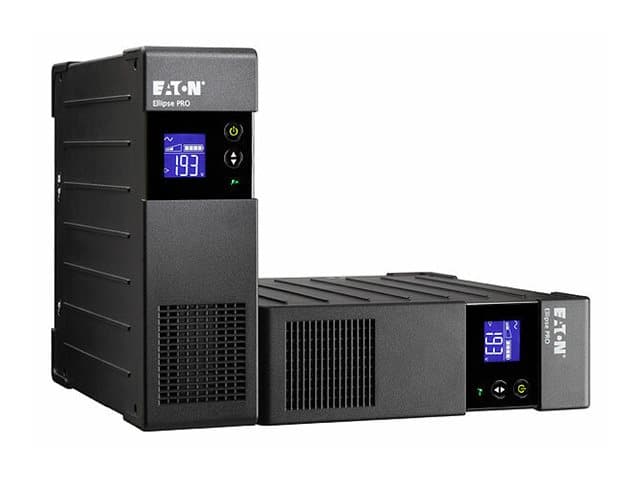

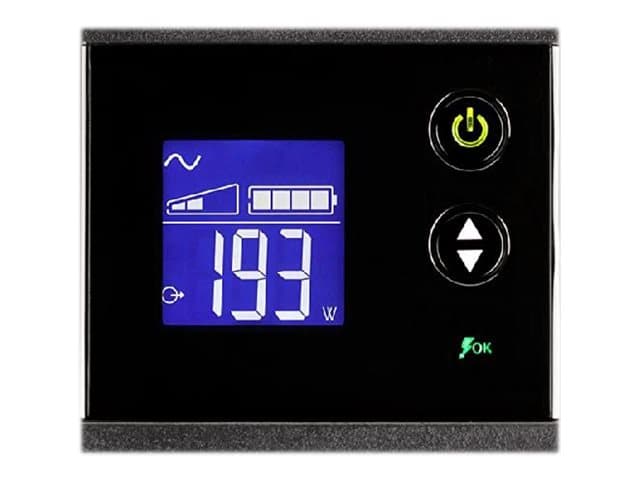

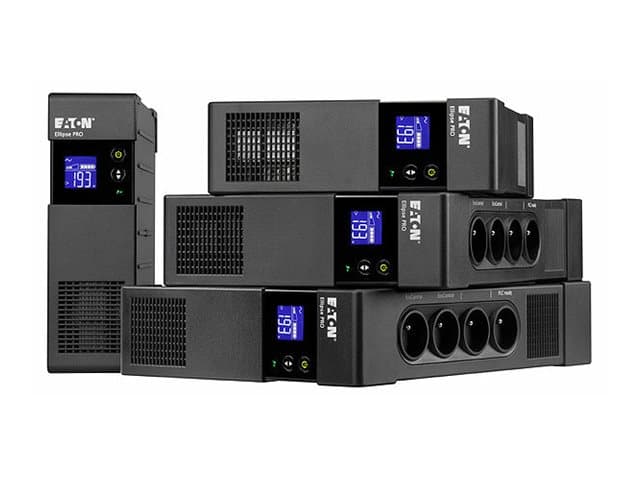

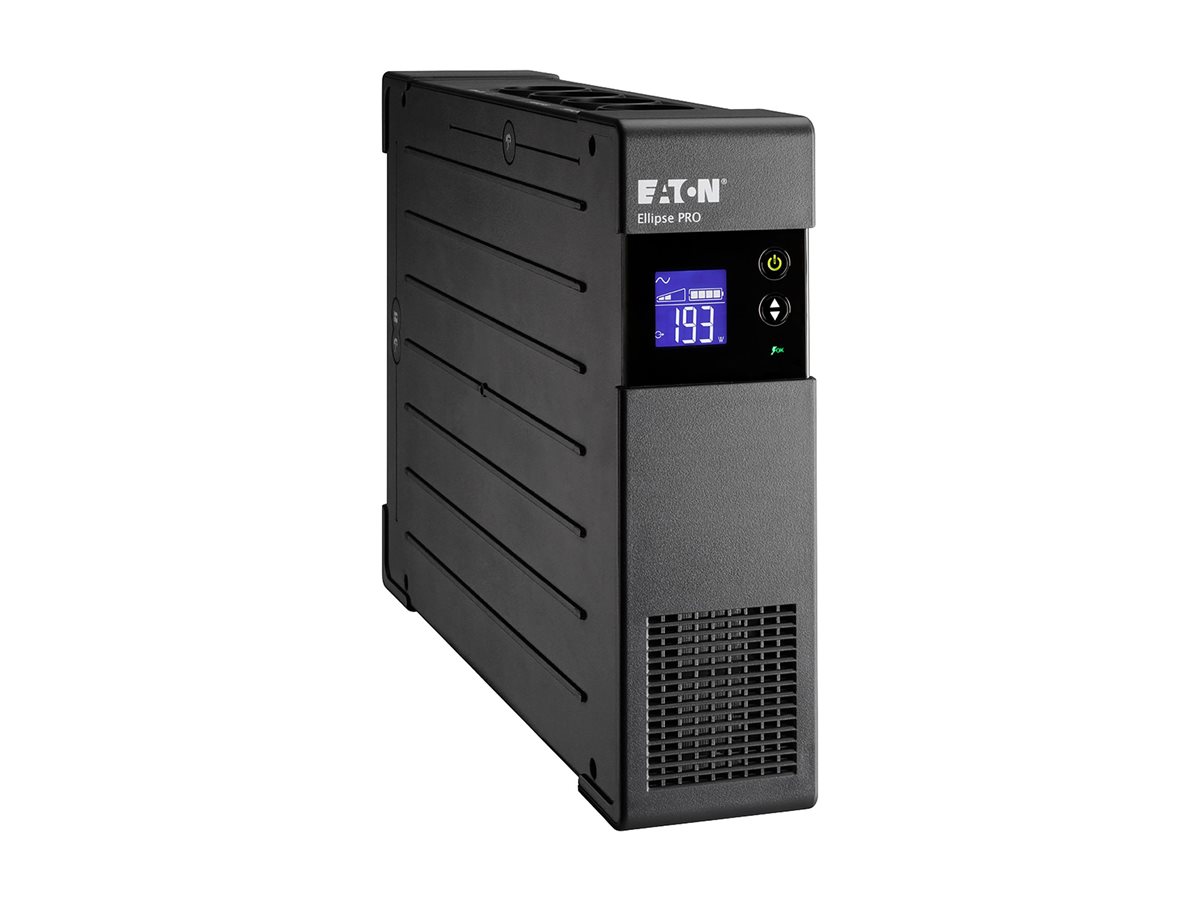

The Eaton Ellipse PRO 1200, 1200 VA, is a line interactive UPS specifically developed to protect workstations with demanding applications. As well as providing a power supply backed up by a battery to keep equipment operating during a power failure, the Ellipse PRO also provides effective protection against damaging surges. The Ellipse PRO features a LCD display for real time status and measurements. This model includes 2 Eco Control power outlets, that enable energy savings up to 20 percent. It complies fully with the requirements of the IEC 616431-1 standard. This UPS can be either placed as a tower, in a rack or be wall mounted. The Ellipse PRO also includes the Eaton Intelligent Power Manager software. It is an ideal protection for all business computers.
Specifications
General
- Rack Size
- 19"
- Height (Rack Units)
- 2U
- Device Type
- UPS - external
Connections & Expansion
- Interfaces
- 1 x management (USB) - 4 pin USB Type B
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years, Limited warranty - batteries - 3 years
Network
- Remote Management Interface
- USB
Miscellaneous
- Rack Mounting Kit
- Optional
- Cables Included
- USB cable - external
- Compliant Standards
- CB, IEC 62040-1-1, IEC 62040-2, IEC 61643-1, EN 62040-1-1, EN 62040-2
- Features
- Wall mountable, LCD display, Automatic Voltage Regulation (AVR), deep discharge protection, cold-start function, EcoControl Master/Control outlets
Software / System Requirements
- Software Included
- Eaton UPS Companion
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 0 - 85%
Battery
- Quantity
- 2
- Technology
- Lead Acid
- Capacity
- 7 Ah
- Run Time (Up To)
- 9 min at half load, 5 min at 70% load
Power Device
- Frequency Required
- 50/60 Hz
- Frequency Provided
- 50/60 Hz
- Input Voltage
- AC 230 V
- Surge Suppression
- Yes
- UPS Technology
- Line interactive
- Circuit Protection
- Circuit breaker
- Input Voltage Range
- AC 165 - 285 V
- Input Voltage Range (Adjustable)
- AC 150 - 285 V
- Power Capacity
- 750 Watt / 1200 VA
- Dataline Surge Protection
- Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line
- Input Connectors
- 1 x power IEC 60320 C14

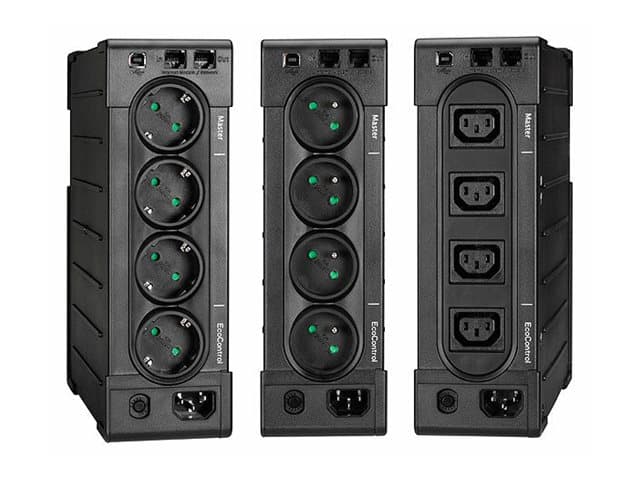

- Power Output Connectors Details

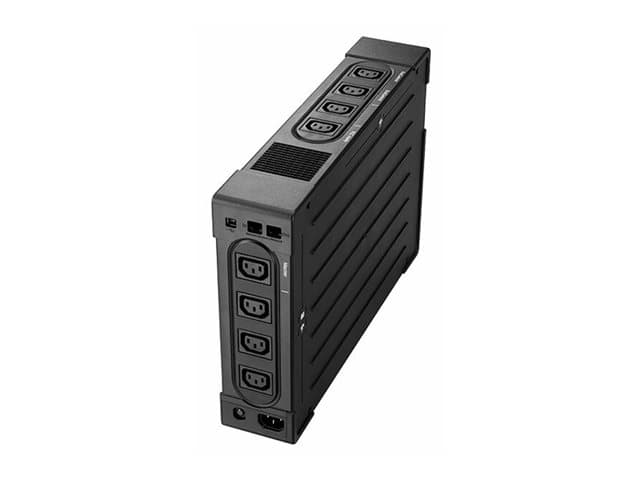

- 4 x power IEC 60320 C13 (UPS and surge), 4 x power IEC 60320 C13 (surge)
- Output Voltage
- AC 220/230/240 V + 15% / - 20% - 50/60 Hz
Weight & dimensions
- Height
- 27.5 cm
- Depth
- 39 cm
- Width
- 8.2 cm
- Weight
- 9.9 kg
