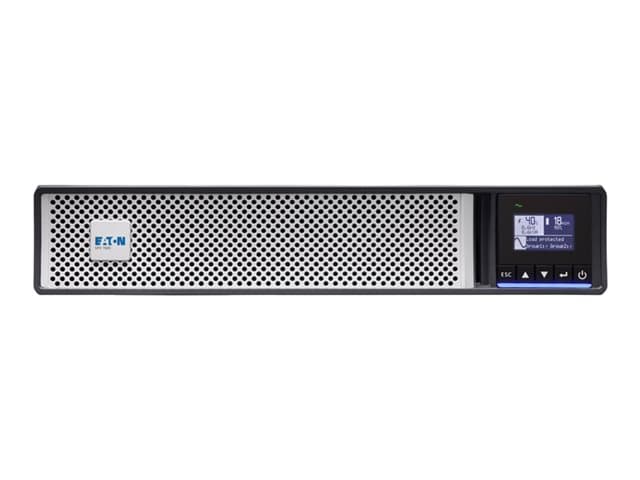

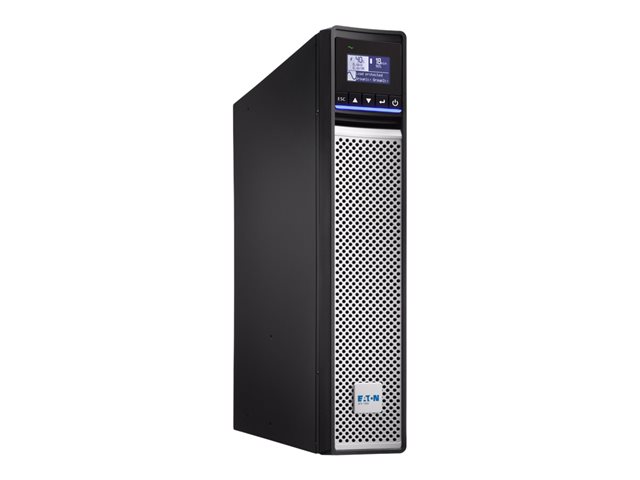

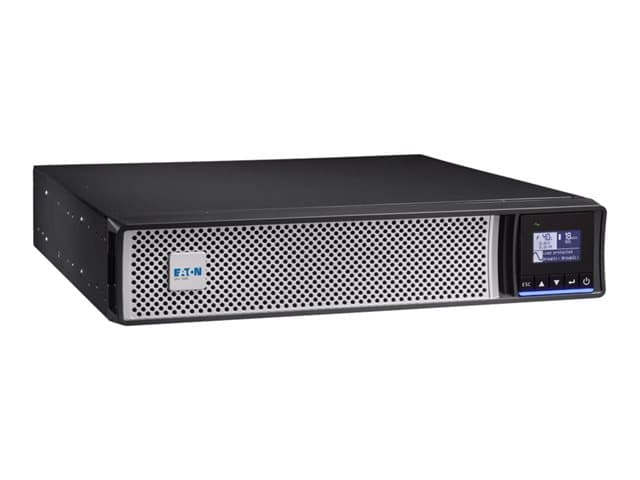

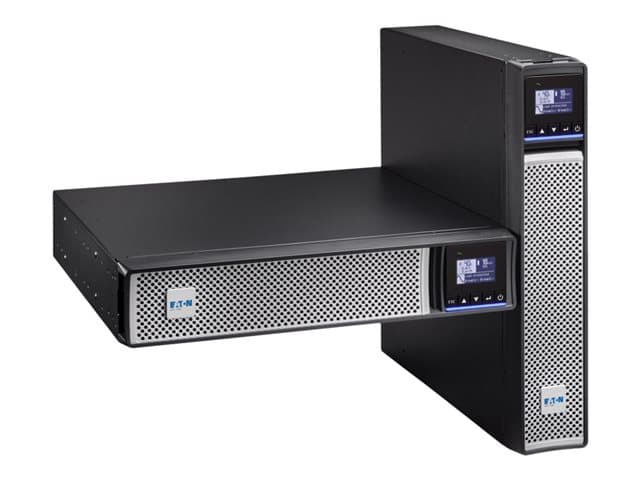

Eaton 5PX G2
UPS (rack-mountable / external)
AC 150
294 V
1500 Watt
1500 VA
1-phase
9 Ah
RS-232, USB, Ethernet 10/100/1000
output connectors: 8
2U
black, silver
Weight: 28.26 KG
Similar Products
Overview
The Eaton 5PX UPS provides line-interactive, backup power and scalable runtimes for servers, storage systems, VoIP gear and network equipment. Designed with multiple managed outlet segments, you can monitor energy consumption and view it on the new LCD screen. It was also designed to provide more available power, has an efficiency rating of up to 99% and offers additional runtime with extended battery modules.
Specifications
General
- Colour
- Black, silver
- Height (Rack Units)
- 2U
- Device Type
- UPS - rack-mountable / external
Connections & Expansion
- Expansion Slots
- 1 (total) / 0 (free) x Expansion Slot
- Interfaces
- 1 x management (RS-232) - RJ-45, 1 x management (USB) - 4 pin USB Type B, 1 x management (Gigabit Ethernet) - RJ-45, Remote power (on/off) - mini terminal block, Relay output - mini terminal block
Manufacturer Warranty
- Service & Support
- Limited warranty - electrical components and functions - 3 years, Limited warranty - batteries - 2 years
Network
- Remote Management Protocol
- SNMP
- Remote Management Interface
- RS-232, USB, Ethernet 10/100/1000
Miscellaneous
- Rack Mounting Kit
- Included
- Included Accessories
- Tower stand
- Features
- Advance Battery Management (ABM), LCD display, Automatic Voltage Regulation (AVR)
- Compliant Standards
- UL 1778, IEC 62040-3, IEC 62040-2, RoHS, cTUVus, REACH, EN 62040-2, EAC, EN 62040-3, IEC 62040-1, EN 62040-1, CAN/CSA C22.2, CM, UKCA
- Cables Included
- 2 x power cable (IEC), Power cable
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 90% (non-condensing)
Battery
- Technology
- Lead Acid
- Voltage Provided
- 12 V
- Capacity
- 9 Ah
- Features
- Maintenance free
- Quantity
- 4 (supported)
Power Device
- Frequency Provided
- 50/60 Hz
- UPS Technology
- Line interactive
- Output Waveform
- Sinewave
- Input Voltage Range
- AC 160 - 294 V
- Input Voltage
- AC 150 - 294 V
- Input Voltage Range (Adjustable)
- AC 150 - 294 V
- Frequency Required
- 47 - 70 Hz
- Output Voltage
- AC 200/208/220/230/240 V + 6% / - 10% - 50/60 Hz
- Input Wiring
- 1-phase
- Power Capacity
- 1500 Watt / 1500 VA
- Input Connectors
- 1 x power IEC 60320 C14
- Power Output Connectors Details
- 8 x power IEC 60320 C13
Weight & dimensions
- Height
- 24 cm
- Width
- 49.8 cm
- Weight
- 22.5 kg
- Depth
- 58.5 cm
Sustainability
- ENERGY STAR
- Yes
