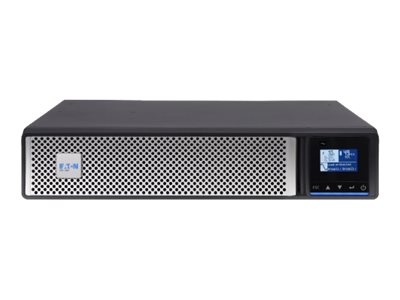

Eaton 5PX G2
UPS (rack-mountable / external)
AC 200/208/220/230/240 V
2200 Watt
2200 VA
1-phase
7 Ah
RS-232, USB
output connectors: 10
2U
black, silver
Weight: 35.54 KG
Similar Products
Overview
The Eaton 5PX UPS provides line-interactive, backup power and scalable runtimes for servers, storage systems, VoIP gear and network equipment. Designed with multiple managed outlet segments, you can monitor energy consumption and view it on the new LCD screen. It was also designed to provide more available power, has an efficiency rating of up to 99% and offers additional runtime with extended battery modules.
Specifications
General
- Colour
- Black, silver
- Height (Rack Units)
- 2U
- Device Type
- UPS - rack-mountable / external
Connections & Expansion
- Expansion Slots
- 1 (total) / 1 (free) x Expansion Slot
- Interfaces
- 1 x management (RS-232) - RJ-45, 1 x management (USB) - 4 pin USB Type B
Manufacturer Warranty
- Service & Support
- Limited warranty - electrical components and functions - 3 years, Limited warranty - batteries - 2 years
Network
- Remote Management Interface
- RS-232, USB
Miscellaneous
- Rack Mounting Kit
- Included
- Cables Included
- 2 x power cable (IEC), USB cable - external, Serial cable - external
- Features
- Advance Battery Management (ABM), LCD display, Automatic Voltage Regulation (AVR), deep discharge protection, automatic shut down, energy metre
- Compliant Standards
- UL 1778, IEC 62040-3, IEC 62040-2, RoHS, KCC, cTUVus, REACH, EN 62040-2, EAC, EN 62040-3, IEC 62040-1, EN 62040-1, CAN/CSA C22.2, CM, UKCA
- Included Accessories
- Tower stand, BS cord 16A
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Sound Emission
- 40 dB
- Humidity Range Operating
- 0 - 90% (non-condensing)
Battery
- Quantity
- 6
- Technology
- Lead Acid
- Voltage Provided
- 12 V
- Capacity
- 7 Ah
- Features
- Maintenance free
- Run Time (Up To)
- 50 min at 300 Watts, 28 min at 500 Watts, 16 min at 800 Watts, 9 min at 1200 Watts, 4 min at 1800 Watts
Power Device
- Input Voltage
- AC 200/208/220/230/240 V
- UPS Technology
- Line interactive
- Output Waveform
- Sinewave
- Input Voltage Range
- AC 160 - 294 V
- Input Voltage Range (Adjustable)
- AC 150 - 294 V
- Frequency Required
- 47 - 70 Hz
- Efficiency
- 98%
- Output Voltage
- AC 200/208/220/230/240 V + 6% / - 10% - 50/60 Hz
- Input Wiring
- 1-phase
- Frequency Provided
- 50/60 Hz ± 0.1Hz
- Power Capacity
- 2200 Watt / 2200 VA
- Power Output Connectors Details
- 8 x power IEC 60320 C13, 2 x power IEC 60320 C19
- Input Connectors
- 1 x power IEC 60320 C20
Weight & dimensions
- Depth
- 60.3 cm
- Width
- 43.8 cm
- Weight
- 28.2 kg
- Height
- 8.55 cm
Sustainability
- ENERGY STAR
- Yes
