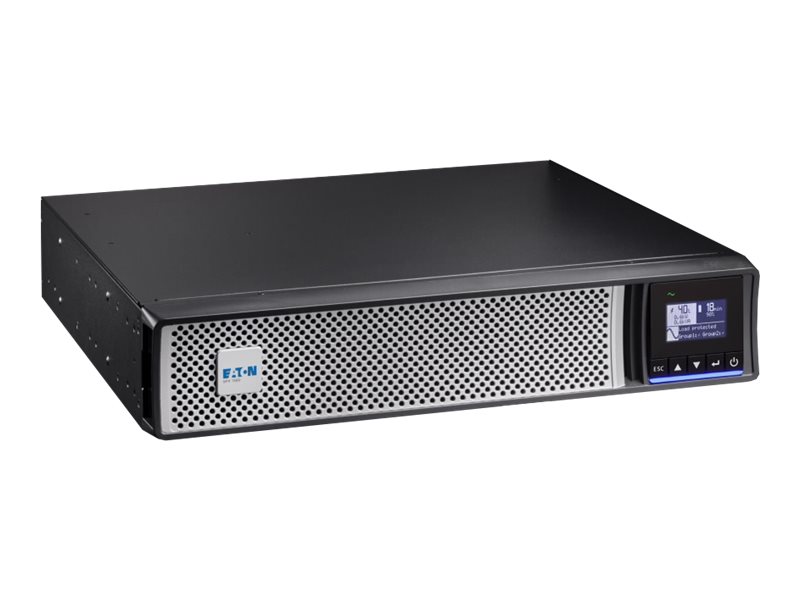

Eaton 5PX G2 - UPS (rack-mountable / external)
UPS (rack-mountable / external)
AC 200/208/220/230/240 V
3000 Watt
3000 VA
1-phase
9 Ah
RS-232, USB
output connectors: 10
2U
black, silver
Weight: 39.04 KG
- Delivers clean sinewave output
- Provides more real power (watts) to protect more equipment with a Unity power factor (VA=W)
- LCD display for real-time status and measurements
- Meter energy consumption (down to the managed outlet groups)
- Versatile product for rack or tower installation
Similar Products
Overview
The Eaton 5PX UPS provides line-interactive, backup power and scalable runtimes for servers, storage systems, VoIP gear and network equipment. Designed with multiple managed outlet segments, you can monitor energy consumption and view it on the new LCD screen. It was also designed to provide more available power, has an efficiency rating of up to 99% and offers additional runtime with extended battery modules.
Specifications
Miscellaneous
- Cables Included
- Power cable - external - 1.8 m, USB cable - external, Serial cable - external
- Features
- Advance Battery Management (ABM), LCD display, Automatic Voltage Regulation (AVR), deep discharge protection, automatic shut down, automatic self-test, energy metre
- Rack Mounting Kit
- Included
- Compliant Standards
- UL 1778, IEC 62040-3, IEC 62040-2, RoHS, KCC, cTUVus, REACH, CSA 22.2, EN 62040-2, EAC, EN 62040-3, IEC 62040-1, EN 62040-1, CM, UKCA
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Sound Emission
- 40 dB
- Humidity Range Operating
- 0 - 90% (non-condensing)
Battery
- Quantity
- 6
- Technology
- Lead Acid
- Voltage Provided
- 12 V
- Capacity
- 9 Ah
- Type
- Expandable
- Features
- Maintenance free
Power Device
- Output Voltage
- 50/60 Hz
- Frequency Provided
- 50/60 Hz
- Input Voltage
- AC 200/208/220/230/240 V
- UPS Technology
- Line interactive
- Output Waveform
- Sinewave
- Input Voltage Range
- AC 160 - 294 V
- Input Voltage Range (Adjustable)
- AC 150 - 294 V
- Frequency Required
- 47 - 70 Hz
- Input Wiring
- 1-phase
- Power Capacity
- 3000 Watt / 3000 VA
- Power Output Connectors Details
- 8 x power IEC 60320 C13, 2 x power IEC 60320 C19
- Input Connectors
- 1 x power IEC 60320 C20
Weight & dimensions
- Weight
- 32.638 kg
Sustainability
- ENERGY STAR
- Yes
General
- Colour
- Black, silver
- Height (Rack Units)
- 2U
- Device Type
- UPS - rack-mountable / external
Connections & Expansion
- Expansion Slots
- 1 (total) / 1 (free) x Expansion Slot
- Interfaces
- 1 x management (RS-232), 1 x management (USB)
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years Limited warranty - batteries - 2 years
Network
- Remote Management Interface
- RS-232, USB
