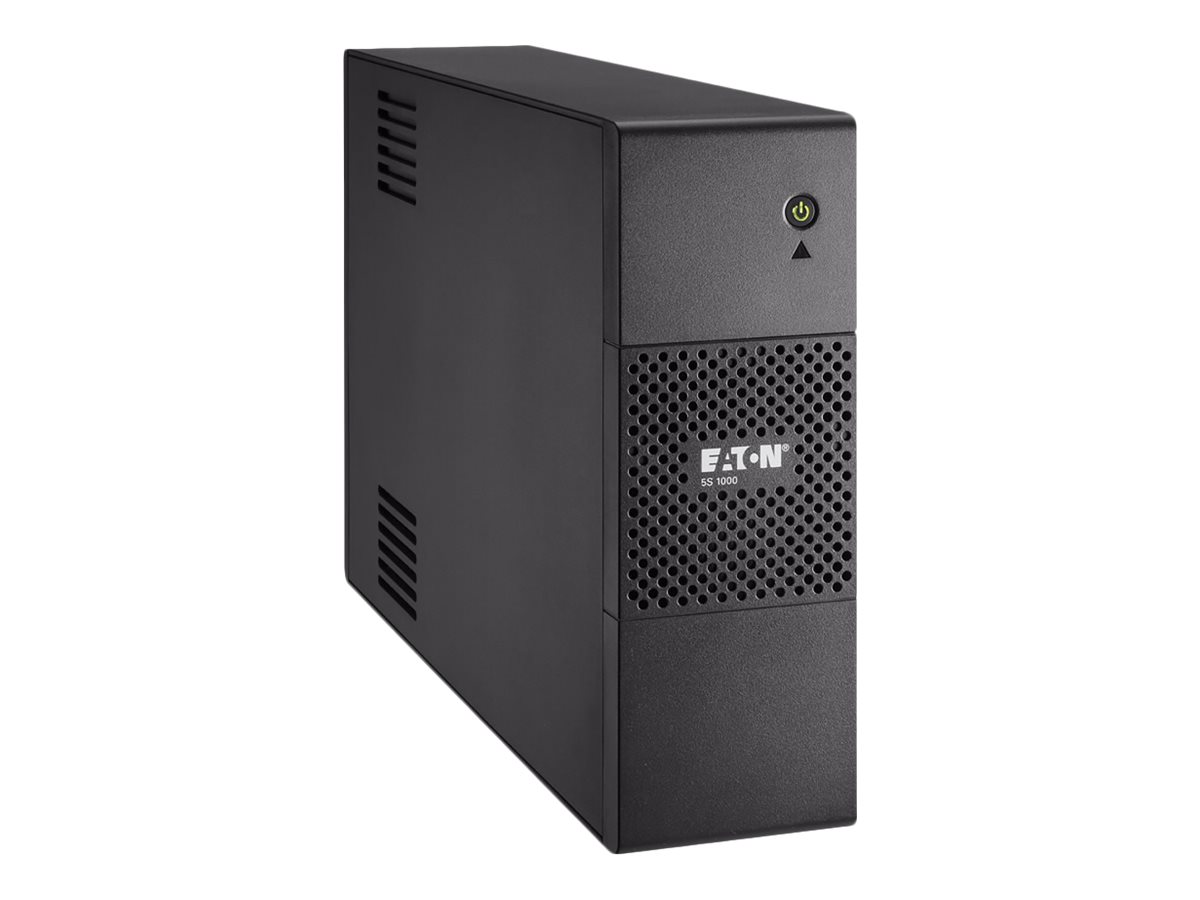

Eaton 5S 550i
Thumbnail 0
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4

Eaton 5S 550i

Manuf P/N: 5S550IBS
APAXON#: 7040303
EAN: 3553340620171
Eaton 5S 550i
UPS
AC 220/230/240 V
330 Watt
550 VA
1-phase
5 Ah
USB
output connectors: 4
black
Weight: 5.98 KG
  • Power management: enhance your power protection capabilities and ensure safe system shutdown
  • LCD display: access critical UPS information including battery time and outage tracking in a single screen view with the user friendly LCD
  • Eco-control: save up to 30 percent on energy consumption by shutting down non-essential peripherals when the computer is turned off
  • Convenient form factor: fit the 5S easily into tight spaces with its slim form factor
  • Surge protection: provide surge protection for network phone lines, cable TV and satellite applications
UK Stock12
ConditionNew
Price £ 114.28
Price inc. VAT
£ 137.14
Quantity
|

Sales & Technical Enquiries

Product Summary

The compact Eaton 5S UPS delivers backup power for desktop PCs and workstations. The eco-control capability enables you save up to 30 percent in energy consumption. The 5S displays critical UPS information on battery time and outage tracking through a user-friendly LCD interface.

Extended Specification

General
Colour
Black
Device Type
UPS - external
Connections & Expansion
Interfaces
1 x management (USB) - 4 pin USB Type B
Manufacturer Warranty
Service & Support
Limited warranty - 2 years, Limited warranty - batteries - 2 years
Network
Remote Management Interface
USB
Miscellaneous
Features
Automatic Voltage Regulation (AVR), deep discharge protection, cold-start function, booster technology, fader technology
Compliant Standards
CB, IEC 62040-1, EN 62040-1, IEC/EN 62040-4
Included Accessories
BS cord 10A
Cables Included
USB cable, 2 x power cable (IEC)
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
Humidity Range Operating
0 - 85%
Battery
Quantity
1
Technology
Lead Acid
Voltage Provided
12 V
Capacity
5 Ah
Features
Sealed
Run Time (Up To)
1 min at full load, 10 min at half load, 6 min at 70% load
Power Device
Input Voltage
AC 220/230/240 V
UPS Technology
Line interactive
Power Factor (PF)
0.6
Efficiency
97%
Circuit Protection
Circuit breaker
Frequency Required
46 - 70 Hz
Power Capacity
330 Watt / 550 VA
Input Voltage Range
AC 175 - 275 V
Dataline Surge Protection
Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line
Input Wiring
1-phase
Input Connectors
1 x power IEC 60320 C14
Output Voltage
AC 184-276 V
Power Output Connectors Details
3 x power IEC 60320 C13 (surge), 1 x power IEC 60320 C13 (UPS and surge)
Weight & Dimensions
Depth
26 cm
Height
25 cm
Width
8.7 cm
Weight
5.9 kg
Eaton 5S 550i

Disclaimers

  • Actual configuration might differ from illustration
