Eaton 5SC 750i
Thumbnail 0
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4

Eaton 5SC 750i

Manuf P/N: 5SC750IBS
APAXON#: 7040310
EAN: 3553340620409

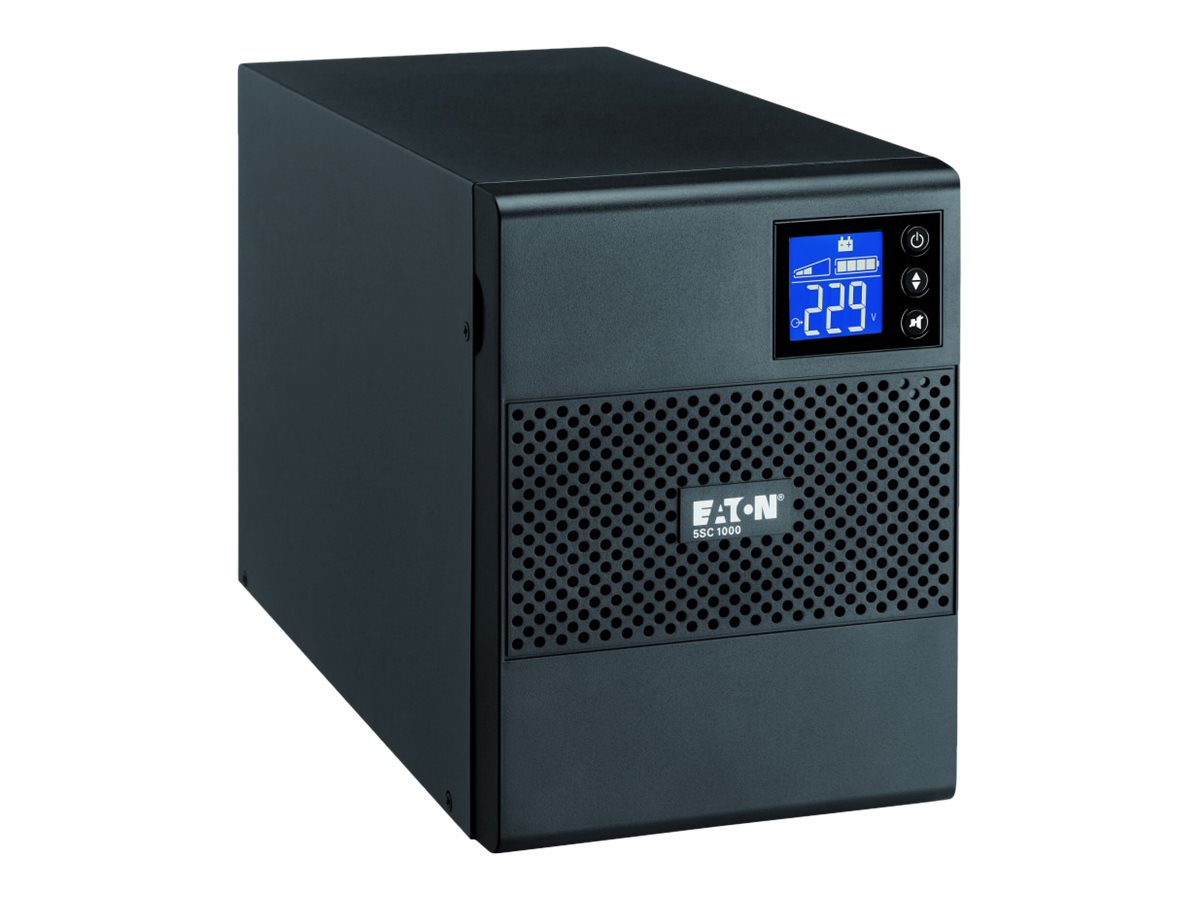

Eaton 5SC 750i
UPS
AC 220/230/240 V
525 Watt
750 VA
1-phase
7 Ah
RS-232, USB
output connectors: 6
black
Weight: 11.86 KG

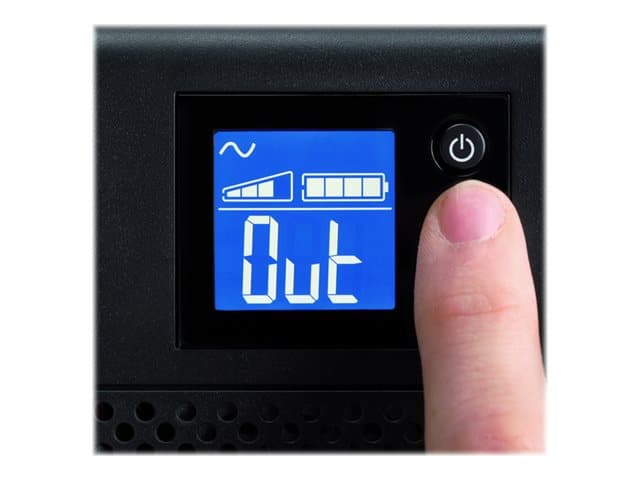

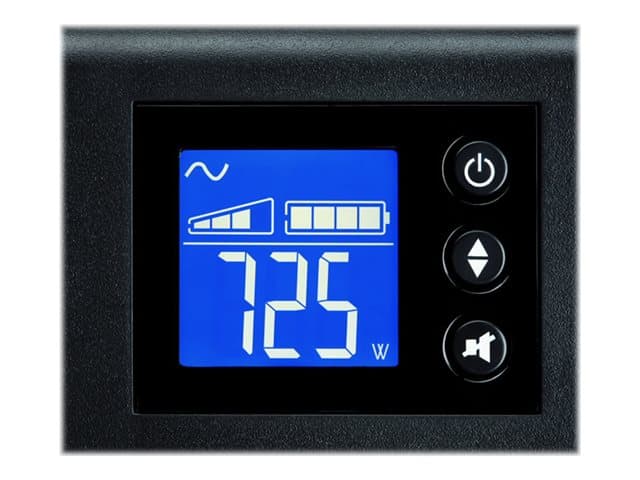

  • LCD interface clearly shows key information
  • Sinewave output for compatibility with today's small business servers
  • Compact design for easy integration even with space constraints and up to eight outlets for better flexibility
  • Reliable, long-lasting UPS with patented ABM technology that increases battery service life by up to 50%
  • Serial and USB ports are HID compliant for automatic integration into major OS
  • Eaton Intelligent Power software delivered as standard is compatible with all major operating systems
UK Stock12
ConditionNew
Price £ 272.09
Price inc. VAT
£ 326.51
Quantity
|

Sales & Technical Enquiries

Product Summary

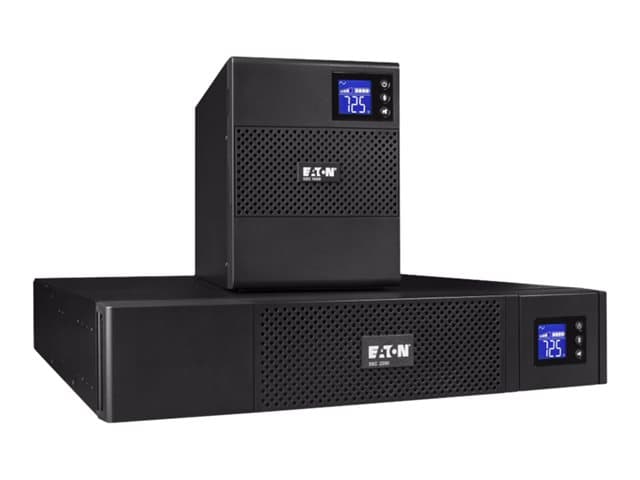

Eaton 5SC UPS provides line-interactive, affordable and reliable protection for small business servers. Complementing the range of industry leading UPSs, the 5SC includes an LCD interface for real-time status and measurements, and provides sinewave output for compatibility with today's most sensitive IT equipment.

Extended Specification

General
Colour
Black
Device Type
UPS - external
Connections & Expansion
Interfaces
1 x management (USB) - 4 pin USB Type B, 1 x management (RS-232) - RJ-45
Manufacturer Warranty
Service & Support
Limited warranty - 2 years, Limited warranty - batteries - 2 years
Network
Remote Management Interface
RS-232, USB
Miscellaneous
Features
Advance Battery Management (ABM), LCD display, deep discharge protection
Compliant Standards
UL 1778, CB, IEC 62040-1-1, IEC 62040-2, EN 62040-1-1, EN 62040-2
Included Accessories
BS cord 10A
Cables Included
USB cable, 2 x power cable (IEC), Serial cable
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
Humidity Range Operating
0 - 85%
Battery
Quantity
2
Technology
Lead Acid
Voltage Provided
12 V
Capacity
7 Ah
Run Time (Up To)
5 min at full load, 13 min at half load, 9 min at 70% load
Power Device
Input Voltage
AC 220/230/240 V
UPS Technology
Line interactive
Output Waveform
Sinewave
Efficiency
96%
Input Voltage Range
AC 184 - 276 V
Circuit Protection
Circuit breaker
Output Voltage
AC 220-240 V
Power Capacity
525 Watt / 750 VA
Input Wiring
1-phase

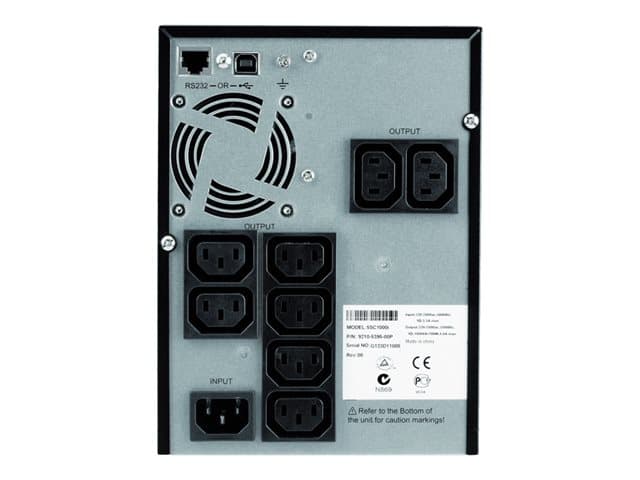

Input Connectors
1 x power IEC 60320 C14
Power Output Connectors Details
6 x power IEC 60320 C13
Frequency Required
45 - 55 / 55 - 65 Hz
Weight & Dimensions
Width
24 cm
Depth
48 cm
Weight
11.5 kg
Height
31 cm
Eaton 5SC 750i

Disclaimers

  • Actual configuration might differ from illustration
