Eaton Ellipse PRO 1600
Thumbnail 0
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5

Eaton Ellipse PRO 1600

Manuf P/N: ELP1600IEC
APAXON#: 2765457
EAN: 743172438256
Eaton Ellipse PRO 1600
UPS
AC 230 V
1000 Watt
1600 VA
9 Ah
USB
output connectors: 8
2U
19"
Weight: 13.00 KG
UK Stock38
ConditionNew
Price £ 378.88
Price inc. VAT
£ 454.66
Quantity
|

Sales & Technical Enquiries

Product Summary

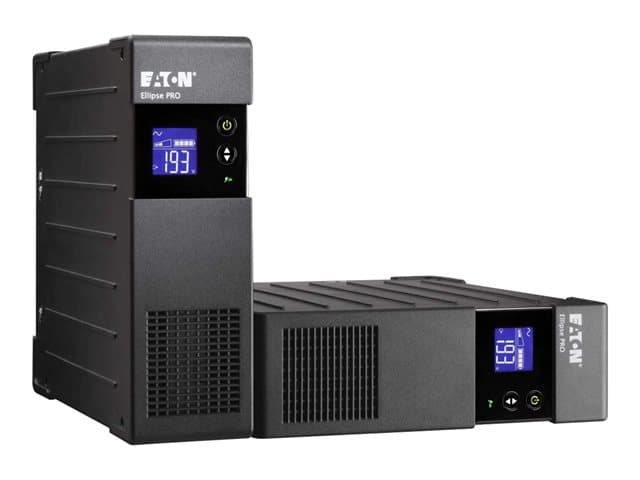

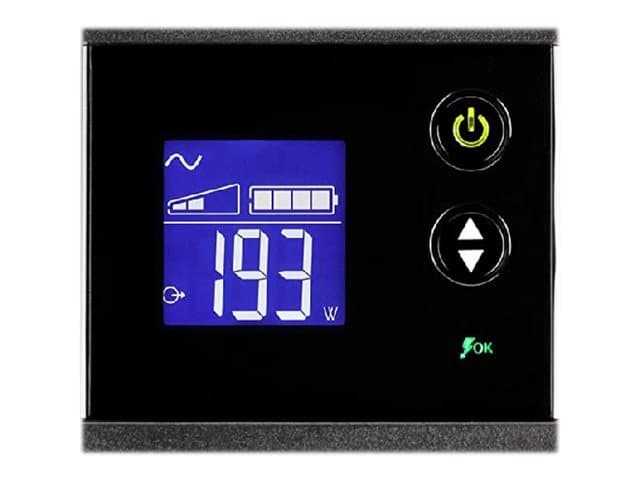

The Eaton Ellipse PRO 1600, 1600 VA, is a line interactive UPS specifically developed to protect workstations with demanding applications. As well as providing a power supply backed up by a battery to keep equipment operating during a power failure, the Ellipse PRO also provides effective protection against damaging surges. The Ellipse PRO features a LCD display for real time status and measurements. This model includes 2 Eco Control power outlets, that enable energy savings up to 20 percent. It complies fully with the requirements of the IEC 616431-1 standard. This UPS can be either placed as a tower, in a rack or be wall mounted. The Ellipse PRO also includes the Eaton Intelligent Power Manager software. It is an ideal protection for all business computers.

Extended Specification

General
Rack Size
19"
Height (Rack Units)
2U
Device Type
UPS - external
Connections & Expansion
Interfaces
1 x management (USB) - 4 pin USB Type B
Manufacturer Warranty
Service & Support
Limited warranty - 3 years Limited warranty - batteries - 3 years
Network
Remote Management Interface
USB
Miscellaneous
Rack Mounting Kit
Optional
Cables Included
USB cable - external
Compliant Standards
CB, IEC 62040-1-1, IEC 62040-2, IEC 61643-1, EN 62040-1-1, EN 62040-2
Features
Wall mountable, LCD display, Automatic Voltage Regulation (AVR), deep discharge protection, cold-start function, EcoControl Master/Control outlets
Software / System Requirements
Software Included
Eaton UPS Companion
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
Humidity Range Operating
0 - 85%
Battery
Quantity
2
Technology
Lead Acid
Capacity
9 Ah
Run Time (Up To)
9 min at half load, 5 min at 70% load
Power Device
Frequency Required
50/60 Hz
Frequency Provided
50/60 Hz
Input Voltage
AC 230 V
Surge Suppression
Yes
UPS Technology
Line interactive
Circuit Protection
Circuit breaker
Input Voltage Range
AC 165 - 285 V
Input Voltage Range (Adjustable)
AC 150 - 285 V
Dataline Surge Protection
Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line
Power Capacity
1000 Watt / 1600 VA
Input Connectors
1 x power IEC 60320 C14
Power Output Connectors Details

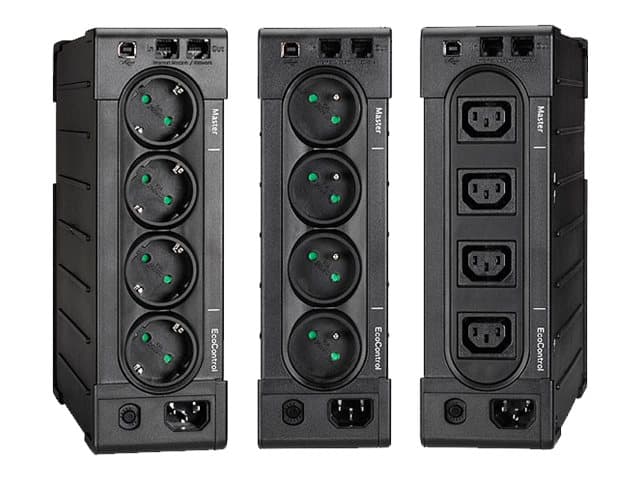

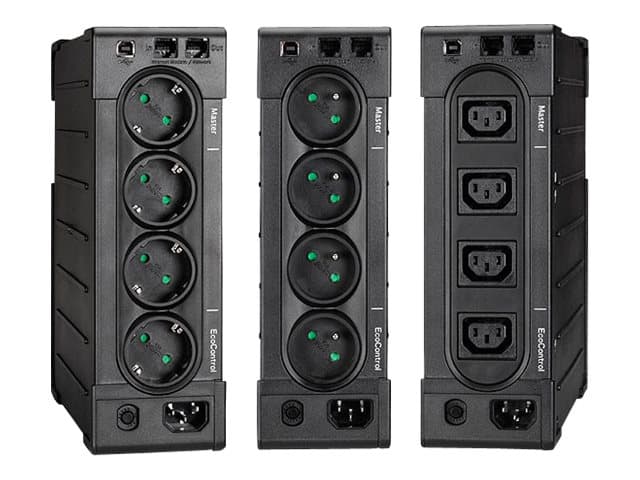

4 x power IEC 60320 C13 (UPS and surge), 4 x power IEC 60320 C13 (surge)
Output Voltage
AC 220/230/240 V + 15% / - 20% - 50/60 Hz
Weight & Dimensions
Weight
11.3 kg
Height
27.5 cm
Depth
39 cm
Width
8.2 cm
Eaton Ellipse PRO 1600

Disclaimers

  • Actual configuration might differ from illustration
