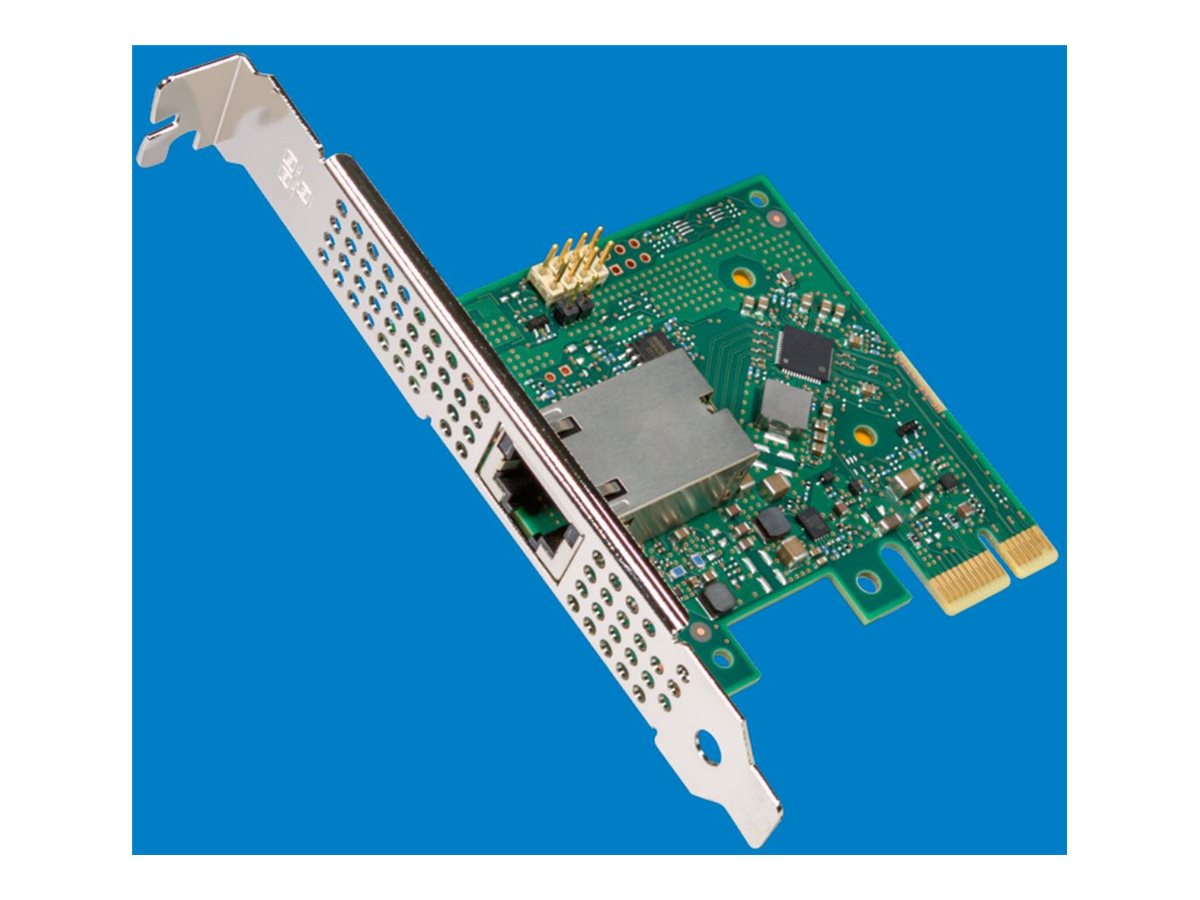

NIC/PCiE up to 2.5Gb RJ45 x 1 Retail
Weight: 0.16 KG
- 2.5 Gbps data transfer rate for high-speed networking
- Supports a wide range of protocols and standards for broad compatibility
- Low power consumption enhances energy efficiency
- Features like auto-negotiation and flow control for improved network reliability
- Compliant with major regulatory standards for global use
Similar Products
Overview
The Intel Ethernet Network Adapter I226-T1 is ideally suited for personal computers and workstations used for enterprise, gaming, and home networks. These systems require more bandwidth than ever before. This ultra-compact, easy-to-integrate PCIe 3.1 x1 adapter, is a cost-effective networking solution for speeds up to 2.5GbE. The I226-T1 is also designed with a ventilated bracket, for increased efficiency and reduced power consumption. Packed with performance optimization capabilities, the I226-T1 includes advanced interrupt-handling features to reduce CPU overhead. Combining interrupt-handling features with intelligent filtering, ordering, and directing packets to specific queues and cores, enables load-balancing network traffic flows to improve throughput in multi-core platforms. Based on the Intel Ethernet Controller I226-LM, this versatile networking solution supports 2.5 Gbps, 1 Gbps, 100 Mbps and 10 Mbps network speeds without the need to overhaul existing cabling infrastructure. Simplifying technology transitions with auto-negotiation between port speeds provides maximum flexibility.
Main Specifications
- Product Description
- Intel Ethernet Network Adapter I226-T1 - network adapter - PCI Express 3.1 x1 - 2.5GBase-T x 1
- Device Type
- Network adapter
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express 3.1 x1
- PCI Specification Revision
- PCIe 3.1
- Ports
- 2.5GBase-T x 1
- Dimensions (WxDxH)
- 65.3 mm x 68.7 mm
- Cabling Type
- Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T
- Data Link Protocol
- 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE
- Data Transfer Rate
- 2.5 Gbps
- Network / Transport Protocol
- SCTP, TCP/IP, UDP/IP, IPv4, IPv6
- Processor
- 1 x Intel I226
- Compliant Standards
- IEEE 802.3, IEEE 802.3x, IEEE 802.3z
- Manufacturer Warranty
- Limited lifetime warranty
- Capacity
- Tx queues: ¦ Rx queues:
Associated Documents
Product Features
Enhanced connectivity
The Intel Ethernet Network Adapter I226-T1 offers robust 2. 5GBase-T connectivity, ensuring high-speed data transfer rates of up to 2. 5 Gbps. This feature is designed to meet the demands of computing environments, providing a seamless and efficient networking experience.
Comprehensive compatibility
With support for a wide range of standards including IEEE 802. 3, 802. 3x, and 802. 3z, as well as a variety of network and transport protocols like IPv4, IPv6, TCP/IP, and UDP/IP, this network adapter ensures broad compatibility with existing infrastructure and future network deployments.
Efficient power management
The Intel Ethernet Network Adapter I226-T1 is engineered with features like Active State Power Management (ASPM), low power consumption, and an operational power draw of only 1. 4 W, making it an energy-efficient choice for any setup.
Advanced networking features
This adapter comes equipped with functionalities such as auto-negotiation, flow control, load balancing, and Receive Side Scaling (RSS), enhancing its operational efficiency and reliability in handling network traffic.
Durable and compliant
Adhering to a comprehensive list of standards and certifications including FCC Class B, RoHS, and UL among others, the Intel Ethernet Network Adapter I226-T1 is built for durability and compliance with global regulatory standards.
Specifications
General
- Device Type
- Network adapter
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express 3.1 x1
- PCI Specification Revision
- PCIe 3.1
Connections & Expansion
- Interfaces
- 1 x 2.5Gb Ethernet - RJ-45
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Networking
- Ports
- 2.5GBase-T x 1
- Data Transfer Rate
- 2.5 Gbps
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet
- Network / Transport Protocol
- SCTP, TCP/IP, UDP/IP, IPv4, IPv6
- Cabling Type
- Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T
- Connectivity Technology
- Wired
- Status Indicators
- Link/activity
- Features
- Load balancing, auto-negotiation, flow control, ASPM support, APM support, ACPI 2.0 support, low power consumption, PXE 2.1 support, TSO, RSS, 9.5 KB Jumbo Frame
- Compliant Standards
- IEEE 802.3, IEEE 802.3x, IEEE 802.3z
- Capacity
- Tx queues: Rx queues:
Miscellaneous
- Included Accessories
- Full-height bracket, low-profile bracket
- Compliant Standards
- CAN/CSA-C22.2 No. 62368-1-14, Directive 2011/65/EU, Directive 2015/863/EU, EMC, EMI, EN 62368-1:2014, FCC Class B certified, RoHS, UL 62368-1, UL, VCCI, BSMI, C-Tick, KCC
- Package Type
- Retail
Power
- Power Consumption Operational
- 1.4 watt
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 55 °C
Processor
- Processor
- 1 x Intel I226
Weight & dimensions
- Depth
- 65.3 mm
- Height
- 68.7 mm
