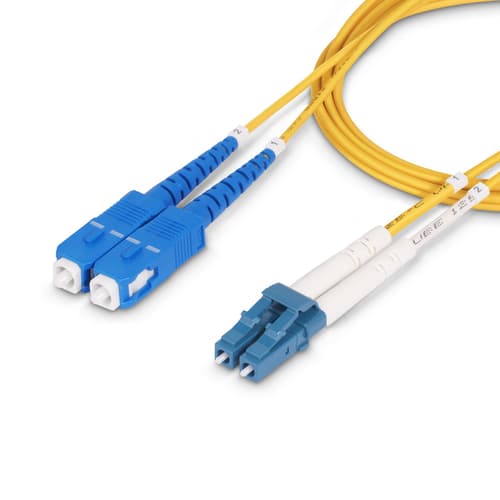

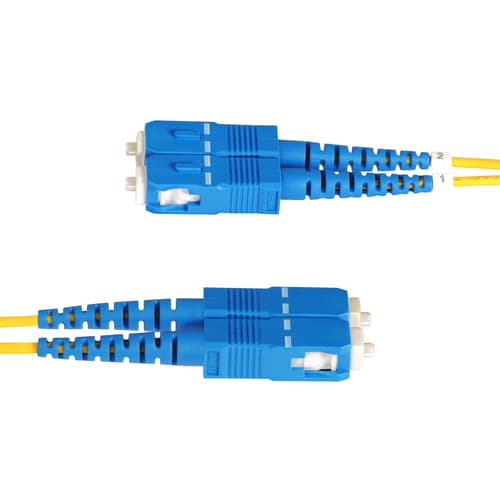

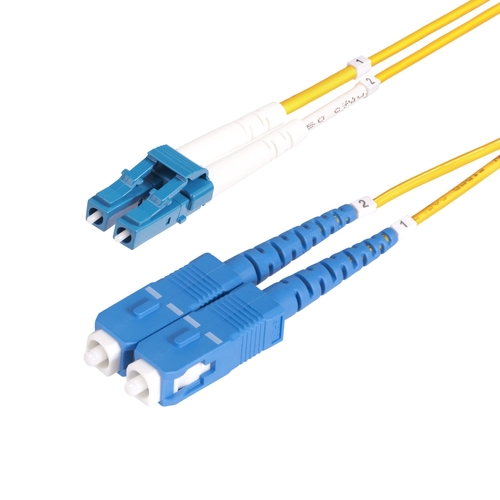

StarTech.com 15m (50ft) LC to SC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125�m, Laser Optimized, 10G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Patch Cord (SMLCSC-OS2-15M) - Patch cable - LC/UPC single-mode (M) to SC/UPC single-mode (M) - 15 m - 2 mm - fibre optic - duplex - 9 / 125 micron - OS1/OS2 - halogen-free, passive - yellow
- OS2 FIBER CABLE: Single Mode OS2 Fiber Cable is immune to EMI and optimized for 100Gbps networks; Coarse Wavelength Division Multiplexing (CWDM) enables extended 1260-1625nm wavelength support for greater channel isolation over long distances
- QUALITY CONSTRUCTION: LC/SC-UPC ends for improved return loss over PC polish; Numbered connectors to indicate polarity; Bend Insensitive fiber core housed in Aramid-reinforced jacket for a loaded bend radius of 10mm
- SAFETY AND RELIABILITY: Individually tested for guaranteed performance; Test report included; LSZH jacket emits low toxic fumes if combusted; Safe for enclosed/poorly ventilated spaces; Attenuation value under 0.35dB/km outperforms industry standards
- COMPATIBILITY: Single Mode Fiber Patch Cord supports 100G networks; Backward compatible with OS1; High micro-bend resistance facilitates tight bends in complex installations; Ideal for connecting between servers/switches and data center equipment
- SPECS: 15 meter (49.2 foot); OS2 Single Mode; LC/SC (UPC) Duplex; 100Gbps; 9/125um; 1260-1625nm Laser Optimized; Insertion Loss: ≤0.3dB; Return Loss: ≥55dB; Cable OD: 2mm; Bend Radius: 10mm (0.39in) loaded/unloaded
Similar Products
Overview
StarTech.com 15m (49.2ft) LC to SC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125µm, 100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord
Specifications
Features
- Cable length
- 15 m m
- Connector 1
- LC
- Connector 2
- SC
- Connector 1 gender
- Male
- Connector 2 gender
- Male
- Product colour
- Yellow
- Jacket material
- Low smoke zero halogen (LSZH)
- Core diameter
- 9 µm µm
- Fibre optic type
- OS2
- Cable shape
- Round
- Connector polish type
- UPC
- Full duplex
- Yes
- Cladding diameter
- 125 µm µm
- Fiber mode structure
- Single-mode
- Wavelengths supported
- 1260,1280,1300,1310,1383,1490,1550,1590,1600,1625 nm nm
- Data transfer rate
- 100 Gbit/s Gbit/s
- Insertion loss
- 0.3 dB dB
- Return loss
- 55 dB dB
Operational conditions
- Operating temperature (T-T)
- -20 - 60 °C °C
- Storage temperature (T-T)
- -20 - 60 °C °C
Weight & dimensions
- Cable diameter
- 2 mm mm
- Weight
- 112 g g
- Bending radius
- 1 cm cm
Packaging data
- Package width
- 200 mm mm
- Package depth
- 173 mm mm
- Package height
- 23 mm mm
- Package weight
- 136 g g
Packaging content
- Quantity per pack
- 1 pc(s) pc(s)
