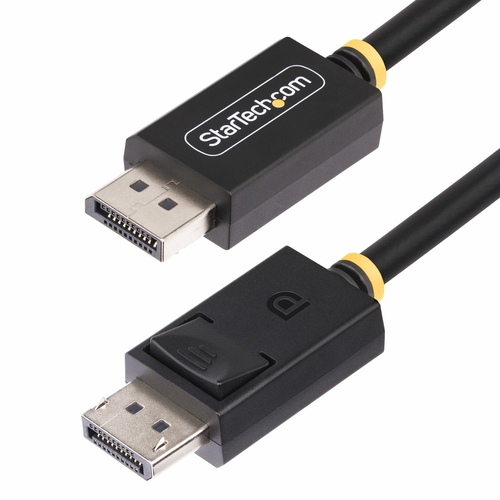

StarTech.com 1m DisplayPort 2.1 Cable, VESA-Certified, DP80 DP 2.1 Cable - DisplayPort cable - DisplayPort (M) latched to DisplayPort (M) latched - DisplayPort 2.1 - 1 m - UHBR20, HDR support, 16K60hz support, 8K85Hz support, 4K240Hz support, 1440p support 240Hz, up to 80 Gbps data transfer rate, passive - black
- HIGH PERFORMANCE: DP 2.1 Cable is designed for UHBR20-enabled DisplayPort devices; DP80 (80Gbps) supports up to 16K 60Hz video w/DSC and 32-channel audio; Latching DP connectors; Flexible TPE jacket routes easily through tight spaces

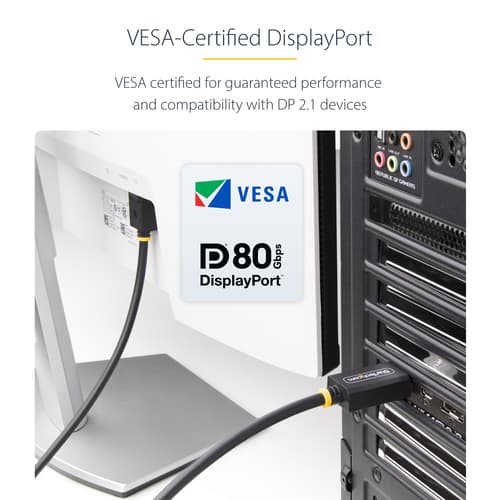

- FULL DP COMPATIBILITY: DP 2.1 Cable is VESA certified for guaranteed performance and compatibility with DP 2.1 devices, ensuring reliable signal consistency and smooth video playback on any DisplayPort display; Backward compatible with DP 2.0/1.4/1.2

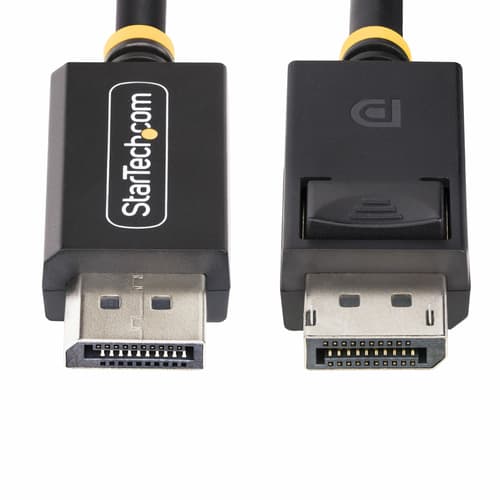

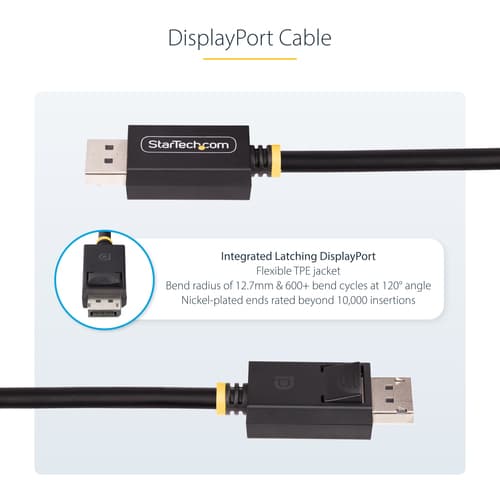

- QUALITY CONSTRUCTION: Nickel-plated ends rated beyond 10,000 insertions; Latching DP connectors prevent accidental disconnections; Shielded coaxial wire for enhanced EMI protection; Durable TPE Jacket and strain reliefs are halogen-free and RoHS compliant
- APPLICATIONS: Ideal for high resolution 16K/8K displays; Up to 240Hz refresh rate at 4K resolution; Suitable for high performance GPUs and AV workstations; Supports MST multi-monitor daisy chains; Connect a DP monitor to a UHD docking station
- SPECS: Black; 1-meter; VESA-Certified DisplayPort 2.1; Supports UHBR20/HDR/MST/DSC 1.2/HDCP 2.2; DP80 (80Gbps); 16K 60Hz w/DSC, 8K 85Hz, 4K 240Hz; 32-ch Audio; Compatible w/DP 2.0/1.4/1.2; Latching DP Connectors; 30AWG Coaxial Wire; 5.8mm (0.23in) O.D.
Similar Products
Overview
StarTech.com 1m DisplayPort 2.1 Cable, VESA Certified DP80 DisplayPort Cable w/UHBR20/HDR/DSC 1.2a/HDCP 2.2, 16K/8K 60Hz, 4K 240Hz, 80Gbps, DP 2.1 Cable, UHD Monitor Cord, M/M
Specifications
Packaging data
- Package width
- 125 mm mm
- Package depth
- 220 mm mm
- Package height
- 20 mm mm
- Package weight
- 86 g g
Packaging content
- Quantity per pack
- 1 pc(s) pc(s)
Logistics data
- Master (outer) case width
- 490 mm mm
- Master (outer) case length
- 330 mm mm
- Master (outer) case height
- 215 mm mm
- Products per master (outer) case
- 100 pc(s) pc(s)
Sustainability
- Sustainability compliance
- Yes
- Doesn't contain
- Halogen
Features
- Cable length
- 1 m m
- Connector 1
- DisplayPort
- Connector 2
- DisplayPort
- Connector 1 gender
- Male
- Connector 2 gender
- Male
- Maximum resolution
- 15360 x 8640 pixels pixels
- Product colour
- Black
- Connector 1 form factor
- Straight
- Connector 2 form factor
- Straight
- Connector contacts plating
- Nickel
- DisplayPort version
- 2.1
- Supported graphics resolutions
- 3840 x 2160, 7680 x 4320
- Maximum refresh rate
- 240 Hz Hz
- HDCP
- Yes
- HDCP version
- 2.2
- Display Stream Compression (DSC)
- Yes
- Display Stream Compression (DSC) version
- 1.2a
- Latching connectors
- Yes
- Cable material
- Copper
- Cable shielding
- Aluminum mylar foil
- Jacket material
- Thermoplastic elastomer (TPE)
- AWG wire size
- 30
- High Dynamic Range (HDR) supported
- Yes
- Data transfer rate
- 80 Gbit/s Gbit/s
- Channels quantity
- 32 channels channels
- Multi-Stream Transport (MST)
- Yes
- Fire-resistance rating
- VW-1
- Cable type
- Round cable
Operational conditions
- Operating temperature (T-T)
- 0 - 45 °C °C
- Storage temperature (T-T)
- -20 - 70 °C °C
- Operating relative humidity (H-H)
- 10 - 85% %
Certificates
- Compliance certificates
- RoHS
Weight & dimensions
- Cable diameter
- 5.8 mm mm
- Weight
- 80 g g
