StarTech.com 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering - PCIe SATA 3 Controller Adapter (PEXSAT34RH) - Storage controller (RAID) - 4 Channel - SATA 6Gb/s - low profile - RAID 0, 1, 10, JBOD - PCIe 2.0 x2 - for P/N: ST521PMINT
Manuf P/N: PEXSAT34RH
APAXON#: 4428568
EAN: 0065030849951
StarTech.com 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering - PCIe SATA 3 Controller Adapter (PEXSAT34RH) - Storage controller (RAID) - 4 Channel - SATA 6Gb/s - low profile - RAID 0, 1, 10, JBOD - PCIe 2.0 x2 - for P/N: ST521PMINT
- Supported storage drive interfaces: Serial ATA, Serial ATA III
- Host interface: PCI Express
- RAID levels: 0, 1, 10, JBOD
- 6 Gbit/s
- SSD support
Stock0
Price £69.12
Quantity
|
Similar Products

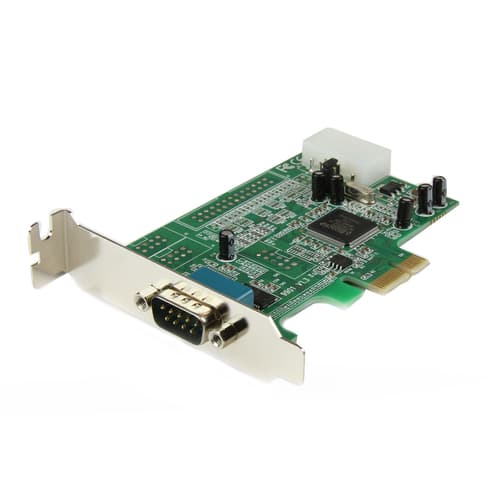

StarTech.com 1 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART (PEX1S553LP) - Serial adapter - PCIe low profile - RS-232
Cheaper
—
—
—
—
Stock2
£0.00
Product Summary
StarTech.com 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering
Extended Specification
Ports & interfaces
Supported storage drive interfaces
Serial ATA, Serial ATA III
Host interface
PCI Express
PCI Express slots version
2.0
Internal SATA ports quantity
4
Performance
RAID levels
0, 1, 10, JBOD
Data transfer rate
6 Gbit/s
SSD support
Yes
Chipset
Marvell - 88SE9230
Logical block addressing (LBA) support
48 bit
Technical details
Compliance certificates
CE, RoHS
Sustainability compliance
Yes
System requirements
Windows operating systems supported
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac compatibility
Yes
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported
Yes
Server operating systems supported
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Operational conditions
Operating temperature (T-T)
5 - 50 °C
Storage temperature (T-T)
-25 - 70 °C
Operating relative humidity (H-H)
20 - 80%
Weight & dimensions
Width
120 mm
Depth
70 mm
Height
20 mm
Weight
49 g
Package width
145 mm
Package depth
175 mm
Package height
32 mm
Package weight
141 g
Logistics data
Master (outer) case width
381 mm
Master (outer) case length
488 mm
Master (outer) case height
321 mm
Products per master (outer) case
60 pc(s)
Harmonized System (HS) code
84733080
Other features
Manual
Yes
Drivers included
Yes
PCI Card form factor
Full-height (low-profile)
