StarTech.com 4K HDMI over Fiber Extender Kit, 4K 60Hz up to 3300ft/1km (Single Mode) or 1000ft/300m (Multimode) LC Fiber Optic, HDR/HDCP, Audio/RS232/IR Extender, HDMI Video Extender - Transmitter and Receiver Kit (ST121HD20FXA2) - Video/audio/infrared/network extender - HDMI - over fibre optic - fibre optic - up to 1 km

Manuf P/N: ST121HD20FXA2
APAXON#: 8355532
EAN: 0065030897303
StarTech.com 4K HDMI over Fiber Extender Kit, 4K 60Hz up to 3300ft/1km (Single Mode) or 1000ft/300m (Multimode) LC Fiber Optic, HDR/HDCP, Audio/RS232/IR Extender, HDMI Video Extender - Transmitter and Receiver Kit (ST121HD20FXA2) - Video/audio/infrared/network extender - HDMI - over fibre optic - fibre optic - up to 1 km
  • HDMI OVER FIBER EXTENDER KIT: Extend an Ultra HD (UHD) 4K 60Hz HDMI signal with 7.1ch audio up to 3300ft (1km) over Single Mode or up to 1000ft (300m) over Multimode fiber cabling; Single Strand LC/UPC connector; HDR10; HDCP 2.2; 4:4:4 Chroma Subsampling
  • RELIABLE VIDEO TRANSMISSION: HDMI extender works over Single Mode or Multimode fiber, enabling the use of existing fiber cabling; Single strand optical fiber provides full bandwidth video while being immune to Electro-Magnetic Interference (EMI)
  • AUDIO CAPABILITIES: HDMI 2.1 Extender offers an audio extraction function that enables playback of HDMI source audio via the 3.5mm audio output on the receiver unit; Simultaneous audio playback across both HDMI and 3.5mm outputs is supported
  • HASSLE-FREE INSTALLATION: Point-to-Point connection with optical fiber between transmitter and receiver means no IP configuration, drivers, or network equipment required; Durable metal housing with built-in mounting brackets for a tidy installation
  • ROBUST FEATURES: HDMI to Fiber Converter features a local HDMI output and IR/serial extension for convenient and versatile setup options; EDID Copy; LED indicators for status monitoring; 8kV air and 6kV contact Electrostatic Discharge (ESD) protection
Stock5
Price £441.61
Quantity
|

Product Summary

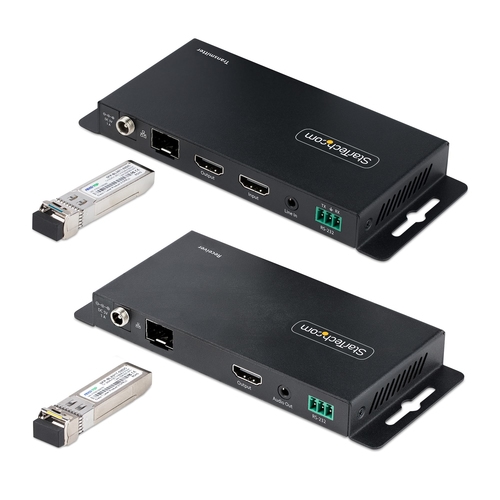

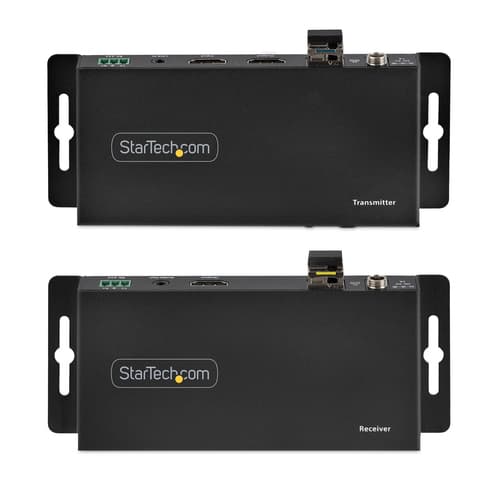

This HDMI over Fiber Extender Kit extends an Ultra HD (UHD) 4K 60 Hz HDMI signal, with 7.1ch audio, up to 3300ft over Single Strand LC fiber cable. This converter kit includes both the transmitter and receiver for a complete end-to-end solution.

Main Specifications

Product Description
StarTech.com 4K HDMI over Fiber Extender Kit, 4K 60Hz up to 3300ft/1km (Single Mode) or 1000ft/300m (Multimode) LC Fiber Optic, HDR/HDCP, Audio/RS232/IR Extender, HDMI Video Extender - Transmitter and Receiver Kit (ST121HD20FXA2) - video/audio/infrared/network extender - HDMI
Device Type
Video/audio/infrared/network extender
Cabling Type
Fibre optic
Data Link Protocol
HDMI
Transmission Medium
Fibre optic
Max Transfer Distance
1 km
Dimensions (WxDxH)
6.8 cm x 13.4 cm x 1.8 cm
Weight
600 g
Manufacturer Warranty
2-year warranty
Works with Single Mode or Multimode Fiber

This HDMI extender works over Single Mode or Multimode fiber cabling, allowing the utilization of existing fiber infrastructure. The single strand optical fiber provides full-bandwidth video while being immune to Electro-Magnetic Interference (EMI), making it ideal for use in challenging environments.

Audio capabilities

Audio extraction functionality enables playback of the HDMI source audio via the 3. 5mm audio output on the receiver unit. Simultaneous audio playback across both HDMI and 3. 5mm outputs is supported, providing flexibility for a variety of audio setups.

Hassle-free installation

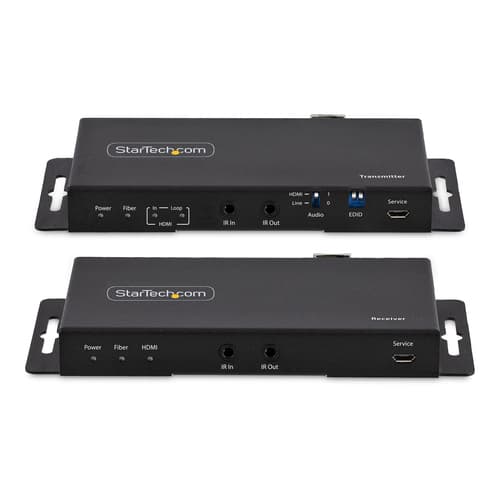

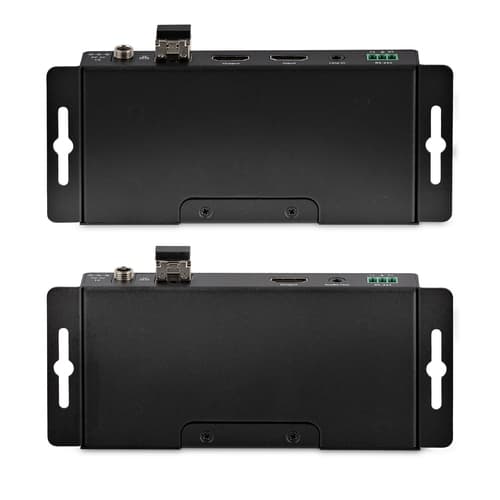

The point-to-point connection, using LC single strand fiber between the A/V transmitter and receiver, eliminates the need for IP configuration, drivers, or network equipment. The HDMI extension kit features a durable steel housing with built-in mounting brackets, allowing for a tidy and secure installation. The HDMI over Fiber kit features a local HDMI output and IR/serial extension for a convenient and versatile setup. Ideal for setups that include projectors with RS232 controls, or A/V equipment with IR remote controls. The enhanced EDID Copy functions ensure the correct display information is used during the setup process.

Extended Specification

Features
Maximum resolution
4096 x 2160 pixels pixels
Maximum transfer distance
1000 m m
Maximum refresh rate
60 Hz Hz
Audio output channels
7.1 channels channels
Electrostatic Discharge (ESD) protection
8 kV kV
Infrared (IR) frequency range
20 - 60 kHz kHz
Bandwidth
18 Gbit/s Gbit/s
Baud rate
115.2 Kbit/s Kbit/s
Type
AV transmitter & receiver
Maximum resolution
4096 x 2160 pixels
Maximum transfer distance
1000 m
Chipset
SiFotonics SD1503/SD1513
High Dynamic Range (HDR) supported
Yes
High Dynamic Range (HDR) technology
High Dynamic Range 10 (HDR10)
Maximum refresh rate
60 Hz
Fiber mode structure
Multi-mode, Single-mode
Extended display identification data (EDID)
Yes
Audio output channels
7.1 channels
Electrostatic Discharge (ESD) protection
Yes
Electrostatic Discharge (ESD) protection
8 kV
Infrared (IR) frequency range
20 - 60 kHz
LED indicators
Activity, Power
Bandwidth
18 Gbit/s
HDCP
Yes
Baud rate
115.2 Kbit/s
HDCP version
2.2
Product colour
Black
Power
AC input voltage
100 - 240 V V
Operating voltage
5 V V
Input current
0.35 A A
Output current
1 A A
AC input voltage
100 - 240 V
Operating voltage
5 V
Input current
0.35 A
Output current
1 A
Power plug type
Type M
Operational conditions
Operating temperature (T-T)
0 - 40 °C °C
Storage temperature (T-T)
-20 - 60 °C °C
Operating relative humidity (H-H)
20 - 90% %
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 90%

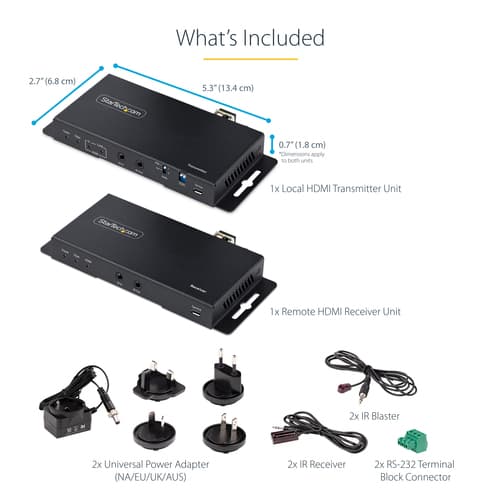

Weight & dimensions
Width
68 mm mm
Depth
134 mm mm
Height
18 mm mm
Weight
280 g g
Width
68 mm
Depth
134 mm
Height
18 mm
Weight
280 g
Packaging data
Package width
200 mm mm
Package depth
300 mm mm
Package height
60 mm mm
Package weight
1 kg kg
Package width
200 mm
Package depth
300 mm
Package height
60 mm
Package weight
1 kg
Logistics data
Master (outer) case width
325 mm mm
Master (outer) case length
530 mm mm
Master (outer) case height
402 mm mm
Products per master (outer) case
20 pc(s) pc(s)
Master (outer) case width
325 mm
Master (outer) case length
530 mm
Master (outer) case height
402 mm
Products per master (outer) case
20 pc(s)

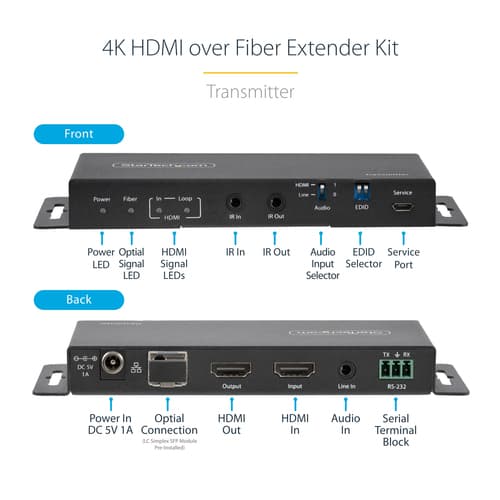

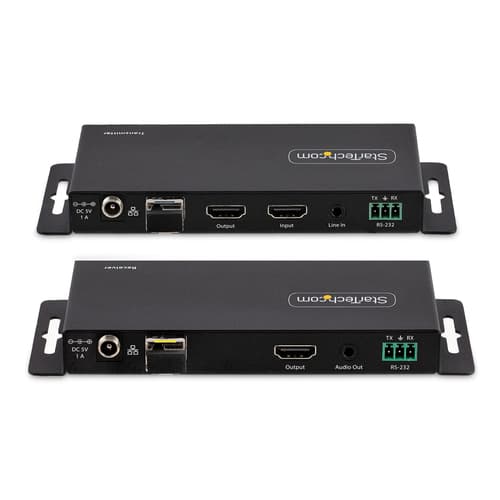

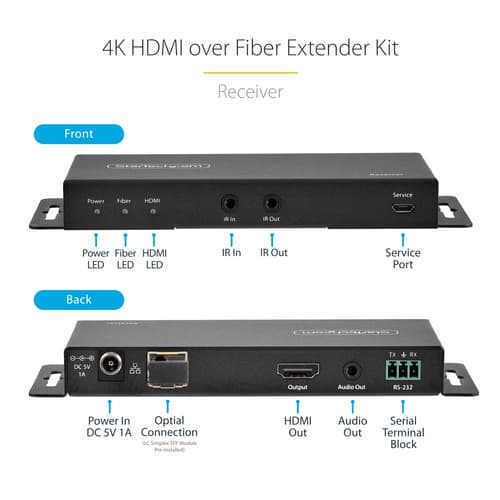

Ports & interfaces
Connectivity technology
Wired
HDMI in
1
Number of HDMI outputs
2
HDMI version
2.1
Fiber optic connector
LC
Fiber ports quantity
2
USB ports quantity
2
USB connector type
Micro-USB B
Serial ports quantity
2
Serial interface type
RS-232
Remote (IR) input
2
Remote (IR) output
2
Line outputs (RCA)
1
Line-in
Yes
DC-in jack
Yes

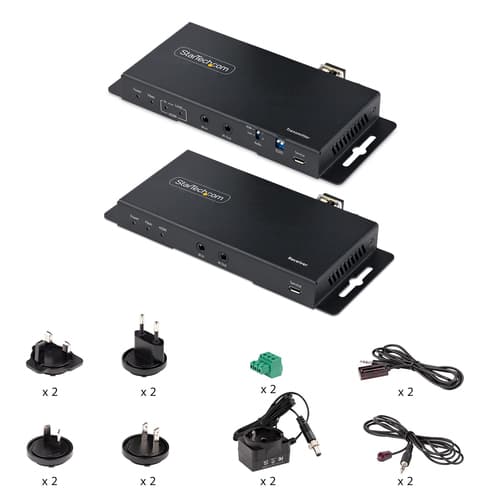

Packaging content
AC adapter included
Yes
Quick start guide
Yes
IR blaster included
Yes
IR receiver included
Yes
Technical details
Compliance certificates
CE, RoHS
Sustainability compliance
Yes
StarTech.com 4K HDMI over Fiber Extender Kit, 4K 60Hz up to 3300ft/1km (Single Mode) or 1000ft/300m (Multimode) LC Fiber Optic, HDR/HDCP, Audio/RS232/IR Extender, HDMI Video Extender - Transmitter and Receiver Kit (ST121HD20FXA2) - Video/audio/infrared/network extender - HDMI - over fibre optic - fibre optic - up to 1 km

Disclaimers

  • Product data is provided by CNET, we do not warrant the accuracy and completeness of the material contained in this data sheet
