StarTech.com 7m (23ft) LC/LC (UPC) OM4 Multimode Fiber Optic Cable, OFNR - Patch cable - LC/UPC duplex multi-mode (M) to LC/UPC duplex multi-mode (M) - 7 m - 1.6 mm - fibre optic - duplex - 50 / 125 micron - OM4 - OFNR - jumper - erika violet
- ERIKA VIOLET OM4: OM4 multimode fiber cable is immune to EMI and supports up to 100Gbps; Erika Violet jacket is TIA-standardized for OM4, avoiding OM3/OM4 confusion with Aqua cables; Compact uniboot design enhances airflow & access in dense installations
- QUALITY CONSTRUCTION: LC/LC connectors with UPC polished ends significantly improves return loss over PC polish; Robust molded strain reliefs minimize wear from bending; Protective Aramid yarn for increased tensile strength
- SAFETY AND RELIABILITY: Each cable is individually tested for guaranteed OM4 performance and includes a test report; OFNR riser-rated cable jacket minimizes flame spread between floors in riser spaces; Attenuation value of 3dB/km meets TIA standards
- WIDE COMPATIBILITY: Supports 1/10/40/100 Gbps full duplex transmission; Backward compatible with OM3; For high-density network applications such as SANs, data servers, fiber switches, and LC-based SFP/SFP+ transceivers
- SPECS: 7-meter (23-foot); Color: Erika Violet (OM4); LC/LC UPC; 50/125µm; 850nm/1300nm LED/VCSEL; Modal Bandwidth: 2000MHz/km at 850nm; OFNR (Riser) Jacket; Cable OD: 1.6mm; Min Bend Radius: 7.5mm (0.29in)

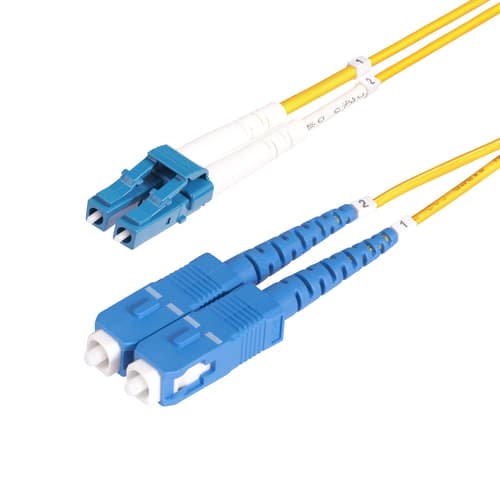

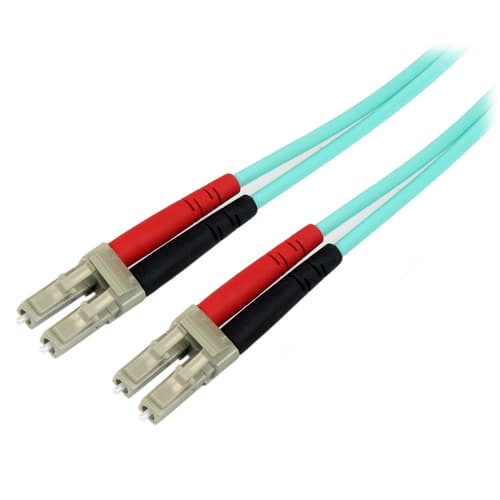

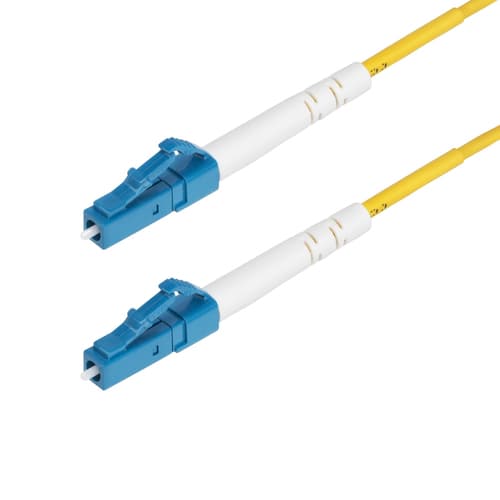

Similar Products
Specifications
Features
- Cable shape
- Round
- Connector polish type
- PC
- Full duplex
- Yes
- Core diameter
- 50 µm µm
- Cladding diameter
- 125 µm µm
- Fiber mode structure
- Multi-mode
- Wavelengths supported
- 850,1300 nm nm
- Data transfer rate
- 100 Gbit/s Gbit/s
- Cable length
- 7 m m
- Cable type
- OFNR
- Connector 1
- LC
- Connector 2
- LC
- Connector 1 gender
- Male
- Connector 2 gender
- Male
- Product colour
- Violet
- Jacket material
- Polyvinyl chloride (PVC)
- Fibre optic type
- OM4
Certificates
- Compliance certificates
- CE, RoHS
Operational conditions
- Operating temperature (T-T)
- -20 - 60 °C °C
- Storage temperature (T-T)
- -20 - 60 °C °C
Weight & dimensions
- Cable diameter
- 1.6 mm mm
- Weight
- 34 g g
- Bending radius
- 7.5 mm mm
Packaging data
- Package width
- 230 mm mm
- Package depth
- 180 mm mm
- Package weight
- 31.7 g g
Packaging content
- Quantity per pack
- 1 pc(s) pc(s)
Logistics data
- Master (outer) case width
- 420 mm mm
- Master (outer) case length
- 420 mm mm
- Master (outer) case height
- 270 mm mm
- Products per master (outer) case
- 300 pc(s) pc(s)
