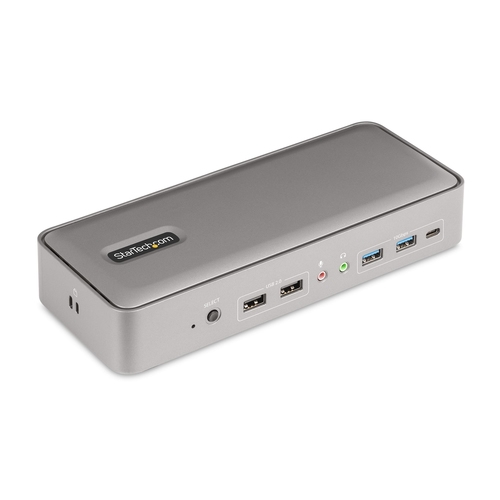

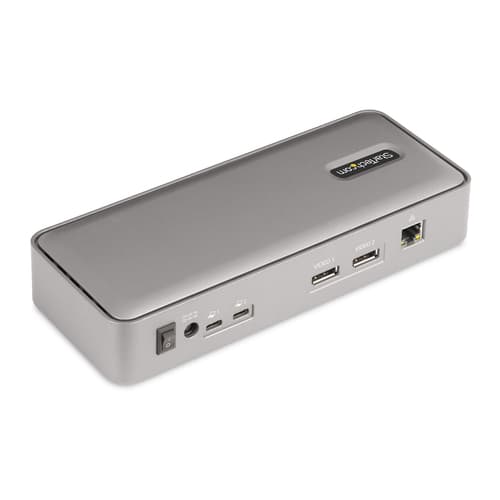

StarTech.com Dual-Laptop USB-C KVM Docking Station, Dual Monitor 4K 60Hz DisplayPort Dock, 5-Port USB Hub, GbE, 90W/45W Power Delivery to Two Laptops, Windows/Mac, 2-Host KVM Dock - Docking station - USB-C 3.2 Gen 2 - 2 x DP - 1GbE - TAA Compliant
Manuf P/N: 129UE-USBC-KVM-DOCK
APAXON#: 9043569
EAN: 0065030898492
StarTech.com Dual-Laptop USB-C KVM Docking Station, Dual Monitor 4K 60Hz DisplayPort Dock, 5-Port USB Hub, GbE, 90W/45W Power Delivery to Two Laptops, Windows/Mac, 2-Host KVM Dock - Docking station - USB-C 3.2 Gen 2 - 2 x DP - 1GbE - TAA Compliant
- OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout

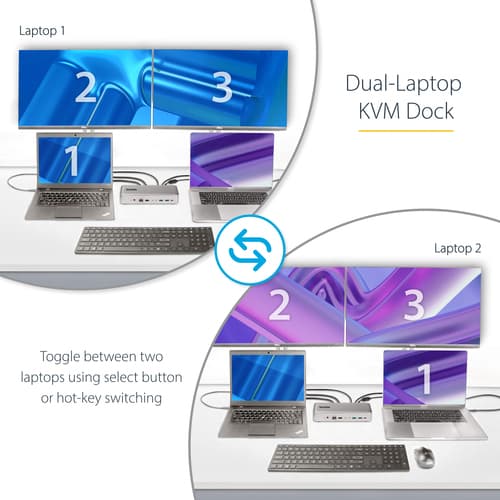

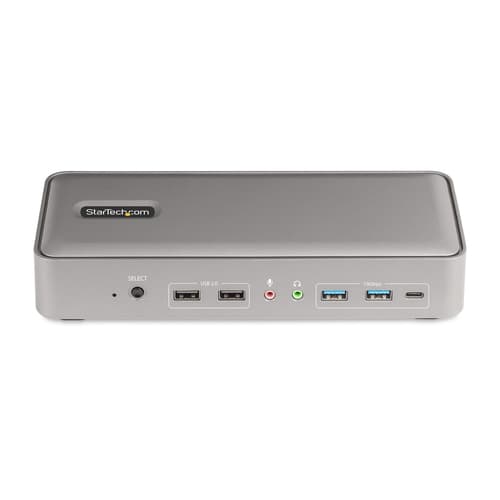

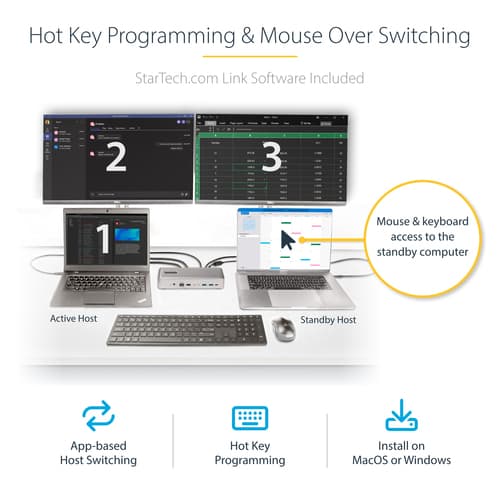

- DUAL-LAPTOP KVM DOCK: Dock and Switch between two laptops at your desk / workstation and share dual 4K 60Hz monitors, keyboard, mouse and other USB peripherals; Switch between two laptops using a toggle button located on the front of the docking station
- SIMULTANEOUSLY CHARGE TWO LAPTOPS: USB-C KVM docking station charges both connected laptops over USB-C (PD 3.0); The included 180W power adapter automatically provides 90W of power to the active host and 45W of power to the host on standby

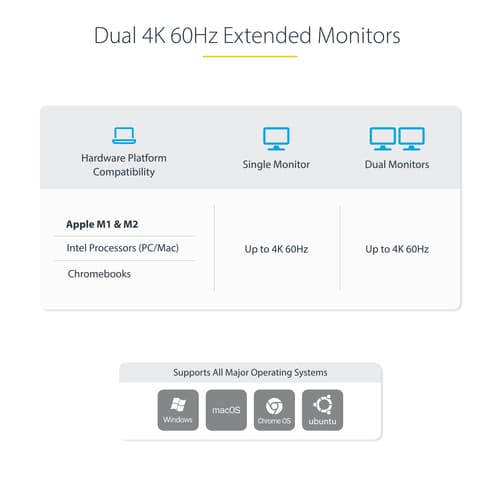

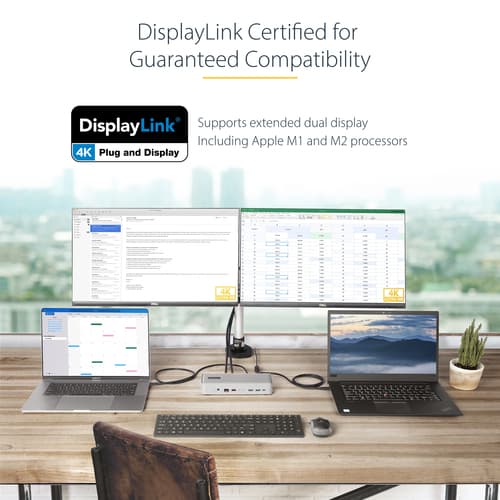

- COMPATIBILITY: Dual-Host KVM Dock supports mixed OS, Windows, macOS, ChromeOS, Linux; Works w/ Intel, AMD and the Apple M-Series, enabling two external displays even on laptops that natively only support one; Driver installation required on Windows/macOS

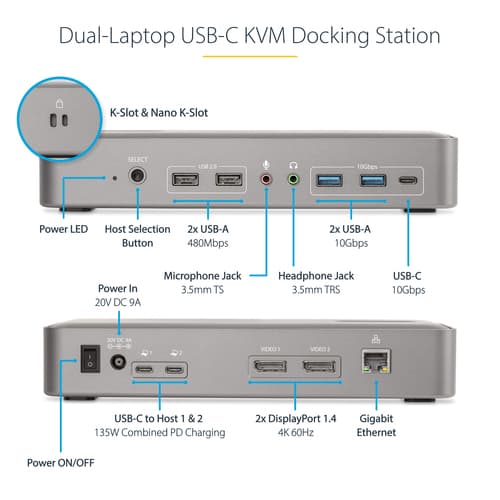

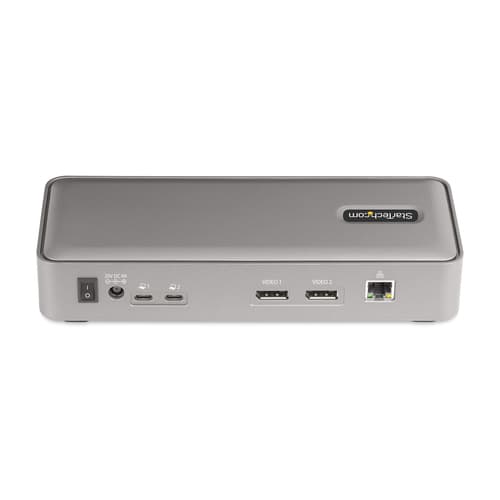

- CONNECTIVITY: The dock features a variety of ports for device connectivity; 2x USB 2.0 Type-A HID, 2x USB-A (10Gbps), USB-C (10Gbps), 2x DisplayPort, 2x USB-C host ports, Gigabit Ethernet, 3.5mm stereo audio, 3.5mm mic, 2x K-Slots (Standard/Nano)
- Silver
- Number of computers controlled: 2
- Keyboard port type: USB Mouse port type: USB Video port type: DisplayPort
- 4K Ultra HD 3840 x 2160 pixels
- Housing material: Plastic
- 180 W External power adapter
Stock11
Price £368.29
Quantity
|
Similar Products
Product Summary
StarTech.com Dual-Laptop USB-C KVM Docking Station, Dual Monitor 4K 60Hz DisplayPort Dock, 5-Port USB Hub, GbE, 90W/45W Power Delivery to Two Laptops, Windows/Mac, 2-Host KVM Dock - TAA
Extended Specification
Ports & interfaces
Number of computers controlled
2
Keyboard port type
USB
Mouse port type
USB
DisplayPorts quantity
2
DisplayPort version
1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
3
Audio connections
Yes
Headphone outputs
1
DC-in jack
Yes
Video port type
DisplayPort
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Number of microphone inputs
1
Network
Ethernet LAN (RJ-45) ports
1
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN
Yes
Cabling technology
10/100/1000Base-T(X)
Performance
HD type
4K Ultra HD
Maximum resolution
3840 x 2160 pixels pixels
Chipset
DisplayLink - DL6950, Genesys Logic - GL3590, Genesys Logic - GL9510, Parade - PS186, Realtek - RTL8211F
Design

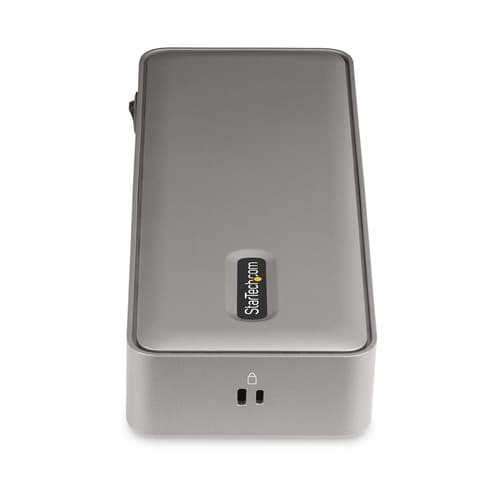

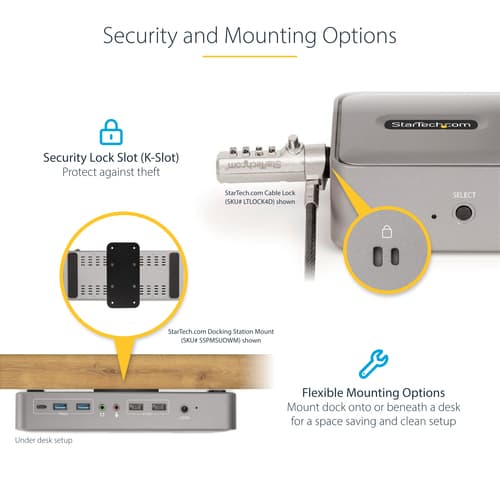

Cable lock slot
Yes
Product colour
Silver
Housing material
Plastic
LED indicators
LAN, Power
Display
Built-in display
No
Power
Input voltage
100 - 240 V V
Input current
2.4 A A
Output voltage
20 V V
Output current
9 A A
Power consumption (typical)
180 W W
External power adapter
Yes
Compatible power plug types
EU, UK
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
90 W W
System requirements
Mac operating systems supported
Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Other operating systems supported
ChromeOS
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Linux operating systems supported
Ubuntu 18.04 LTS, Ubuntu 20.04 LTS, Ubuntu 22.04
Sustainability
Compliance certificates
RoHS
Sustainability compliance
Yes
Operational conditions
Operating temperature (T-T)
-10 - 45 °C °C
Storage temperature (T-T)
-20 - 60 °C °C
Operating relative humidity (H-H)
0 - 90% %
Weight & Dimensions
Width
90 mm mm
Height
40 mm mm
Depth
224 mm mm
Weight
402 g g

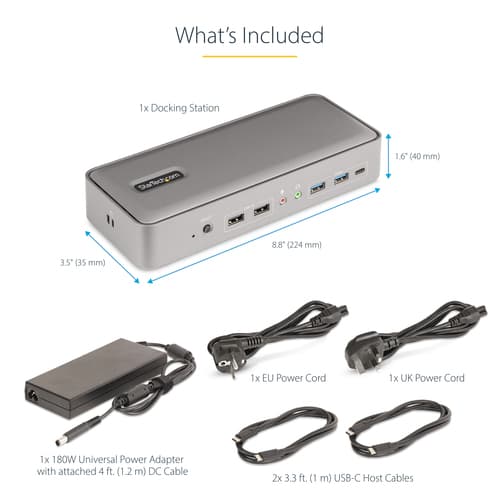

Packaging content
Quick installation guide
Yes
Cables included
AC, USB Type-C
AC adapter included
Yes
Packaging data
Package width
160 mm mm
Package depth
285 mm mm
Package height
90 mm mm
Package weight
1.8 kg kg
Logistics data
Master (outer) case length
380 mm mm
Master (outer) case height
340 mm mm
Products per master (outer) case
6 pc(s) pc(s)
Master (outer) case width
395 mm mm
