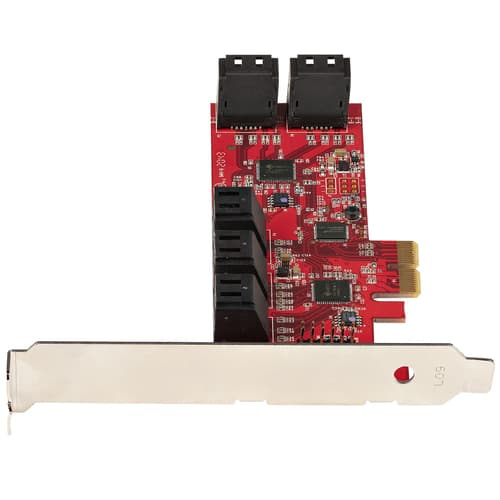

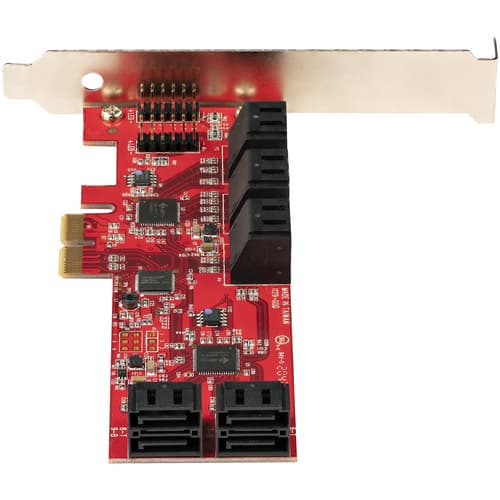

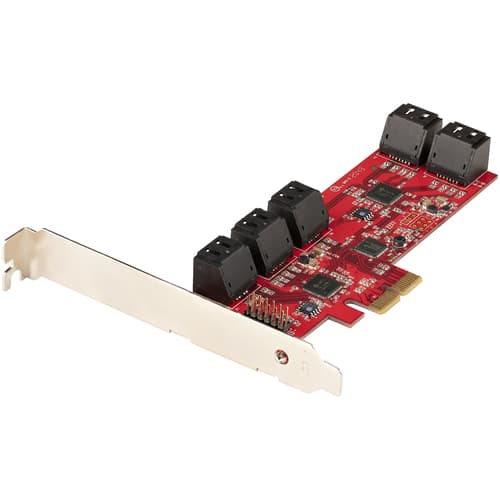

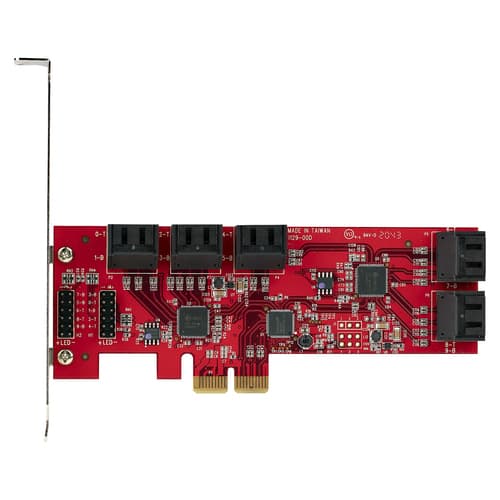

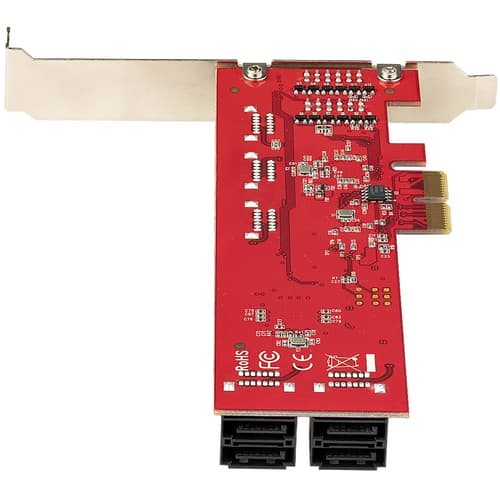

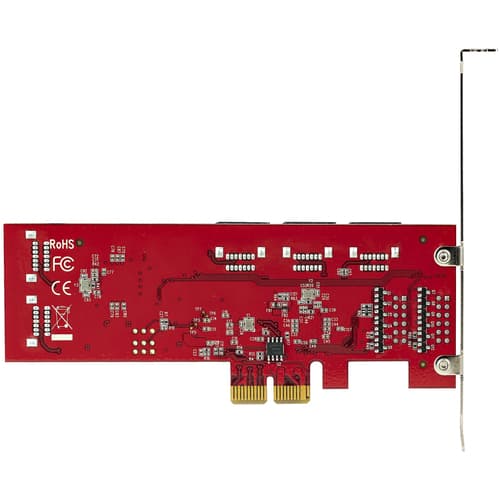

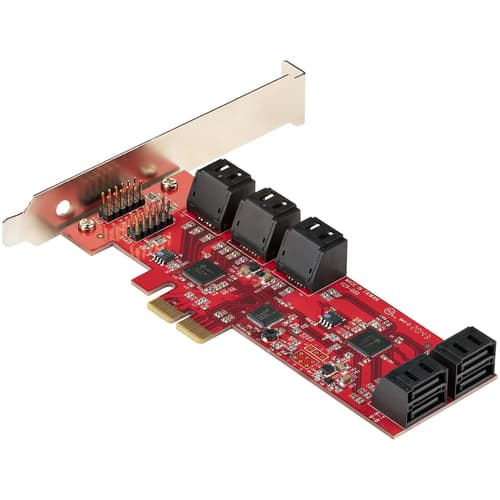

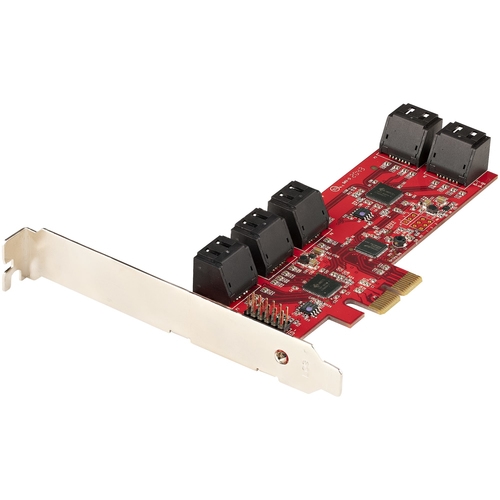

StarTech.com SATA PCIe Card, 10 Port PCIe SATA Expansion card, 6Gbps SATA Card, Low/Full Profile, Stacked SATA Connectors, ASM1062 Non-Raid SATA Controller Card / Adapter - PCI Express to SATA Converter - Storage controller - SATA 6Gb/s - low profile - PCIe 2.0 x2
- ASM1062 to deliver 10-port SATA 6Gbps performance
- Wide compatibility
- Hassle-free installation
Similar Products
Overview
This 10-port SATA III (6Gbps) controller enables you to add 10 SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x4 card slot. The card supports SATA III and PCI-Express 2.0 Specifications.
Main Specifications
- Product Description
- StarTech.com SATA PCIe Card, 10 Port PCIe SATA Expansion card, 6Gbps SATA Card, Low/Full Profile, Stacked SATA Connectors, ASM1062 Non-Raid SATA Controller Card / Adapter - PCI Express to SATA Converter - storage controller - SATA 6Gb/s - PCIe 2.0 x2
- Device Type
- Storage controller - plug-in card - low profile
- Bus Type
- PCIe 2.0 x2
- Interface
- SATA 6Gb/s
- Data Transfer Rate
- 6 Gbit/s
- Supported Devices
- Hard drive, solid state drive
- System Requirements
- Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Apple MacOS X 10.10 - 12, Apple macOS 13.0, Linux 2.6.32 or later
- Dimensions (WxDxH)
- 1.6 cm x 5.4 cm x 13.9 cm
- Weight
- 75 g
- Manufacturer Warranty
- 2-year warranty
Product Features
ASM1062 to deliver 10-port SATA 6Gbps performance
Featuring the ASM1062 controller, this SATA card enables the connection of 10 high-performance SATA 6Gbps drives with a combined total throughput of up to 10Gbps. The SATA drives are connected via four individual SATA ports located on the card (SATA cables sold separately).

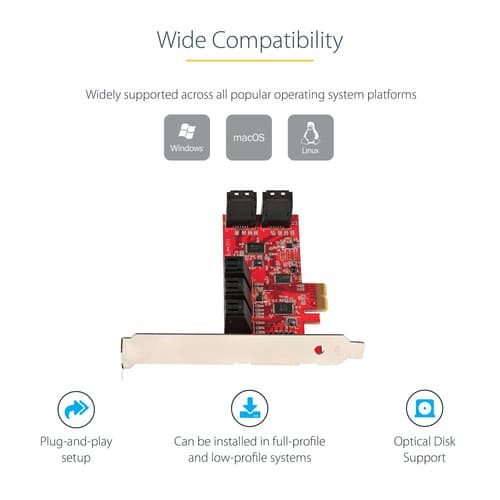

Wide compatibility
The controller card is widely supported across all popular operating system platforms including Windows (7,8,10), macOS (10. 10 and above) and Linux (2. 6. 32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately). To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 2. 0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1) at lower performance.

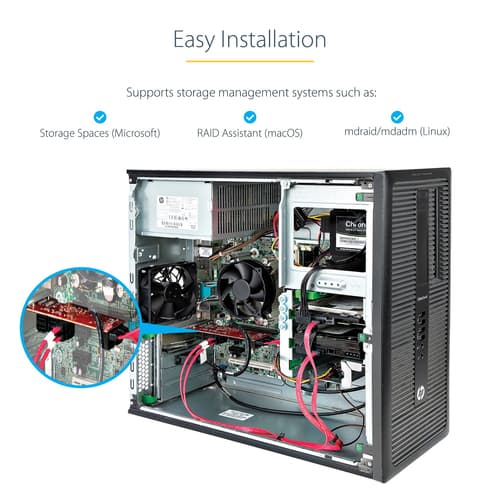

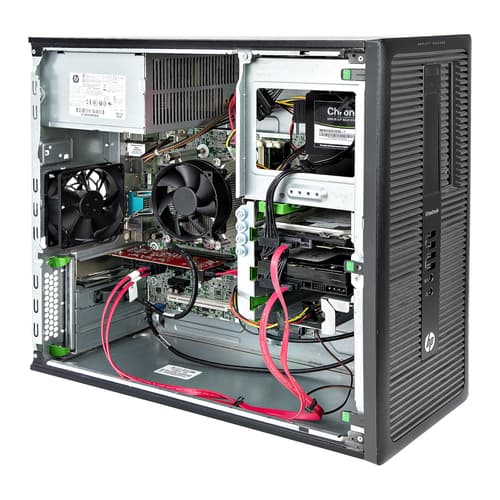

Hassle-free installation

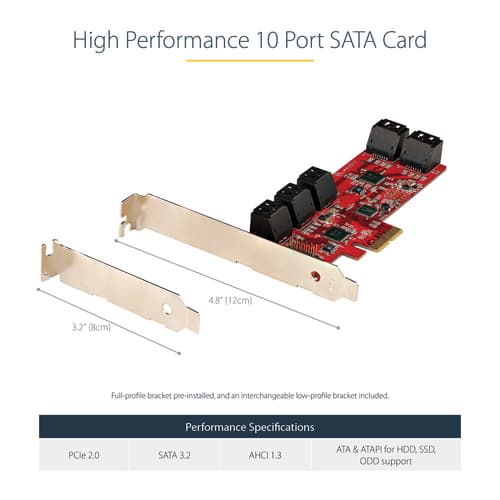

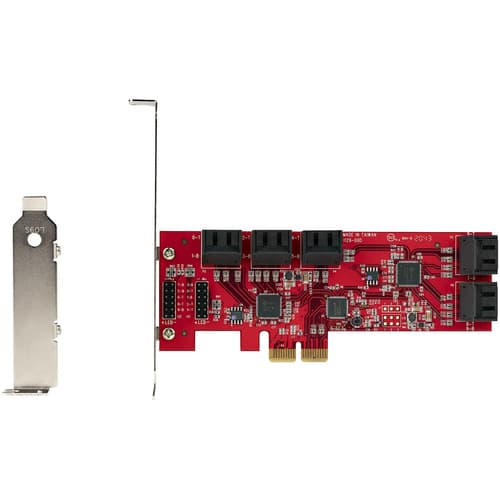

The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft), RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.
Specifications
Operational conditions
- Operating temperature (T-T)
- 0 - 85 °C °C
- Storage temperature (T-T)
- -25 - 85 °C °C
- Operating relative humidity (H-H)
- 20 - 80% %
- Operating temperature (T-T)
- 0 - 85 °C
- Storage temperature (T-T)
- -25 - 85 °C
- Operating relative humidity (H-H)
- 20 - 80%

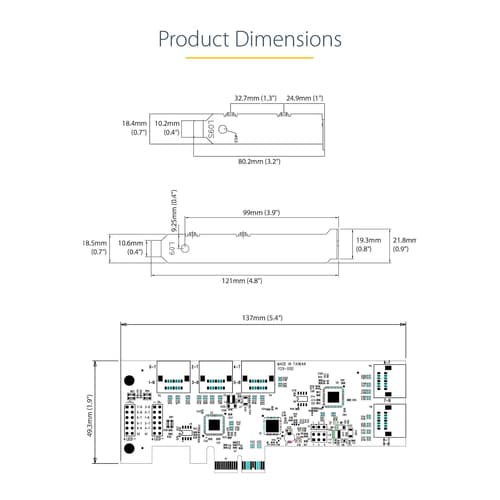

Weight & dimensions
- Width
- 54 mm mm
- Depth
- 139 mm mm
- Height
- 16 mm mm
- Weight
- 75 g g
- Width
- 54 mm
- Depth
- 139 mm
- Height
- 16 mm
- Weight
- 75 g
Packaging data
- Package width
- 142 mm mm
- Package depth
- 175 mm mm
- Package height
- 30 mm mm
- Package weight
- 120 g g
- Mounting brackets included
- Yes
- Quick installation guide
- Yes
- Package width
- 142 mm
- Package depth
- 175 mm
- Package height
- 30 mm
- Package weight
- 120 g
Logistics data
- Products per master (outer) case
- 60 pc(s) pc(s)
- Master (outer) case width
- 500 mm mm
- Master (outer) case length
- 370 mm mm
- Master (outer) case height
- 310 mm mm
- Harmonized System (HS) code
- 84733020
- Products per master (outer) case
- 60 pc(s)
- Master (outer) case width
- 500 mm
- Master (outer) case length
- 370 mm
- Master (outer) case height
- 310 mm
Ports & interfaces
- Host interface
- PCIe
- Output interface
- SATA
- Expansion card standard
- PCIe 2.0
- Internal SATA ports quantity
- 10
- Port multiplier
- Yes
Design
- Internal
- Yes
- Product colour
- Red
Features
- Chipset
- ASMedia - ASM1062
- Data transfer rate (max)
- 6 Gbit/s
- S.M.A.R.T. support
- Yes
- TRIM support
- Yes
- Data transfer rate (max)
- 6 Gbit/s Gbit/s
System requirements
- Windows operating systems supported
- Windows 7 Ultimate x64, Windows 10, Windows 7 x64, Windows 10 Education, Windows 8, Windows 10 Education x64, Windows 7, Windows 8 Enterprise, Windows 10 Enterprise, Windows 7 Enterprise, Windows 8 Enterprise x64, Windows 10 Enterprise x64, Windows 7 Enterprise x64, Windows 8 Pro, Windows 10 Home, Windows 7 Home Basic, Windows 8 Pro x64, Windows 10 Home x64, Windows 7 Home Basic x64, Windows 8 x64, Windows 10 IOT Core, Windows 7 Home Premium, Windows 8.1, Windows 10 IoT Enterprise, Windows 7 Home Premium x64, Windows 8.1 Enterprise, Windows 10 Pro, Windows 7 Professional, Windows 8.1 Enterprise x64, Windows 10 Pro x64, Windows 7 Professional x64, Windows 8.1 Pro, Windows 10 x64, Windows 7 Starter, Windows 8.1 Pro x64, Windows 11, Windows 7 Starter x64, Windows 8.1 x64, Windows 11 x64, Windows 7 Ultimate
- Mac operating systems supported
- Mac OS X 10.13 High Sierra, Mac OS X 11.0 Big Sur, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.10 Yosemite, Mac OS X 10.15.3 Catalina, Mac OS X 10.11 El Capitan, Mac OS X 13.0 Ventura
- Linux operating systems supported
- Yes
- Server operating systems supported
- Windows Server 2019, Windows Server 2012 R2, Windows Server 2016
Technical details
- Compliance certificates
- CE, RoHS
