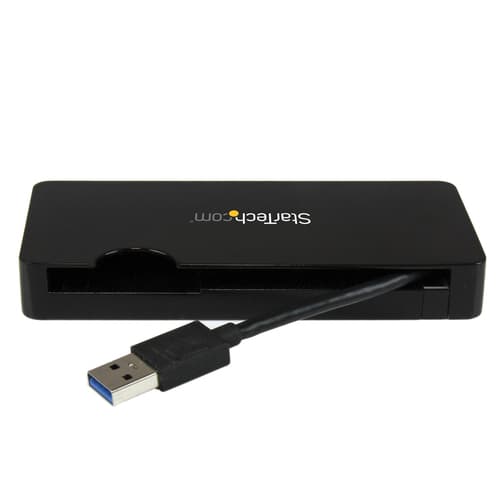

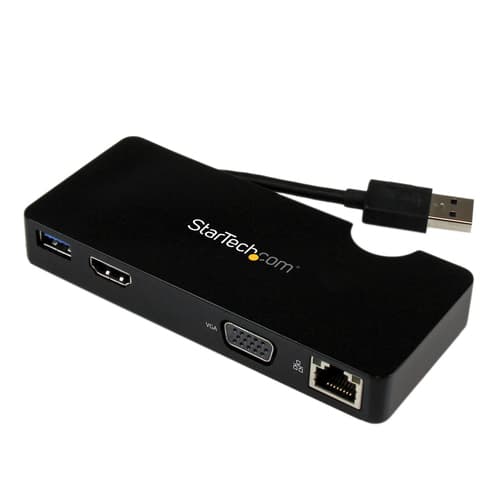

StarTech.com USB 3.0 to HDMI or VGA Adapter Dock - USB 3.0 Mini Docking Station w/ USB, GbE Ports - Portable Universal Laptop Travel Hub (USB3SMDOCKHV) - Docking station - USB - HDMI - 1GbE - for P/N: ARMPIVOT, ARMPIVOTE, ARMPIVSTND, ARMSLIM, ARMUNONB

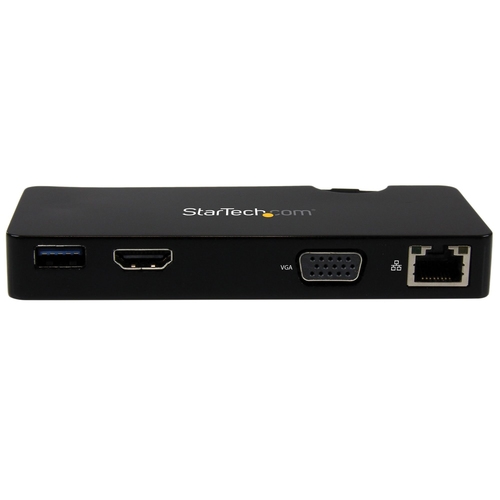

- Multiple connectivity options including HDMI and VGA
- Compliant with essential standards like FCC and RoHS
- Supports high-speed Ethernet connections
- Operates within a wide temperature range
Similar Products
Overview
Create a mobile workstation using your Ultrabook or laptop USB 3.0 port via this portable USB 3.0 mini dock. The travel docking station for laptops lets you transform your laptop or Ultrabook into a mobile workstation. It adds HDMI or VGA video output, a USB 3.0 hub port, and a Gigabit Ethernet RJ45 port, through a single USB 3.0 host connection. The travel-friendly dock helps you overcome the port limitations of modern mobile computers, making it ideal for your laptop, Microsoft Surface Pro 4, SurfacePro 3, Surface 3, Surface Pro 2 or Surface Book. Now, you can avoid the nuisance of carrying multiple adapters. By consolidating four essential connection ports into one convenient device, the travel dock is the perfect laptop accessory. It features a lightweight, compact design that fits nicely into your travel bag and also features an integrated host connection cable that tucks neatly into the docking stations casing. A versatile solution for connecting an additional display to your laptop, the travel docking station offers HDMI video output with audio, or VGA video output, providing two popular interfaces for connecting a television, projector, or monitor as a second display, with support for resolutions up to 2048x1152 (QWXGA). Leveraging the high-bandwidth (5Gbps) USB 3.0 interface to deliver flexible video output, a USB 3.0 hub port, and Gigabit Ethernet, you can quickly set up a multi-functional workstation while on the run, without sacrificing one of your laptop USB ports. Setup is seamless and hassle-free; the travel dock will automatically download the latest driver when connected to a Mac or Windows system with an active network connection.
Main Specifications
- Product Description
- StarTech.com USB 3.0 to HDMI or VGA Adapter Dock - USB 3.0 Mini Docking Station w/ USB, GbE Ports - Portable Universal Laptop Travel Hub (USB3SMDOCKHV) - docking station - USB - HDMI - 1GbE
- Product Type
- Docking station
- Docking Interface
- USB
- Video Interfaces
- HDMI
- Dimensions (WxDxH)
- 5.5 cm x 12.5 cm x 1.7 cm
- Weight
- 100 g
- Colour
- Black
- Networking
- Gigabit Ethernet
- Manufacturer Warranty
- 3-year warranty
- Designed For
- P/N: ARMPIVOT, ARMPIVOTE, ARMPIVSTND, ARMSLIM, ARMUNONB
Product Features
Versatile connectivity options
This docking station includes multiple interfaces such as HDMI and VGA, allowing users to connect various displays effortlessly.
Reliable compliance standards
The device adheres to important compliance standards like FCC and RoHS, ensuring it meets safety and environmental guidelines.
Mac compatibility
Tailored for Mac systems, this docking station simplifies the connection process, making it ideal for users looking to expand their workspace.
High-speed networking capabilities
Equipped with Ethernet connections, this docking station supports 10Base-T, 100Base-TX, and 1000Base-T protocols for fast data transmission.
Suitable operating temperature range
With a minimum operating temperature of 0°C and a maximum of 40°C, this device is built to perform well across various settings.
Specifications
Ports & interfaces
- Connectivity technology
- Wired
- Host interface
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A
- USB 2.0 ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 1
- HDMI ports quantity
- 1
- Microphone in
- No
- Headphone outputs
- 0
- VGA (D-Sub) ports quantity
- 1
Network
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX, 1000BASE-T
- Networking standards
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
- Auto MDI/MDI-X
- Yes
- Full duplex
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s Mbit/s
Performance
- Product colour
- Black
- Card reader integrated
- No
- Data transfer rate
- 5 Gbit/s
- Maximum digital resolution
- 2048 x 1152 pixels
- LED indicators
- Activity, Link
- UASP support
- Yes
- Housing material
- Plastic
- Brand compatibility
- Any brand
- Certification
- CE, FCC, REACH
- Data transfer rate
- 5 Gbit/s Gbit/s
- Maximum digital resolution
- 2048 x 1152 pixels pixels
Power
- Power source type
- USB
Software
- Windows operating systems supported
- Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
- Mac operating systems supported
- Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 0 - 90%
- Operating temperature (T-T)
- 0 - 40 °C °C
- Storage temperature (T-T)
- -20 - 70 °C °C
- Operating relative humidity (H-H)
- 0 - 90% %
Weight & dimensions
- Width
- 55 mm
- Depth
- 125 mm
- Height
- 17 mm
- Weight
- 82 g
- Width
- 55 mm mm
- Depth
- 125 mm mm
- Height
- 17 mm mm
- Weight
- 82 g g
Packaging data
- Package width
- 167 mm
- Package depth
- 143 mm
- Package height
- 43 mm
- Package weight
- 192 g
- Package width
- 167 mm mm
- Package depth
- 143 mm mm
- Package height
- 43 mm mm
- Package weight
- 192 g g

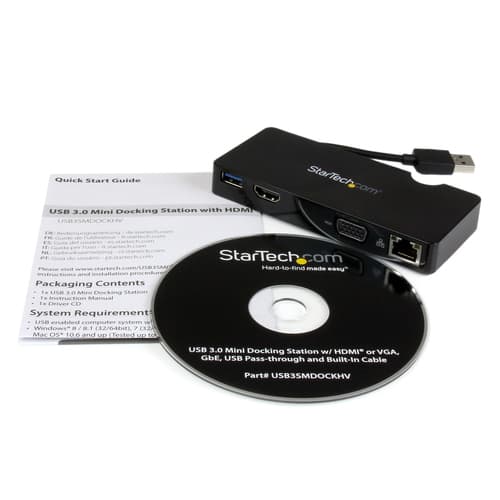

Packaging content
- Manual
- Yes
- Drivers included
- Yes
Technical details
- Compliance certificates
- RoHS
Logistics data
- Products per master (outer) case
- 40 pc(s)
- Master (outer) case width
- 346 mm
- Master (outer) case length
- 448 mm
- Master (outer) case height
- 309 mm
- Harmonized System (HS) code
- 84733020
- Products per master (outer) case
- 40 pc(s) pc(s)
- Master (outer) case width
- 346 mm mm
- Master (outer) case length
- 448 mm mm
- Master (outer) case height
- 309 mm mm
Other features
- Cable length
- 0.093 m
- Chipset
- DisplayLink - DL-3700
- Cable length
- 0.093 m m
