Triple Monitor DP 1.4 MST USB-C Gen2 Dock - 2xDP + HDMI - 1C
Triple 4K Monitor USB Type-C Docking Station
100W Power Delivery
DP 1.4 Alt Mode & DSC, 2x DisplayPort 1.4/HDMI 2.0
6xUSB (2x 10Gbps)
Windows/Chrome
Docking station
USB-C
2 x DP, HDMI
1GbE
100 Watt
Weight: 1.35 KG

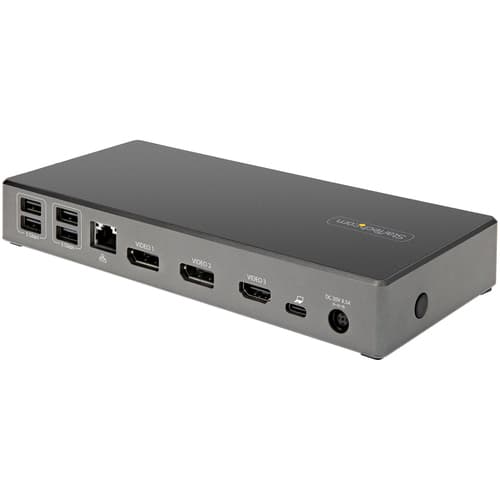

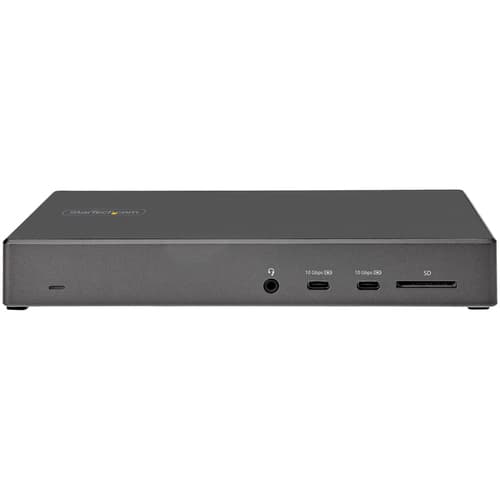

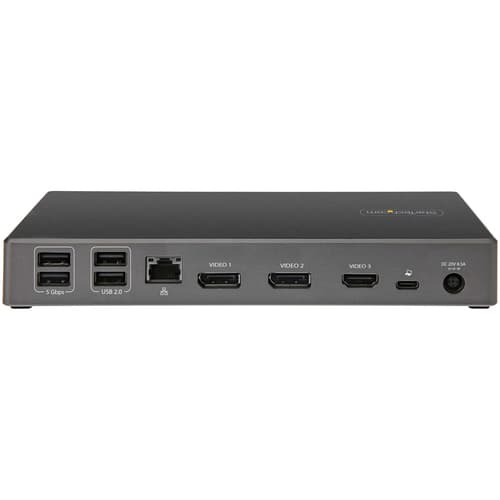

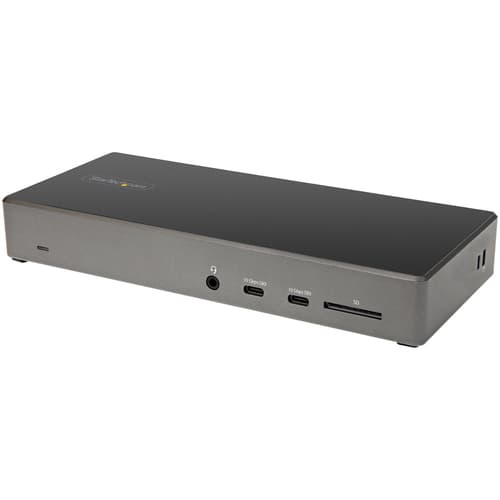

- HIGH PERFORMANCE USB-C DOCK: USB-C docking station for Windows/ChromeOS, featuring up to three 4K video outputs (2x DisplayPort 1.4 & 1x HDMI 2.0), 100W PD, 6 port USB Hub (10Gbps), SD 4.0 Card Reader, Gigabit Ethernet, and headset port
- DISPLAYPORT 1.4 WITH DSC: Triple monitor USB-C docking station (MST) supports dual 4K 60Hz or triple 4K 30Hz on DP 1.4 Alt-Mode HBR3 w/ DSC enabled laptop (min. Intel 11th Gen); works with DP 1.2 supporting dual monitor 1080p @ 60Hz (see image gallery)
- 100W POWER DELIVERY CHARGING: Power & charge Windows-based USB-C/Thunderbolt 3 workstation laptops, Chromebooks, ultrabooks including Lenovo X1 Carbon, ThinkPad P Series, Dell Latitudes, Precision, XPS 15, HP Spectre, and ZBook
- 6-PORT USB HUB: 2x 10Gbps USB-C (USB 3.2/3.1 Gen 2), both BC 1.2 fast charge always-on ports), 2x USB 3.0 5Gbps, and 2x USB 2.0; a variety of USB ports to connect many peripherals incl. two 10Gbps high speed USB-C ports for external drives

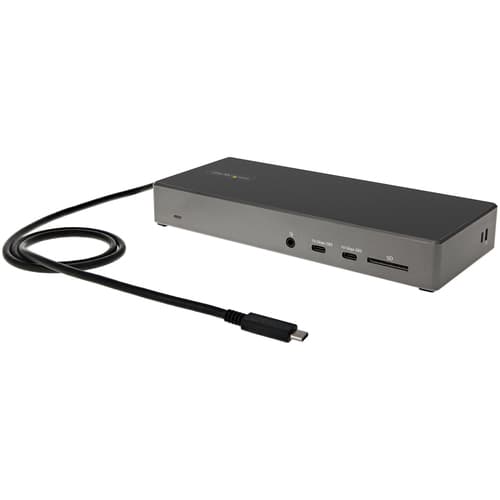

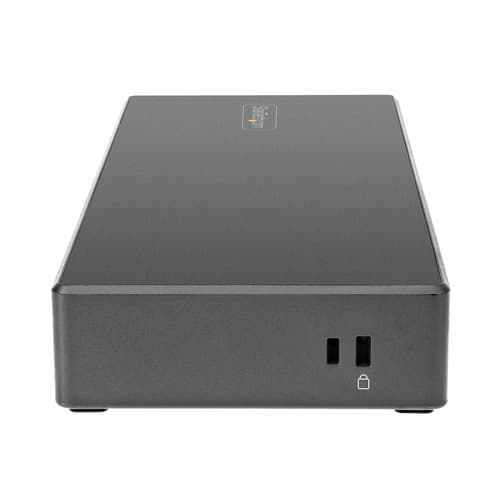

- DEPLOYMENT READY: Universal multi monitor USB Type-C docking station with no driver setup, features 2x security lock k-slots, On/Off button & MAC address changer for IT management, 3.3ft (1m) USB-C host cable; Windows/ChromeOS support
Similar Products
Overview
This USB-C Gen 2 10 Gbps docking station turns your USB-C or Thunderbolt 3 Windows laptop or Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple video outputs up to 4K 60 Hz to 10 Gbps USB-C and USB-A downstream peripheral ports to 100 W power delivery.
Specifications
Ports & interfaces
- USB Power Delivery up to
- 100 W W
- Connectivity technology
- Wired
- Host interface
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- HDMI ports quantity
- 1
- Headphone outputs
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 2
- USB Power Delivery (USB PD)
- Yes
- USB Power Delivery up to
- 100 W
- HDMI version
- 2.0
- DisplayPorts quantity
- 2
- DisplayPort version
- 1.4
- Combo headphone/mic port
- Yes
- Headphone connectivity
- 3.5 mm
- DC-in jack
- Yes
Network
- Ethernet LAN data rates
- 10,100,1000 Mbit/s Mbit/s
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX, 1000BASE-T
- Networking standards
- IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
Performance
- Data transfer rate
- 10 Gbit/s Gbit/s
- Maximum digital resolution
- 3840 x 2160 pixels pixels
- Maximum refresh rate
- 60 Hz Hz
- Product colour
- Black, Grey
- Card reader integrated
- Yes
- Compatible memory cards
- MMC, SD
- Data transfer rate
- 10 Gbit/s
- HD type
- 4K Ultra HD
- Maximum digital resolution
- 3840 x 2160 pixels
- Number of displays supported
- 3
- Maximum refresh rate
- 60 Hz
- Cable lock slot
- Yes
- LED indicators
- Yes
- Certification
- CE, FCC, RoHS
Power
- AC input voltage
- 100 - 240 V V
- AC input voltage
- 100 - 240 V
- Power plug type
- Type M
- Compatible power plug types
- EU, UK
Weight & dimensions
- Width
- 210 mm mm
- Depth
- 90 mm mm
- Height
- 30 mm mm
- Weight
- 300 g g
- Width
- 210 mm
- Depth
- 90 mm
- Height
- 30 mm
- Weight
- 300 g
Packaging data
- Package width
- 270 mm mm
- Package depth
- 150 mm mm
- Package height
- 94 mm mm
- Package weight
- 1.4 kg kg
- Package width
- 270 mm
- Package depth
- 150 mm
- Package height
- 94 mm
- Package weight
- 1.4 kg
Logistics data
- Products per master (outer) case
- 4 pc(s) pc(s)
- Master (outer) case width
- 390 mm mm
- Master (outer) case length
- 282 mm mm
- Master (outer) case height
- 195 mm mm
- Products per master (outer) case
- 4 pc(s)
- Master (outer) case width
- 390 mm
- Master (outer) case length
- 282 mm
- Master (outer) case height
- 195 mm
- Harmonized System (HS) code
- 84733020
Software
- Windows operating systems supported
- Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
- Mobile operating systems supported
- Android 10, Android 9.0, iPadOS
- Other operating systems supported
- ChromeOS
Packaging content
- Cables included
- USB Type-C to USB Type-C
- AC adapter included
- Yes
- Quick start guide
- Yes
Other features
- Chipset
- Cypress - CYPD4236, Synaptics - VMM5320BJG-R
General
- Product Type
- Docking station
- Docking Interface
- USB-C
- Video Interfaces
- 2 x DP, HDMI
