StarTech.com USB-C & USB-A Dock, Hybrid Universal Laptop Docking Station with 100W Power Delivery, Dual Monitor 4K 60Hz HDMI & DisplayPort, 4x USB 3.1 Gen 1 Hub, Gigabit Ethernet (GbE) - Hybrid USB Type-C Dock (DK30C2DPEPUE) - Docking station - USB-C - 2 x HDMI, 2 x DP - 1GbE - 170 Watt

Manuf P/N: DK30C2DPEPUE
APAXON#: 5071282
EAN: 0065030879989

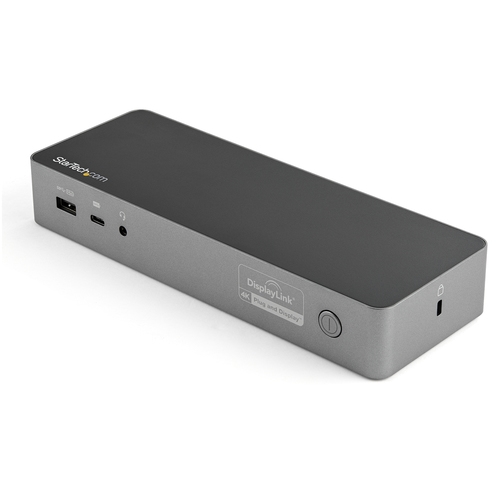

StarTech.com USB-C & USB-A Dock, Hybrid Universal Laptop Docking Station with 100W Power Delivery, Dual Monitor 4K 60Hz HDMI & DisplayPort, 4x USB 3.1 Gen 1 Hub, Gigabit Ethernet (GbE) - Hybrid USB Type-C Dock (DK30C2DPEPUE) - Docking station - USB-C - 2 x HDMI, 2 x DP - 1GbE - 170 Watt

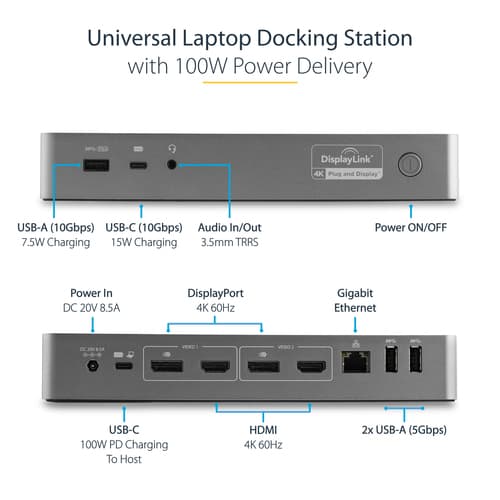

  • Supports dual monitors with up to 4K resolution
  • Includes multiple connectivity options like HDMI and DisplayPort
  • Provides 100 W power delivery for charging devices
  • Features Kensington security slot for enhanced security
  • Complies with various standards including FCC and RoHS
Stock116
Price £226.15
Quantity
|

Product Summary

Transition from the legacy USB-A (USB 3.0) to the USB-C with this certified universal laptop docking station for USB-C and USB-A laptops. The USB-C dock features 100 W power delivery 3.0, dual HDMI and/or DisplayPort monitors, fast-charge, and both USB-C and USB-A peripheral ports.

Main Specifications

Product Description
StarTech.com USB-C & USB-A Dock, Hybrid Universal Laptop Docking Station with 100W Power Delivery, Dual Monitor 4K 60Hz HDMI & DisplayPort, 4x USB 3.1 Gen 1 Hub, Gigabit Ethernet (GbE) - Hybrid USB Type-C Dock (DK30C2DPEPUE) - docking station - USB-C - 2 x HDMI, 2 x DP - 1GbE
Product Type
Docking station
Docking Interface
USB-C
Video Interfaces
2 x HDMI, 2 x DP
Dimensions (WxDxH)
22 cm x 8 cm x 3 cm
Weight
280 g
Colour
Black, space grey
Localisation
United Kingdom, Europe
Networking
Gigabit Ethernet
Power
Power adapter AC 120/230 V 170 Watt Power Provided
Manufacturer Warranty
3-year warranty
Versatile connectivity options

Equipped with a variety of ports, including USB 3. 1, HDMI, and DisplayPort, this dock allows for multiple connections to different devices, enhancing productivity.

High-resolution support

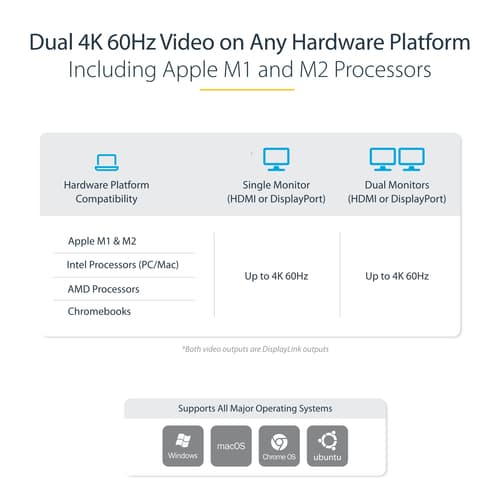

Offers support for dual monitors with resolutions up to 4096 x 2160 at 60 Hz, providing clear visuals for demanding tasks.

Effective power delivery

Capable of delivering up to 100 W, this dock supports fast charging for connected devices, ensuring that devices remain powered during use.

Sturdy design with security features

Includes a Kensington security slot, providing protection for the dock while maintaining a solid build quality suited for everyday use.

Wide compatibility

Supports various protocols and complies with standards such as USB 3. 0 and Gigabit Ethernet, ensuring compatibility with a range of devices and network environments.

Extended Specification

Performance
Data transfer rate
5 Gbit/s Gbit/s
Maximum digital resolution
5120 x 2880 pixels pixels
Product colour
Black, Grey
Card reader integrated
No
Data transfer rate
5 Gbit/s
Maximum digital resolution
5120 x 2880 pixels
Cable lock slot
Yes
Cable lock slot type
Kensington
On/off switch
Yes
UASP support
Yes
Housing material
Plastic
Certification
CE, FCC, REACH
Power
AC input voltage
100 - 240 V V
Input current
2.5 A A
Power supply
100 W W
Output voltage
20 V V
Output current
8.5 A A
Power consumption (typical)
170 W W
AC input voltage
100 - 240 V
Input current
2.5 A
Power supply
100 W
Output voltage
20 V
Output current
8.5 A
Power consumption (typical)
170 W
Power plug type
Type N
Compatible power plug types
EU, UK
Operational conditions
Operating temperature (T-T)
0 - 50 °C °C
Storage temperature (T-T)
-20 - 70 °C °C
Operating relative humidity (H-H)
0 - 95% %
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 95%
Weight & dimensions
Width
80 mm mm
Depth
220 mm mm
Height
30 mm mm
Weight
280 g g
Width
80 mm
Depth
220 mm
Height
30 mm
Weight
280 g
Packaging data
Package width
155 mm mm
Package depth
270 mm mm
Package height
90 mm mm
Package weight
1.3 kg kg
Package width
155 mm
Package depth
270 mm
Package height
90 mm
Package weight
1.3 kg
Logistics data
Products per master (outer) case
6 pc(s) pc(s)
Master (outer) case width
280 mm mm
Master (outer) case length
335 mm mm
Master (outer) case height
302 mm mm
Products per master (outer) case
6 pc(s)
Master (outer) case width
280 mm
Master (outer) case length
335 mm
Master (outer) case height
302 mm
Harmonized System (HS) code
84733020
Ports & interfaces
Connectivity technology
Wired
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
HDMI ports quantity
2
Headphone outputs
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
DisplayPorts quantity
2
Combo headphone/mic port
Yes
Headphone connectivity
3.5 mm
DC-in jack
Yes
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Full duplex
Yes
10G support
No
Software
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac compatibility
Yes
Mac operating systems supported
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura
Other operating systems supported
ChromeOS

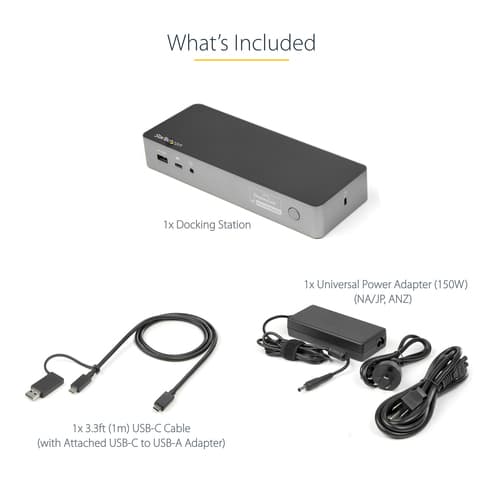

Packaging content

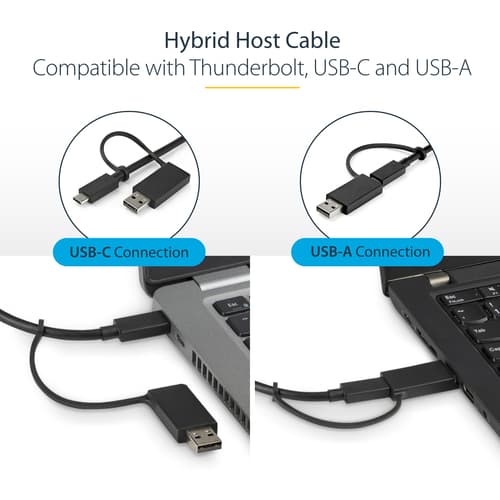

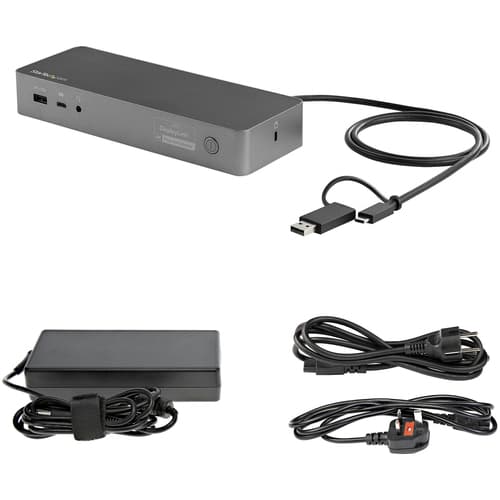

Cables included
USB Type-A to USB Type-C
AC adapter included
Yes
Quick start guide
Yes
Technical details
Compliance certificates
RoHS
Other features
Chipset
DisplayLink - DL6950, Genesys Logic - GL3523, Fresco Logic - FL7102, Fresco Logic - FL7201, VIA Labs - VL160, RealTek - RTL8153, Texas Instruments - TS3A225E
StarTech.com USB-C & USB-A Dock, Hybrid Universal Laptop Docking Station with 100W Power Delivery, Dual Monitor 4K 60Hz HDMI & DisplayPort, 4x USB 3.1 Gen 1 Hub, Gigabit Ethernet (GbE) - Hybrid USB Type-C Dock (DK30C2DPEPUE) - Docking station - USB-C - 2 x HDMI, 2 x DP - 1GbE - 170 Watt
