StarTech.com USB-C & USB-A Dock, Hybrid Universal Triple Monitor Laptop Docking Station w/ DisplayPort & HDMI 4K 60Hz, 85W Power Delivery, 6x USB Hub, Ethernet, Audio, USB 3.1 Gen 2 10Gbps - Multi-Monitor Dock (DK31C3HDPDUE) - Docking station - USB-C - 3 x HDMI, 3 x DP - 1GbE - 85 Watt

StarTech.com USB-C & USB-A Dock, Hybrid Universal Triple Monitor Laptop Docking Station w/ DisplayPort & HDMI 4K 60Hz, 85W Power Delivery, 6x USB Hub, Ethernet, Audio, USB 3.1 Gen 2 10Gbps - Multi-Monitor Dock (DK31C3HDPDUE) - Docking station - USB-C - 3 x HDMI, 3 x DP - 1GbE - 85 Watt

Manuf P/N: DK31C3HDPDUE

APAXON#: 6192176

EAN: 0065030881944

Flexible multi display setup: USB 3.1 Gen 2 10Gbps Type-C/A dock supports dual or triple monitor setup (up to 3x 4K 60 Hz), using any combination of the 3x DisplayPort 1.4 & 3x HDMI with HDR ports
85W power delivery: power & charge USB-C/Thunderbolt 3 workstation laptops/ultrabooks

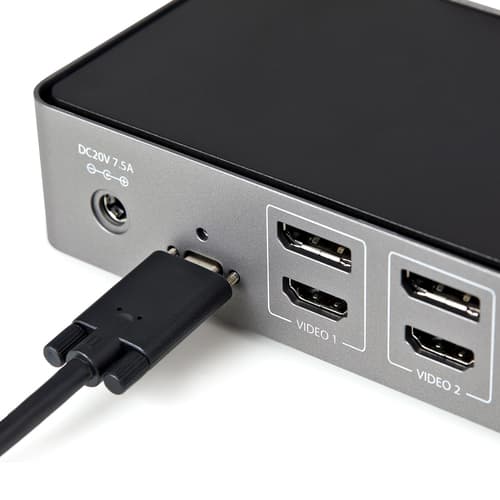

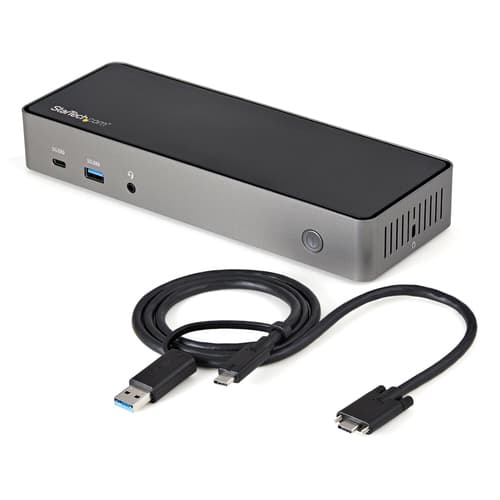

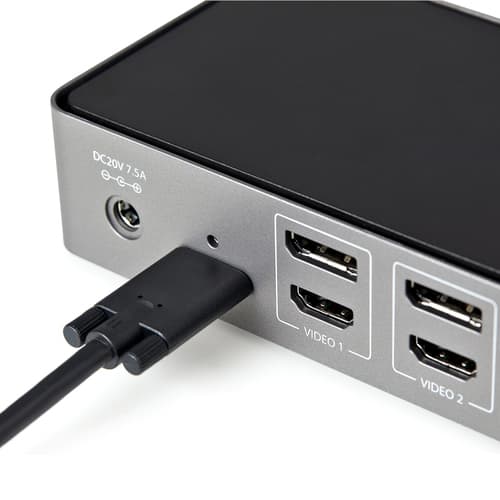

Universal docking station: hybrid dock includes combo 2-in-1 USB-C/USB-A USB-IF Certified host cable; secure screw lock on dock & cable prevents accidental disconnect & missing cable; TB3 compatible

Stock46

Price £172.63

Quantity

Notify me when available.

Product Summary

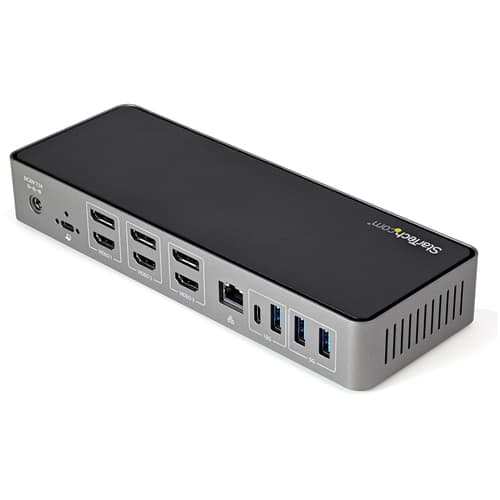

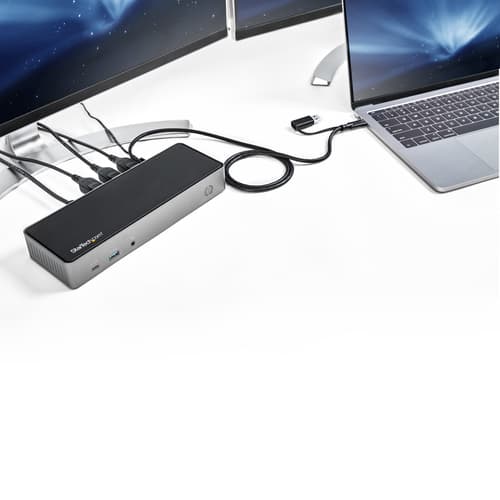

This USB-C Gen 2 10 Gbps docking station turns your USB-C or Thunderbolt 3 MacBook Pro, Windows laptop, and Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple HDMI or DisplayPort video outputs up to 4K 60 Hz to 10 Gbps USB-C and USB-A downstream peripheral ports to 85W Power Delivery.

Main Specifications

Product Description: StarTech.com USB-C & USB-A Dock, Hybrid Universal Triple Monitor Laptop Docking Station w/ DisplayPort & HDMI 4K 60Hz, 85W Power Delivery, 6x USB Hub, Ethernet, Audio, USB 3.1 Gen 2 10Gbps - Multi-Monitor Dock (DK31C3HDPDUE) - docking station - USB-C - 3 x HDMI, 3 x DP - 1GbE
Product Type: Docking station
Docking Interface: USB-C

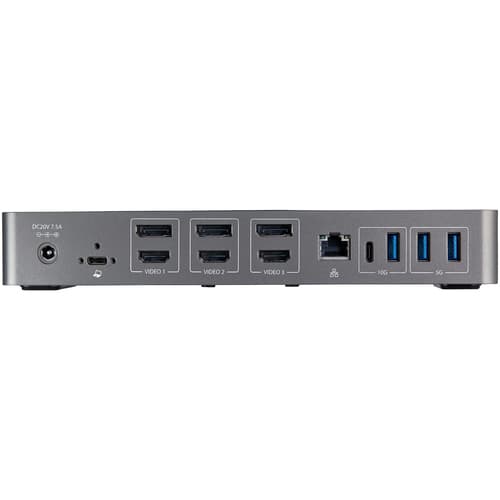

Video Interfaces: 3 x HDMI, 3 x DP
Dimensions (WxDxH): 8.4 cm x 23.3 cm x 3.7 cm
Weight: 365 g
Colour: Grey, black
Networking: Gigabit Ethernet
Power: Power adapter AC 100/240 V 85 Watt Power Provided
Manufacturer Warranty: 3-year warranty

Versatile connectivity

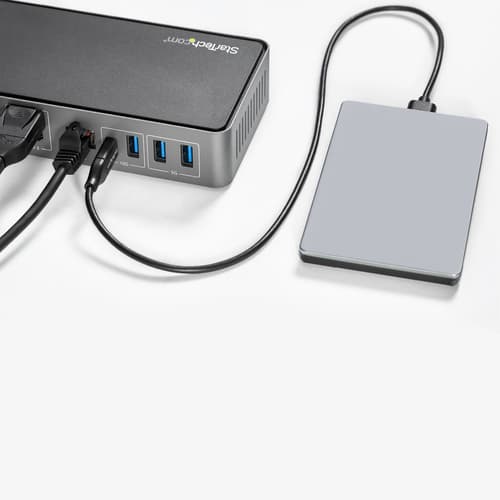

Equipped with multiple USB 3. 1 Gen 2 and USB-C ports, this docking station offers a wide range of connectivity options for both USB-C and USB-A devices, ensuring compatibility with a variety of laptops and peripherals.

High-resolution support

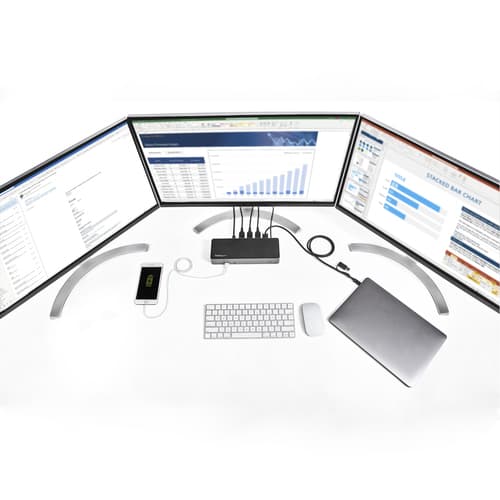

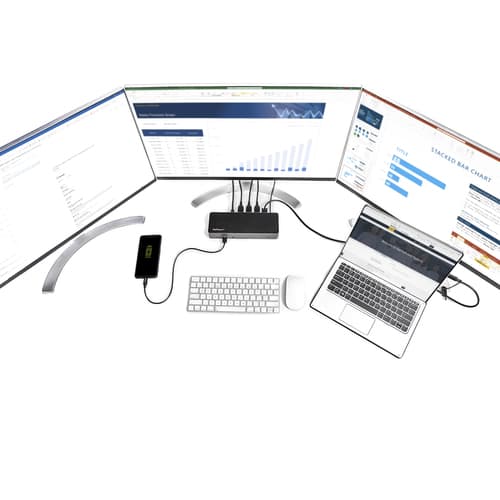

Supports triple monitor setups with DisplayPort and HDMI 4K at 60Hz, providing stunning, high-resolution visuals across three displays for an immersive multi-monitor experience.

Powerful charging capability

With 85 W of power delivery, this docking station can charge your laptop and power all connected devices, ensuring your workspace remains productive without the need for multiple power sources.

Enhanced network performance

Features a built-in Ethernet port supporting up to Gigabit Ethernet speeds, facilitating fast and reliable wired network connections for data-intensive tasks.

Advanced features for professionals

Incorporates HDR support, full duplex support, and up to 3 monitors support, alongside PXE boot and UASP transfer protocol, making it an ideal solution for professionals seeking enhanced productivity and performance.

Extended Specification

Ports & interfaces

Connectivity technology

Wired

Host interface

USB 3.2 Gen 2 (3.1 Gen 2) Type-C

USB 2.0 ports quantity

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

HDMI ports quantity

Headphone outputs

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

USB Power Delivery (USB PD)

Yes

USB Power Delivery up to

85 W

HDMI version

2.0

DisplayPorts quantity

Combo headphone/mic port

Yes

DC-in jack

Yes

USB Power Delivery up to

85 W W

Network

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

Ethernet LAN data rates

10,100,1000 Mbit/s

Ethernet LAN data rates

10,100,1000 Mbit/s Mbit/s

Performance

Product colour

Black, Grey

Card reader integrated

Data transfer rate

10 Gbit/s

Maximum digital resolution

3840 x 2160 pixels

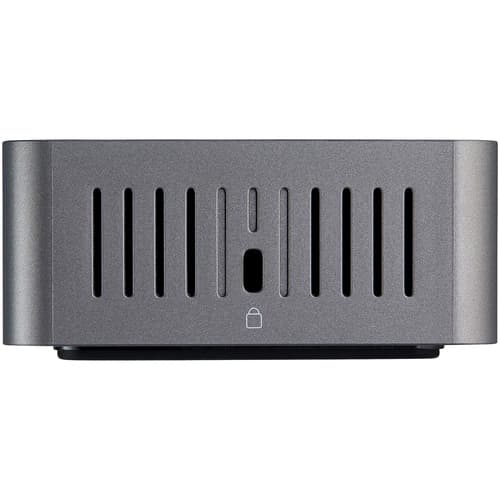

Cable lock slot

Yes

Cable lock slot type

Kensington

Housing material

Aluminium, Plastic

Certification

CE, FCC

Data transfer rate

10 Gbit/s Gbit/s

Maximum digital resolution

3840 x 2160 pixels pixels

Power

AC input voltage

100 - 240 V

Input current

2.5 A

Output voltage

20 V

Output current

7.5 A

Power plug type

Type M

Compatible power plug types

EU, UK

AC input voltage

100 - 240 V V

Input current

2.5 A A

Output voltage

20 V V

Output current

7.5 A A

Software

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64

Mac operating systems supported

Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

0 - 50 °C °C

Storage temperature (T-T)

-20 - 70 °C °C

Operating relative humidity (H-H)

0 - 95% %

Weight & dimensions

Width

84 mm

Depth

233 mm

Height

37 mm

Weight

365 g

Width

84 mm mm

Depth

233 mm mm

Height

37 mm mm

Weight

365 g g

Packaging data

Package width

172 mm

Package depth

253 mm

Package height

91 mm

Package weight

1.7 kg

Package width

172 mm mm

Package depth

253 mm mm

Package height

91 mm mm

Package weight

1.7 kg kg

Packaging content

Cables included

USB Type-A to USB Type-C

AC adapter included

Yes

Quick start guide

Yes

Technical details

Compliance certificates

RoHS

Logistics data

Products per master (outer) case

6 pc(s)

Master (outer) case width

315 mm

Master (outer) case length

395 mm

Master (outer) case height

300 mm

Harmonized System (HS) code

84733020

Products per master (outer) case

6 pc(s) pc(s)

Master (outer) case width

315 mm mm

Master (outer) case length

395 mm mm

Master (outer) case height

300 mm mm

Other features

Cable length

1 m

Chipset

Realtek RTS5423, Realtek RTS5411, Realtek RTS5412, Realtek RTS5451, Realtek RTD2142, DisplayLink DL6950

Cable length

1 m m
