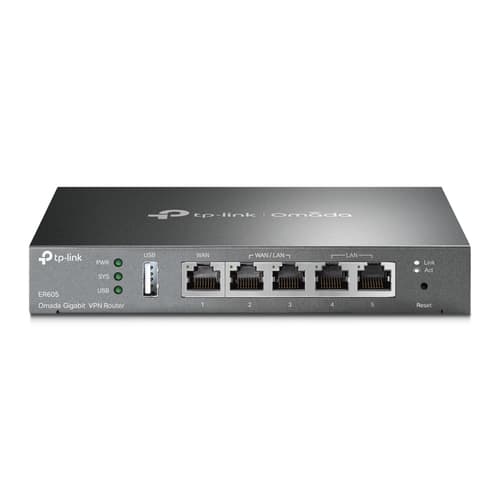

TP-Link Omada ER605 V2
Router 4-port switch
1GbE
WAN ports: 3
wall-mountable
Weight: 0.68 KG

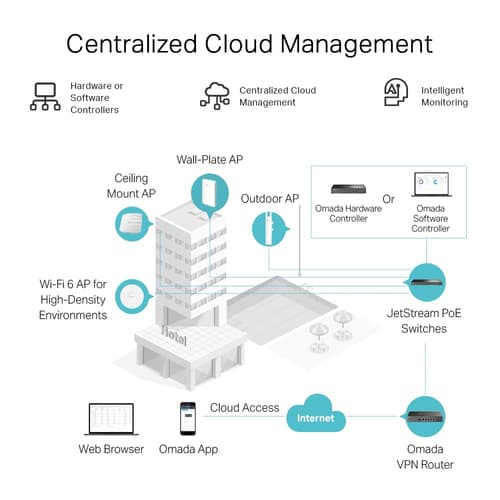

- Integrated into Omada SDN: Zero-Touch Provisioning***, Centralized Cloud Management, and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for convenience and easy management
- Five Gigabit Ports: High-speed wired connectivity

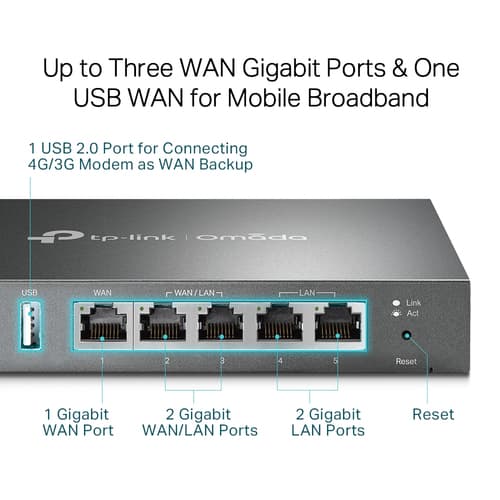

- Up to 3 WAN Ethernet Ports: 1 gigabit WAN port and 2 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband
- One USB WAN Port for Mobile Broadband: Mobile broadband via 4G/3G modem is supported for WAN backup by connecting to the USB port.‡

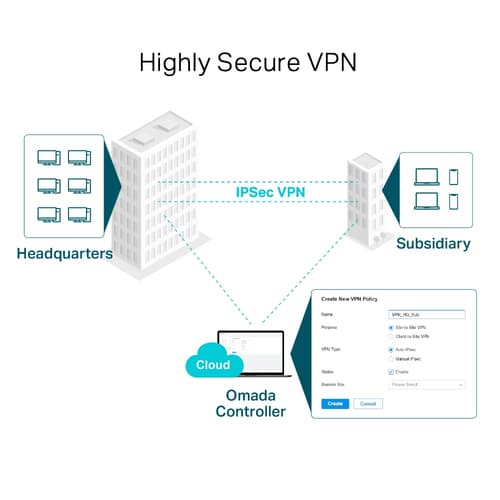

- Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections
- Abundant Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data
Similar Products
Overview
The TP-Link Omada ER605 V2.8 bridges and routers are designed to meet the demands of modern businesses, offering a blend of high performance, enhanced security, and versatile connectivity. With support for up to 150,000 concurrent sessions and NAT throughput up to 1808.29 Mbps, it ensures smooth and efficient operation even in high-demand environments. Security is prioritized with a suite of encryption algorithms and VPN support, protecting your data and providing secure remote access. The device's fanless design and steel housing make it a durable and silent addition to any setup, while advanced features like VLAN support, OpenVPN server and client capabilities, and zero-touch provisioning make network management straightforward and efficient. Whether for a small office or a growing enterprise, the TP-Link Omada ER605 V2.8 offers the features and performance needed to support your network's needs.
Specifications
WAN connection
- Ethernet WAN
- Yes
- DSL WAN
- No
- SIM card slot
- No
- 3G/4G USB modem compatibility
- No
Network
- Networking standards
- IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
- Ethernet interface type
- Gigabit Ethernet
- Cabling technology
- 10/100/1000Base-T(X)
- Ethernet LAN data rates
- 10,100,1000 Mbit/s Mbit/s
- VLAN support
- Yes
- Traffic control
- Yes
- Policy-based routing
- Yes
- Concurrent connections
- 150000
Management features
- Web-based management
- Yes
- Universal Plug and Play (UPnP)
- Yes
- Reset button
- Yes
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 5
- USB ports quantity
- 1
Protocols
- DHCP client
- Yes
- DHCP server
- Yes
- DMZ support
- Yes
- Routing protocols
- RIP-1, RIP-2
- Management protocols
- Telnet
- Supported network protocols
- TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP
- Supported protocols
- IPsec/PPTP/L2TP
Security
- Security algorithms
- 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1
- Firewall
- Yes
- Authentication method
- SHA-1, MD5
- URL filtering
- Yes
- DoS attack prevention
- Yes
- ARP attack prevention
- Yes
- Network address translation (NAT)
- Yes
- System event log
- Yes
- VPN tunnels quantity
- 20
- VPN support
- • 20 IPsec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IKEv1/v2 • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) • PPTP VPN Server • 10 PPTP VPN Clients • 16 Tunnels • PPTP with MPPE Encryption • L2TP VPN Server • 10 L2TP VPN Clients • 16 Tunnels • L2TP over IPSec • OpenVPN Server • 10 OpenVPN Clients • 16 OpenVPN Tunnels
- NAT functionality
- • One-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Certificates
- Compliance certificates
- RoHS
Packaging content
- Cables included
- AC
- Manual
- Yes
- Quick start guide
- Yes
- Quick installation guide
- Yes
Features
- Internal memory
- 256 MB MB
- Internal memory type
- DRAM
- Windows operating systems supported
- Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
- Mac operating systems supported
- MacOS
- Linux operating systems supported
- Yes
- Certification
- CE, FCC, RoHS
- Flash memory
- 128 MB MB
Design
- Product colour
- Black
- Rack mounting
- Yes
- Rack capacity
- 1U
- LED indicators
- Activity, LAN, System, USB, WAN
Power
- Power consumption (typical)
- 7.94 W W
- Power source type
- AC
- AC input voltage
- 120 - 240 V V
- AC input frequency
- 50 - 60 Hz Hz
Weight & dimensions
- Depth
- 101 mm mm
- Height
- 25 mm mm
- Width
- 158 mm mm
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C °C
- Storage temperature (T-T)
- -40 - 70 °C °C
- Operating relative humidity (H-H)
- 10 - 90% %
- Storage relative humidity (H-H)
- 5 - 90% %
Packaging data
- Package width
- 190 mm mm
- Package depth
- 254 mm mm
- Package height
- 60 mm mm
- Package weight
- 650 g g
