This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

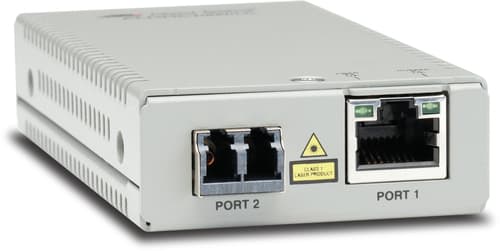

Allied Telesis AT DMC100/LC - Fibre media converter - 100Mb LAN - 100Base-FX, 100Base-TX - RJ-45 / LC multi-mode - up to 2 km - 1310 nm
- Wired
- 100 Mbit/s 2000 m 1310 nm
- 100BASE-FX
- Ethernet LAN (RJ-45) ports: 1
- Multi-mode Fiber ports quantity: 1 LC 50/125,62.5/125 µm
- DIN rail mounting
- Grey
Similar Products
Overview
Allied Telesis AT-DMC100/LC-30 network media converter 100 Mbit/s 1310 nm Multi-mode Grey
Specifications
Network
- Maximum data transfer rate
- 100 Mbit/s
- Converter input interface
- 100Base-TX
- Converter output interface
- 100Base-FX
- Networking standards
- IEEE 802.1Q
- Fiber ethernet cabling technology
- 100BASE-FX
- Data transfer rate
- 100 Mbit/s
- Auto MDI/MDI-X
- Yes
- Auto-negotiation
- Yes
- Duplex system
- Full, Half
- Link Loss Carry Forward (LLCF) supported
- Yes
- Link Loss Return (LLR) supported
- Yes
Performance
- Maximum transfer distance
- 2000 m
- Wavelength
- 1310 nm
- Fiber mode structure
- Multi-mode
- Fiber cable diameters supported (core/cladding)
- 50/125,62.5/125 µm
- Tx power (min)
- -22.5 dBmW
- Tx power (max)
- -14 dBmW
- Rx power (min)
- -32 dBmW
- Rx power (max)
- -14 dBmW
Features
- Internal
- No
- LED indicators
- Yes
- Product colour
- Grey
- DIN rail mounting
- Yes
Ports & interfaces
- Fiber optic connector
- LC
- Connectivity technology
- Wired
- Ethernet LAN (RJ-45) ports
- 1
- Fiber ports quantity
- 1
Weight & dimensions
- Width
- 31.8 mm
- Depth
- 91.4 mm
- Height
- 21.6 mm
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 65 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
- Operating altitude
- 0 - 3048 m
Certificates
- Compliance certificates
- RoHS
