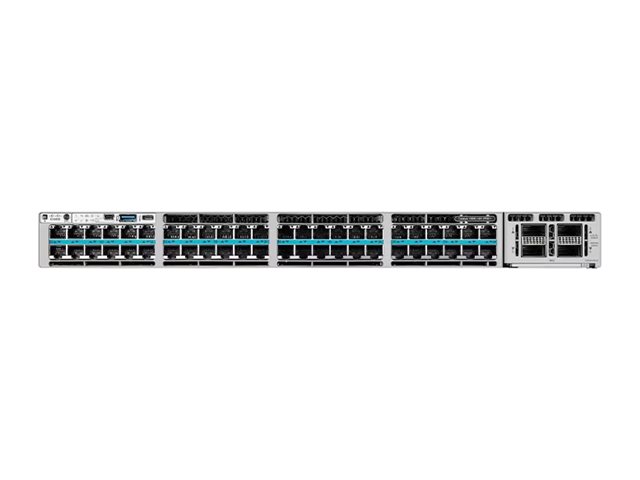

Cisco Catalyst 9300X
Network Advantage
switch
L3
Managed
8 x 100/1000/2.5G/5G/10GBase-T (UPOE+) + 40 x 100/1000/2.5G/5GBase-T (UPOE+)
rack-mountable
UPOE+
Weight: 11.26 KG
- USB 2.0 slot to load system images and set configurations
- Easy transition from 10G to 25G with dual-rate optics
- Flexible downlink options with 1G Copper and Fiber as well as the densest Multigigabit links
- Intelligent Power Management with Cisco StackPower technology, providing power stacking among members for power redundancy
- Line-rate, hardware-based Flexible NetFlow (FNF), delivering flow collection of up to 128,000 flows
- IPv6 support in hardware, providing wire-rate forwarding for IPv6 networks
- Dual-stack support for IPv4/IPv6 and dynamic hardware forwarding table allocations for ease of IPv4-to-IPv6 migration
- Support for both static and dynamic NAT and Port Address Translation (PAT)
Similar Products
Overview
Cisco Catalyst 9300 Series switches are Cisco's lead stackable enterprise access switching platform and as part of the Catalyst 9000 family, are built to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place.
Specifications
General
- Max Units In A Stack
- 8
- Enclosure Type
- Rack-mountable
- RAM
- 16 GB
- Flash Memory
- 16 GB
- Status Indicators
- Status
- Subtype
- 10 Gigabit Ethernet
- Encryption Algorithm
- 256-bit AES, 128-bit AES
- Built-in Devices
- RFID tag
- Device Type
- Switch - 48 ports - L3 - Managed - stackable
- MAC Address Table Size
- 32000 entries
- Jumbo Frame Support
- 9198 bytes
- Power Over Ethernet (PoE)
- UPOE+
- Performance
- Switching capacity: 2000 Gbps Switching capacity with stacking: 3000 Gbps Forwarding rate: 1488 Mpps Forwarding rate with stacking: 2232 Mpps
- Capacity
- IPv4 routing table entries: 39000 Multicast routes: 8000 QoS scale entries: 4000 ACL scale entries: 8000 IPv6 routing table entries: 19500 Packet buffer size: 16 MB FNF entries: 64000 VLAN IDs: 4094 Switched virtual interfaces (SVIs): 1000
- Ports
- 8 x 100/1000/2.5G/5G/10GBase-T (UPOE+) + 40 x 100/1000/2.5G/5GBase-T (UPOE+)
- Remote Management Protocol
- NETCONF, RESTCONF, YANG, HTTP, CLI, gRPC, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3
- Compliant Standards
- IEEE 802.1BA, IEEE 1588v2, IEEE 802.1ae, IEEE 802.1s, IEEE 802.1w, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz, IEEE 802.3an
- Routing Protocol
- MSTP, BGP, static IP routing, RIP-1, RIP-2, RIPng, OSPF, EIGRP, BGP-4, IS-ISv4, OSPFv3, BGP for IPv6, PIM-SM, PIM-SSM, MPLS, GRE, RIP, policy-based routing (PBR), STP, VRRP, HSRP, MSDP, Bidirectional PIM, LISP, mVPN
- Features
- Cisco UADP 2.0, QoS, PTP, MACsec support, SUDI, Cisco StackWise Technology, ZTP, Preboot Execution Environment, IPSec support, Cisco StackWise-1T technology, Rapid PVST+, FNF, NBAR 2, DSCP support, SRR, CIR, mDNS, EEE, Blue Beacon LED, EVPN, PIM, VPN support, VPLS, EoMPLS, CDP, FHS, 802.1x authentication, RSPAN, LACP support, full duplex mode, PVLAN support, CoPP, BSR Mechanism, VXLAN, TrustSec support, SGT caching, SPAN, NSF, GIR mode, AVB, CoAP support, VRF, LISP
