NETGEAR GS105
Thumbnail 0
Thumbnail 1

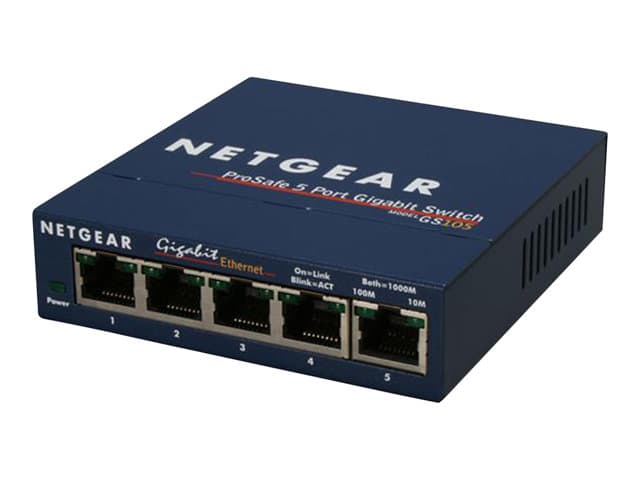

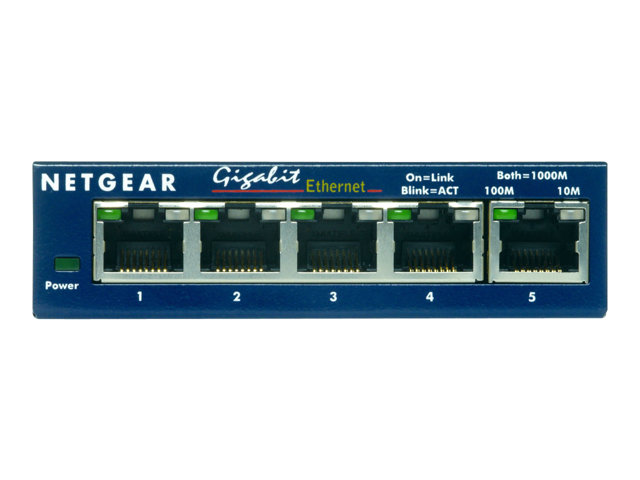

NETGEAR GS105

Manuf P/N: GS105UK
APAXON#: 872251
EAN: 0606449029703
ProSAFE 5-Port Gigabit Unmanaged Desktop Switch
Weight: 1.20 KG
  • Connects up to 10x faster than Fast Ethernet for maximum performance
  • Up to 60% lower power consumption
  • Auto power-down mode saves energy when port is unused
  • Simple to combine Fast Ethernet and Gigabit devices in your network
  • Plug-and-play installation delivers ease of use
UK Stock190
ConditionNew
Price £ 16.93
Price inc. VAT
£ 20.32
Quantity
|

Sales & Technical Enquiries

Product Summary

The NETGEAR Gigabit Unmanaged Switch series helps businesses cost-effectively expand their network to Gigabit speeds and higher port counts. The GS105 Gigabit Ethernet switch comes with 5 Gigabit copper ports in a desktop metal case and is wall-mountable. These switches are energy efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.

Extended Specification

Operational conditions
Operating temperature (T-T)
0 - 50 °C °C
Storage temperature (T-T)
-20 - 70 °C °C
Operating relative humidity (H-H)
10 - 95% %
Weight & dimensions
Width
94 mm mm
Depth
104 mm mm
Height
28 mm mm
Weight
490 g g
General
Enclosure Type
Desktop
RAM
128 KB
Subtype
Gigabit Ethernet
MAC Address Table Size
2K entries
Device Type
Switch - 5 ports
Features
Full duplex capability, auto-sensing per device, auto-uplink (auto MDI/MDI-X), store and forward
Ports
5 x 10/100/1000
Status Indicators
Collision status, port transmission speed, port duplex mode, power, link OK, link/activity
Management features
Switch type
Unmanaged
Ports & interfaces
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Network
Networking standards
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
10G support
No
Copper ethernet cabling technology
1000Base-T, 100Base-TX, 10Base-T
Full duplex
Yes
Flow control support
Yes
Ethernet LAN data rates
1000 Mbit/s Mbit/s
Design
LED indicators
Yes
Rack mounting
No
Product colour
Blue
Wall mountable
Yes
Logistics data
Harmonized System (HS) code
85176990
Data transmission
MAC address table
4000 entries entries
Switching capacity
10 Gbit/s Gbit/s
Jumbo frames support
Yes
Jumbo frames
9720
Performance
Compatible operating systems
Windows, Mac OS, NetWare, Linux
Power
DC input voltage
12 V V
Input current
1 A A
Power consumption (max)
3.5 W W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
NETGEAR GS105

Disclaimers

  • Product data is provided by CNET, we do not warrant the accuracy and completeness of the material contained in this data sheet
