StarTech.com - Fibre media converter - 1GbE - over fibre optic - 1000Base-T, 1000Base-LX, 10Base-T, 100Base-TX - LC Duplex single-mode / RJ-45 - up to 20 km - 1310 nm - TAA Compliant

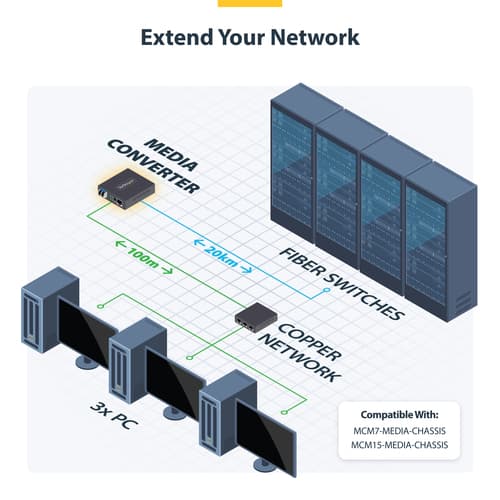

- <b>Extend Ethernet Over Extraordinary Distances</b>: Convert and extend a 10/100/1000 Mbps Ethernet signal to Gigabit single-mode LC fiber, up to 20km (12.4mi); For specialized edge, industrial / remote deployments requiring long-range, secure wired connectivity
- <b>Reliable Performance & Diagnostics</b>: Compatible with 1000BASE-T (IEEE 802.3ab) and 1000BASE-LX (IEEE 802.3z); Supports full/half duplex, 9K jumbo frames, auto-negotiation, and auto MDI/MDI-X; DIP switch enables Link Fault Passthrough (LFP) with LLCF/LLR

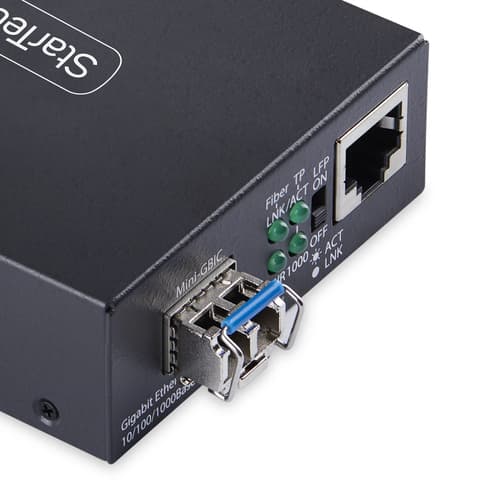

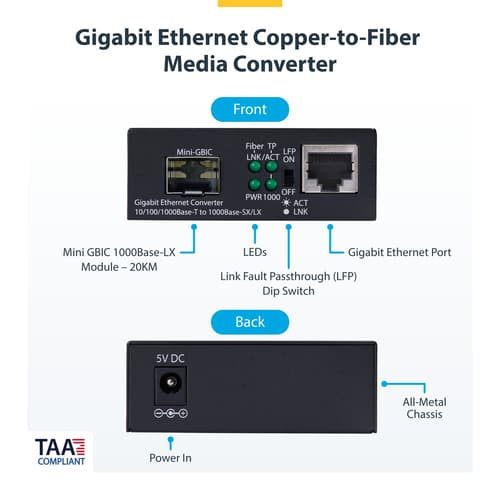

- <b>Durable, Compact Design</b>: All-metal chassis provides strong shielding and long-term durability, while the compact size fits easily into tight spaces; Built-in LED indicators make it easy to monitor link, power, and activity at a glance

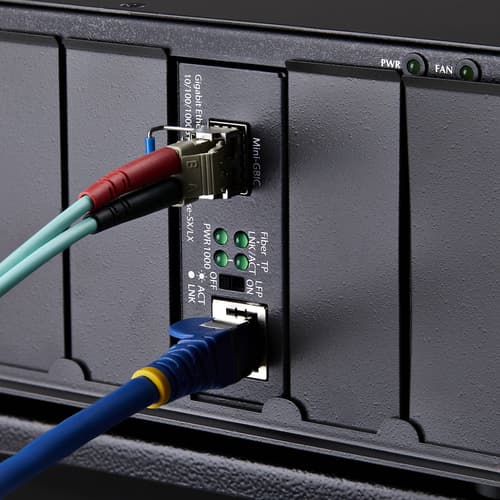

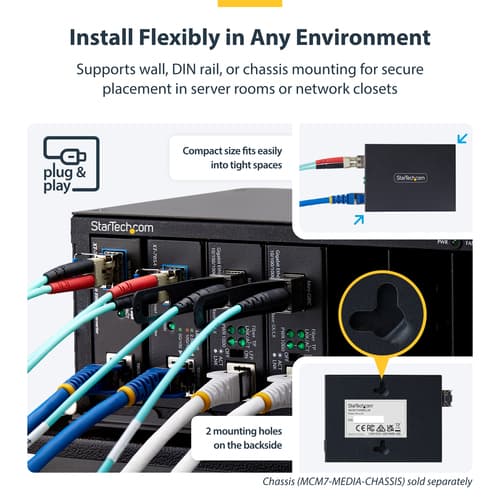

- <b>Install Flexibly in Any Environment</b>: Plug-and-play media converter supports wall, DIN rail, or chassis mounting for secure placement in server rooms or network closets; Includes a 5V DC power adapter for consistent operation
- <b>The IT Pro's Choice</b>: Engineered for edge, on-prem, and aerospace/defense applications requiring compliant connectivity; TAA certified and lab-tested for mission-critical reliability and backed by free lifetime 24/5 multilingual technical support
Similar Products
Specifications
Network
- Maximum data transfer rate
- 2000 Mbit/s Mbit/s
- Converter input interface
- 10Base-T, 100Base-TX, 1000Base-T
- Converter output interface
- 1000Base-LX
- Networking standards
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
- Ethernet interface type
- Fast Ethernet, Gigabit Ethernet
- Ethernet LAN data rates
- 10,100,1000 Mbit/s Mbit/s
- Jumbo frames support
- Yes
- Jumbo frames
- 9000
- Flow control support
- No
- Auto MDI/MDI-X
- Yes
- Auto-negotiation
- Yes
- Duplex system
- Full, Half
- Link Fault Pass-through (LFP)
- Yes
Performance
- Maximum transfer distance
- 20000 m m
- Wavelength
- 1310 nm nm
- Wavelength-division multiplexing (WDM)
- No
- Fiber mode structure
- Single-mode
- Mean time between failures (MTBF)
- 50000 h h
Features
- Internal
- No
- LED indicators
- Yes
- Product colour
- Black
- Housing material
- Metal
Ports & interfaces
- Fiber optic connector
- LC
- Connectivity technology
- Wired
- Ethernet LAN (RJ-45) ports
- 1
- Fiber ports quantity
- 1
- DC-in jack
- Yes
Power
- Input voltage
- 100 - 240 V V
- Input current
- 0.4 A A
- Output voltage
- 5 V V
- Output current
- 2 A A
- Power consumption (typical)
- 4.6 W W
- Power over Ethernet (PoE)
- No
- External power adapter
- Yes
Weight & dimensions
- Width
- 94 mm mm
- Depth
- 70 mm mm
- Height
- 94 mm mm
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C °C
- Storage temperature (T-T)
- -10 - 70 °C °C
- Operating relative humidity (H-H)
- 5 - 95% %

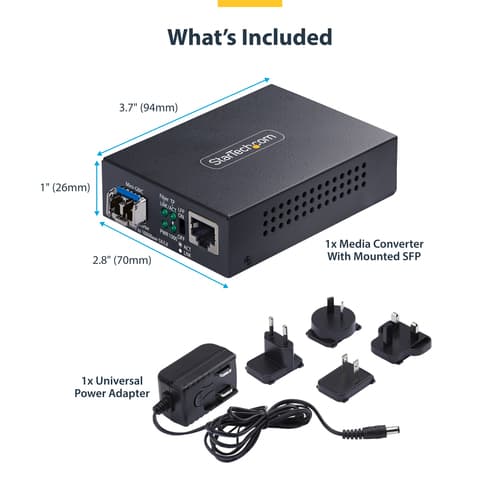

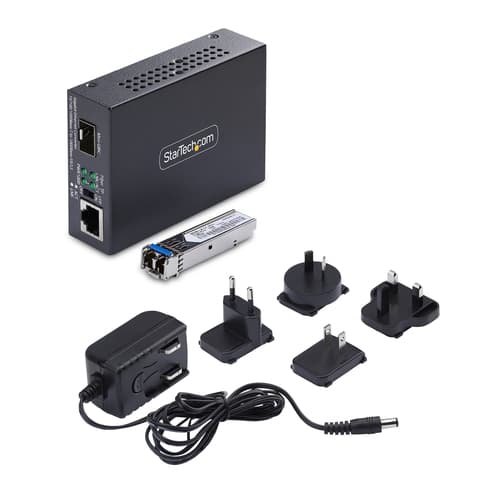

Packaging content
- AC adapter included
- Yes
- User guide
- Yes
Packaging data
- Package width
- 133 mm mm
- Package depth
- 280 mm mm
- Package height
- 66 mm mm
- Package weight
- 328 g g
Certificates
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Logistics data
- Master (outer) case width
- 360 mm mm
- Master (outer) case length
- 580 mm mm
- Master (outer) case height
- 305 mm mm
- Products per master (outer) case
- 20 pc(s) pc(s)
