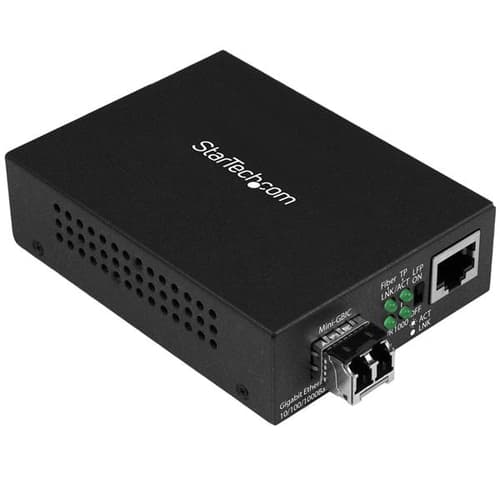

StarTech.com Multimode (MM) LC Fiber Media Converter for 10/100/1000 Network - 550m - Gigabit Ethernet - 850nm - with SFP Transceiver (MCM1110MMLC) - Fibre media converter - 1GbE - 10Base-T, 1000Base-LX, 1000Base-SX, 100Base-TX, 1000Base-T - RJ-45 / LC multi-mode - up to 550 m - 850 nm - for P/N: SVA5N3NEUA
Manuf P/N: MCM1110MMLC
APAXON#: 4462056
EAN: 0065030861465
StarTech.com Multimode (MM) LC Fiber Media Converter for 10/100/1000 Network - 550m - Gigabit Ethernet - 850nm - with SFP Transceiver (MCM1110MMLC) - Fibre media converter - 1GbE - 10Base-T, 1000Base-LX, 1000Base-SX, 100Base-TX, 1000Base-T - RJ-45 / LC multi-mode - up to 550 m - 850 nm - for P/N: SVA5N3NEUA
- Wired
- 1000 Mbit/s 550 m 850 nm
- Ethernet LAN (RJ-45) ports: 1 DC-in jack
- Multi-mode Fiber ports quantity: 1 LC
- Black
Stock61
Price £66.38
Quantity
|
Similar Products
Product Summary
StarTech.com Gigabit Ethernet Fiber Media Converter - Compact - 850nm MM LC - 550m
Extended Specification
Network
Maximum data transfer rate
1000 Mbit/s
Converter input interface
1000Base-T, 100Base-TX, 10Base-T
Converter output interface
1000Base-LX, 1000Base-SX
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Data transfer rate
1000 Mbit/s
Jumbo frames support
Yes
Auto MDI/MDI-X
Yes
Duplex system
Full
Performance
Maximum transfer distance
550 m
Wavelength
850 nm
Wavelength-division multiplexing (WDM)
No
Fiber mode structure
Multi-mode
Mean time between failures (MTBF)
50000 h
Features
Internal
No
LED indicators
Activity, Link, Power
Product colour
Black
Housing material
Steel
Ports & interfaces
Fiber optic connector
LC
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
DC-in jack
Yes
Power
Input voltage
100 - 240 V
Input current
1 A
Output voltage
5 V
Output current
2 A
Power over Ethernet (PoE)
No
External power adapter
Yes
Power plug type
Type N
Weight & dimensions
Width
70 mm
Depth
94 mm
Height
26 mm
Weight
201 g
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Packaging content
Manual
Yes
Packaging data
Package width
140 mm
Package depth
284 mm
Package height
68 mm
Package weight
556 g
Certificates
Compliance certificates
RoHS
Certification
CE, FCC, REACH, TAA
Logistics data
Harmonized System (HS) code
85176990
