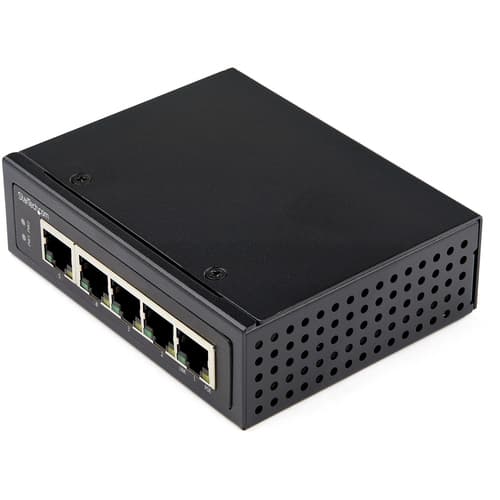

StarTech.com Industrial 5 Port Gigabit PoE Switch, 30W, Power Over Ethernet Switch, Hardened GbE PoE+ Unmanaged Switch, Rugged High Power Gigabit Network Switch IP-30 Housing/-40 C to 75 C - Gigabit Ethernet PoE (IESC1G50UP) - Switch - unmanaged - 4 x 10/100/1000 (PoE+) + 1 x 10/100/1000 - DIN rail mountable, wall-mountable - PoE+ (120 W) - DC power
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity: 5
- Power over Ethernet (PoE)
Similar Products
Overview
StarTech.com Industrial 5 Port Gigabit PoE Switch - 30W - Power Over Ethernet Switch - Hardened GbE PoE+ Unmanaged Switch - Rugged High Power Gigabit Network Switch IP-30/-40 C to 75 C
Specifications
Management features
- Switch type
- Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
Network
- Networking standards
- IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
- 10G support
- No
- Full duplex
- Yes
- Flow control support
- Yes
- Auto MDI/MDI-X
- Yes
Data transmission
- Jumbo frames support
- Yes
- Jumbo frames
- 9000
Protocols
- Supported network protocols
- CSMA/CD
Design
- Rack mounting
- No
- Product colour
- Black
- Housing material
- Steel
- LED indicators
- Yes
- International Protection (IP) code
- IP30
- Wall mountable
- Yes
- DIN rail mounting
- Yes
- Safety
- EN60950-1
Performance
- Maximum cable length
- 100 m
- Mean time between failures (MTBF)
- 538451 h
Power
- DC input voltage
- 48 - 56 V
- Surge protection
- Yes
- Surge protection voltage
- 2 kV
- Power plug type
- Type N
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet plus (PoE+) ports quantity
- 5
- Power over Ethernet (PoE) power per port
- 30 W
- Total Power over Ethernet (PoE) budget
- 120 W
Other features
- Terminal block port
- Yes
Operational conditions
- Operating temperature (T-T)
- -40 - 75 °C
- Storage temperature (T-T)
- -40 - 85 °C
- Operating relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 81.5 mm
- Depth
- 104 mm
- Height
- 32 mm
- Weight
- 150.6 g
Packaging content
- Quick start guide
- Yes
Packaging data
- Terminal block included
- Yes
- Package width
- 211 mm
- Package depth
- 162 mm
- Package height
- 64 mm
- Package weight
- 392.6 g
Certificates
- Certification
- CE, FCC, RoHS, UL
Logistics data
- Master (outer) case width
- 355 mm
- Master (outer) case length
- 345 mm
- Master (outer) case height
- 225 mm
- Harmonized System (HS) code
- 85176990
- Products per master (outer) case
- 10 pc(s)
