TP-Link CPE210 - radio access point - Wi-Fi

Manuf P/N: CPE210

APAXON#: 3260545

EAN: 1210002611435

TP-link 2.4GHz 300Mbps 9dBi Outdoor CPE with built-in MIMO antenna
CPE210
Weight: 0.84 KG
  • Built-in 9dBi 2x2 dual-polarized directional MIMO antenna
  • Adjustable transmission power from 0 to 27dBm/500mw
  • System-level optimizations for more than 5km long range wireless transmission
  • TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
  • Centralized Management System – Pharos Control
  • AP / Client / AP Router / AP Client Router (WISP) operation modes
  • Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

Similar Products

Compare All

TP-LINK’s 2.4GHz 300Mbps 9dBi Outdoor CPE, the CPE210 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE210 an ideal choice for both business and home users.

Features

2.4 GHz
Yes
5 GHz
No
Maximum data transfer rate
300 Mbit/s Mbit/s
Maximum data transfer rate (2.4 GHz)
300 Mbit/s Mbit/s
Frequency band
2.4 - 2.483 GHz GHz
Bandwidth
2.4 GHz GHz
Networking standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
MIMO
Yes
MIMO type
Multi User MIMO
Maximum outdoor range
5000 m m
Receiver sensitivity
802.11b: 11M: -95dBm, 5.5M: -96dBm, 2M: -96dBm, 1M: -96dBm -802.11g: 54M: -79dBm, 48M: -80dBm, 36M: -84dBm, 6-24M: -88dBm 802.11n: MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm, MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm, MCS9: -93dBm, MCS8: -96dBm, MCS7: -76dBm, MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm, MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm, MCS0: -96dBm

Security

Security algorithms
64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering
Yes

Protocols

Management protocols
TDMA

Management features

Web-based management
Yes
Management platform
Pharos Control

Ports & interfaces

Ethernet LAN (RJ-45) ports
1
USB 2.0 ports quantity
0

Power

Power over Ethernet (PoE)
Yes
AC input voltage
100 - 240 V V
AC input frequency
50 - 60 Hz Hz
Input current
0.8 A A
Output voltage
24 V V
Output current
1 A A
Power consumption (max)
10.5 W W

Design

Placement
Wall
Product colour
White
International Protection (IP) code
IPX5
Reset button
Yes
LED indicators
Yes

Antenna

Antenna type
Internal
Antenna features
Integrated antenna
Antennas quantity
1
Antenna gain level (max)
9 dBi dBi

Performance

Built-in processor
Yes
Processor model
Qualcomm Atheros
Processor frequency
560 MHz MHz
Flash memory
8 MB MB
Internal memory
64 MB MB
Compatible operating systems
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.

Certificates

Certification
- FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS, IPX5

Weight & dimensions

Width
224 mm mm
Depth
79 mm mm
Height
60 mm mm

Packaging content

Cables included
AC
Mounting kit
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90% %
Operating temperature (T-T)
-30 - 70 °C °C
Storage temperature (T-T)
-40 - 70 °C °C
Storage relative humidity (H-H)
5 - 95% %

Logistics data

Harmonized System (HS) code
85176990

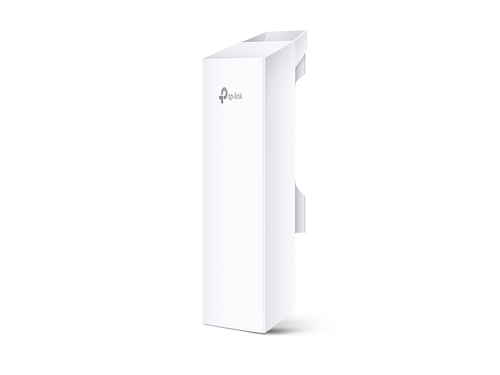

TP-Link CPE210 - radio access point - Wi-Fi — image 1
